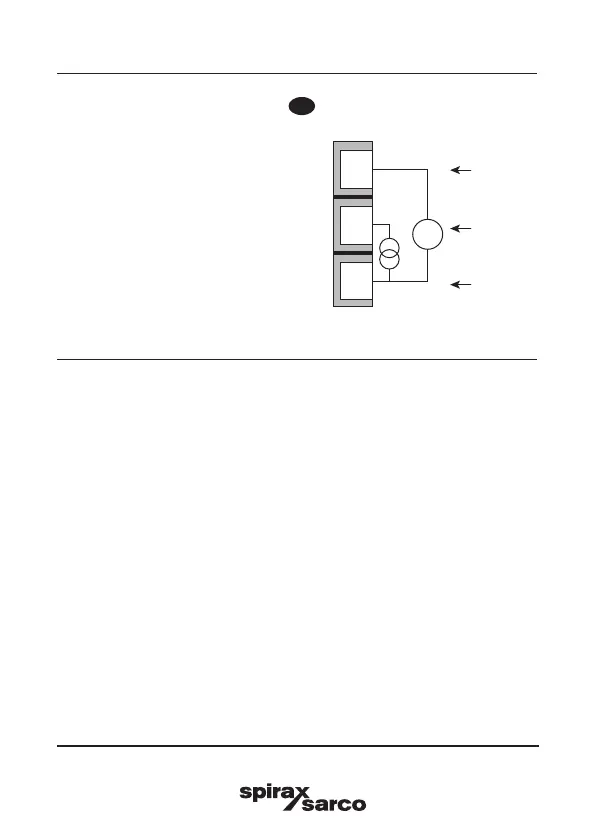

3.4.4.14 Remote Set Point input
11
SX90 only
- There are two inputs; 4 – 20 mA
(terminals RC and R) and 0-10 Volts
(terminals RC and RV).
- It is not necessary to t an external
burden resistor to the 4 – 20 mA input.
- C = Common.
- Isolated 240 Vac.
