Base Unit User Guide Issue 1 Tech-X Flex™
1-12 1: Introduction
Intro
Wi-Fi
10/100
System
IP/Video
Specs

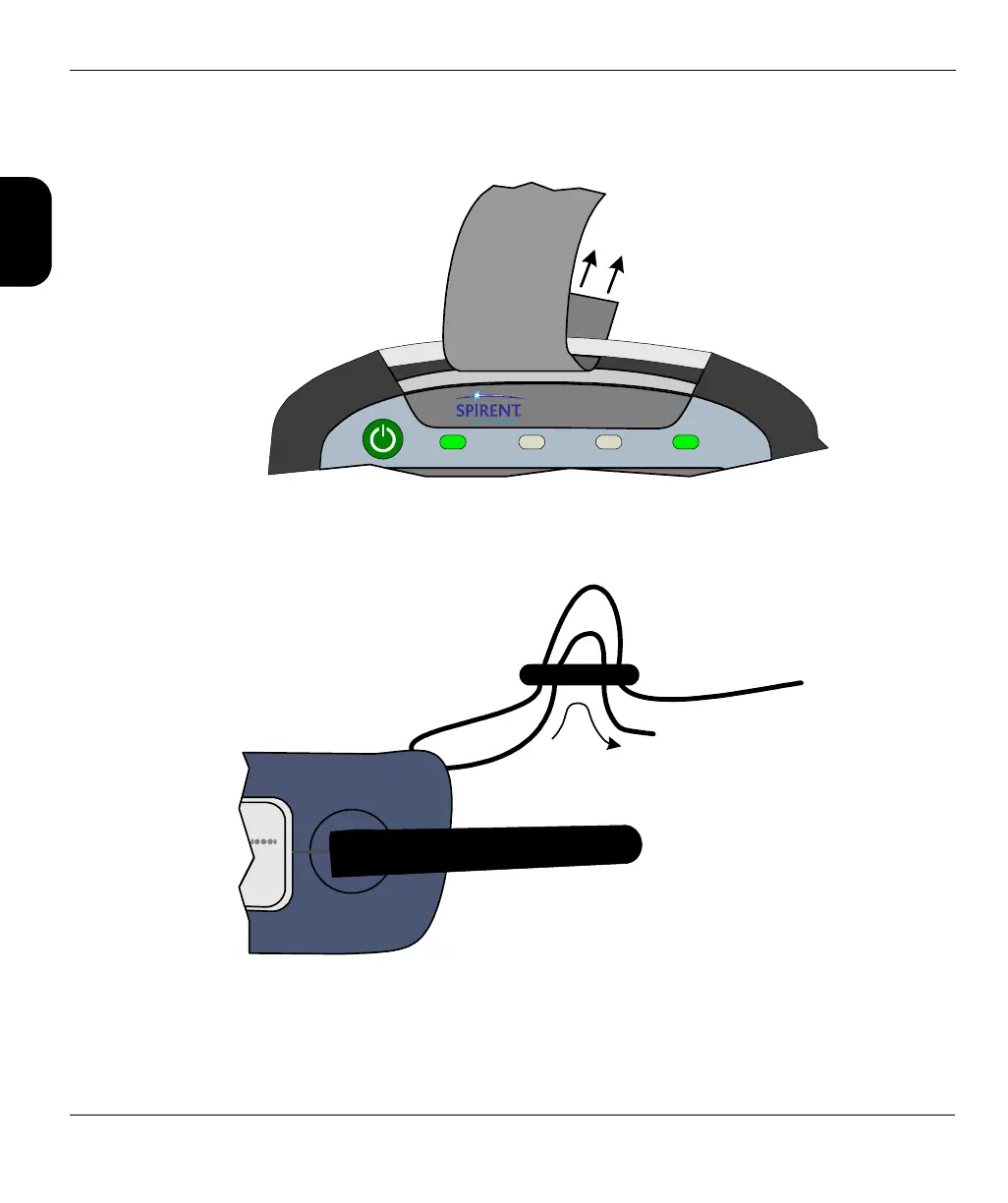

Figure 1-7 Sliding the open strap end through the strap mount
Next, feed the open end through the bottom of the buckle as shown in the following figure:
Figure 1-8 Feeding the strap through the buckle
SYNC DATA CHARGEERRORS
Tech-X Flex
(To hook)
Strap end
2
Strap end
(To hook)
Buckle
