Tech-X Flex™ Base Unit User Guide Issue 1
3: 10/100 Testing Menu 3-1
3: 10/100 Testing Menu
With the 10/100 testing menu, the unit is able to join a 10/100 Ethernet link and perform the following
functions and tests:
• IP address retrieval/assignment (See IP Network Setup on page 5-1)
• IP ping (See Ping on page 5-4)
• Traceroute (See Traceroute on page 5-5)
• Internet web page request (See Web Browser on page 5-6)
• IP video testing (See IP Video testing on page 5-7)
• Ethernet bridging and passive testing (See Passive testing on page 3-4)

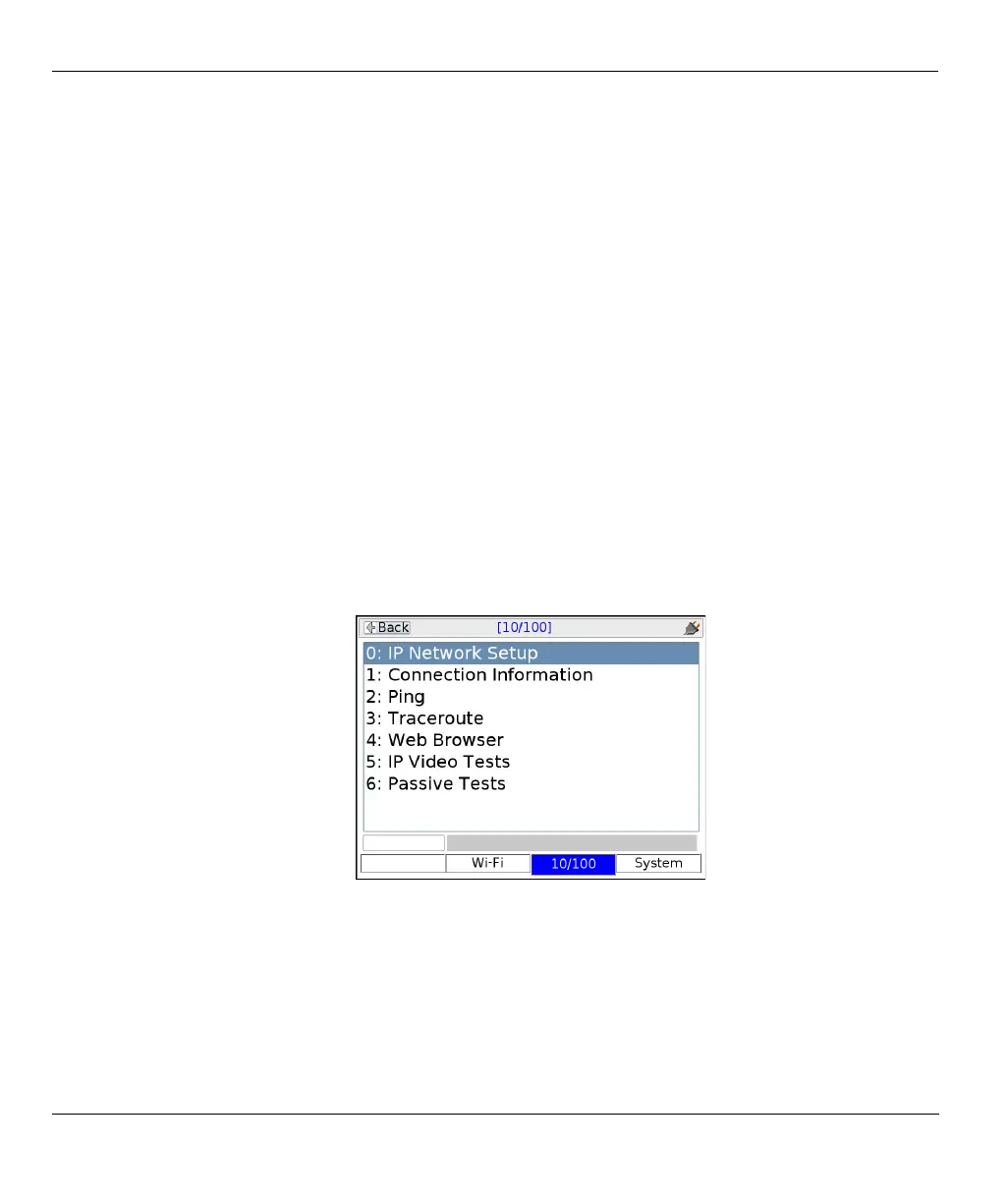

Figure 3-1 10/100 main menu
NOTE: On the unit, you can use either 10/100 port for single-ended tests such as ping and traceroute.
For more information, see About the 10/100 ports and connections on page 3-2.
