Tech-X Flex™ Base Unit User Guide Issue 1
1: Introduction 1-11
Intro
Wi-Fi
10/100
System
IP/Video
Specs

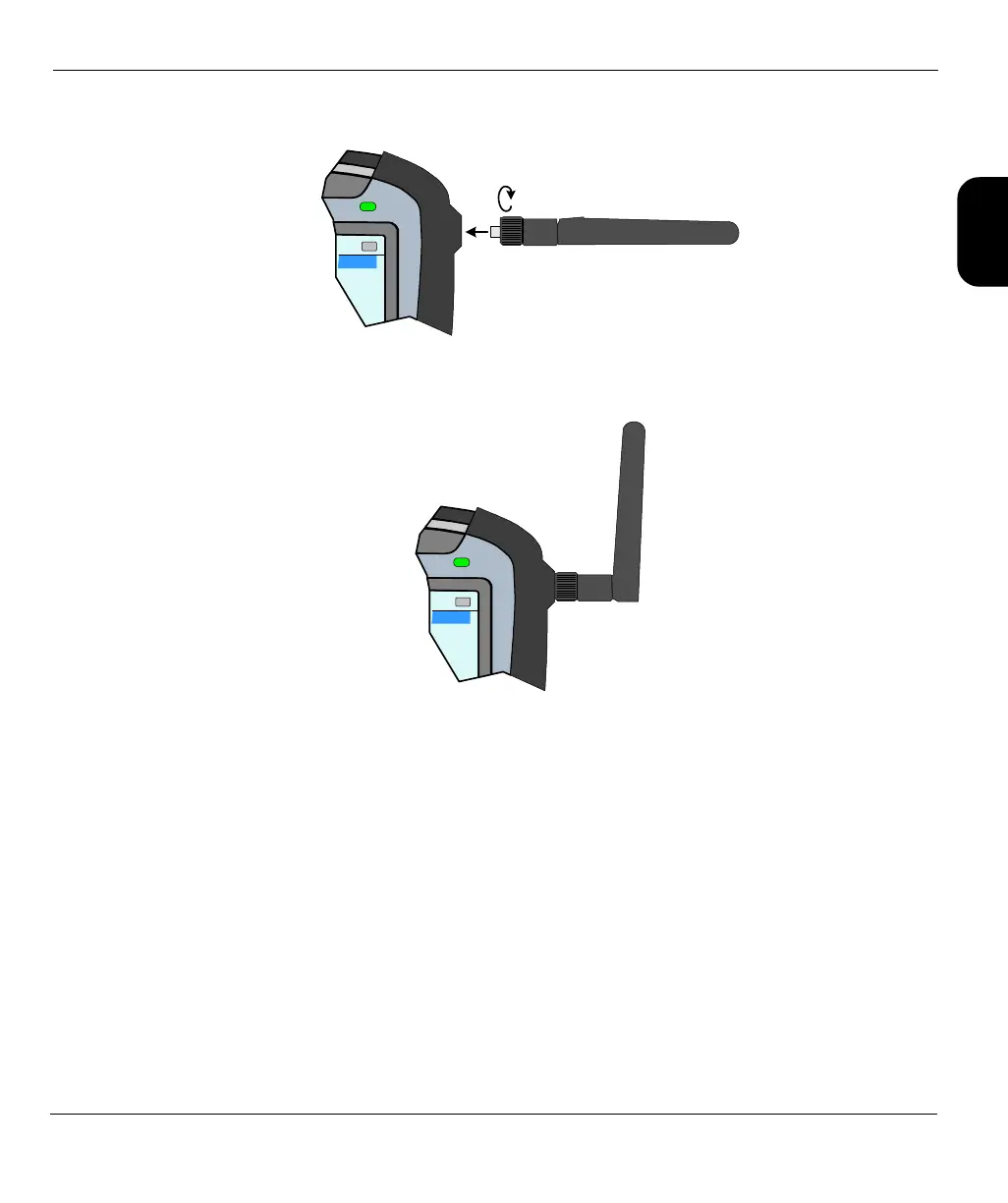

Figure 1-5 Attaching the antenna
Figure 1-6 Antenna positioned for typical use, following attachment
1.3.4 Attaching the strap
A strap with a hook is provided to hang the unit while working. To attach the strap, first make sure that the
buckle is facing up, then slide the open end around and through the strap mount at the top of the unit:
