Section-5 Miscellaneous Specifications & Reference
5.1. Fastener Torque Guidelines
Check all nuts, bolts, and screws regularly for tightness.
Replace nut/bolt pairs with the same grade or higher than
that of the original nut/bolt. The nut must be the same
grade or higher than the bolt it is paired with. Nuts, bolts,
and screws of a higher grade should be tightened with the
same torque as the original being replaced. Make sure the
threads of the fastener are clean and that they engage
properly to prevent damage to the fastener when tighten-
ing.
5.1.1. Fastener Torque Chart (SAE):
5.1.2. Fastener Torque Chart (Metric):

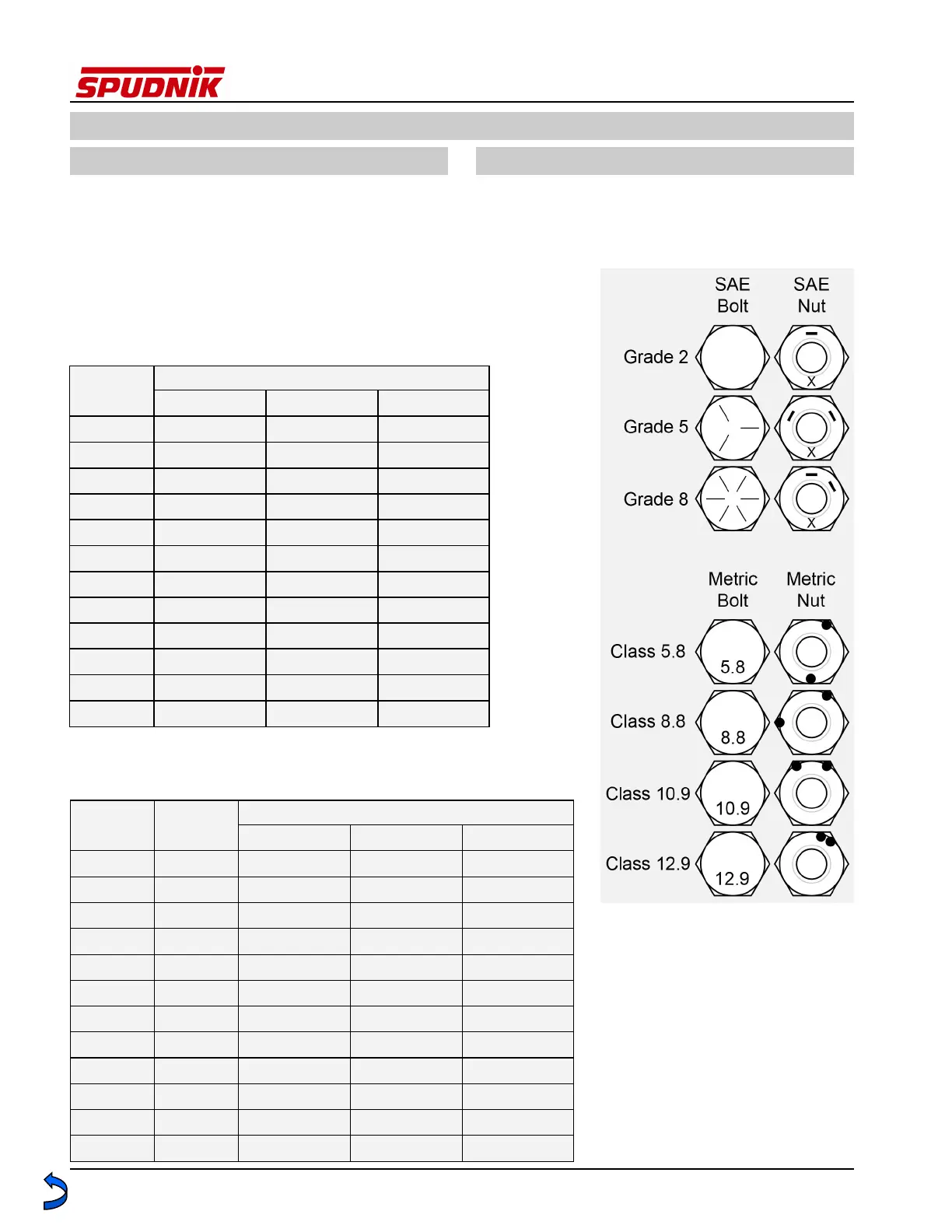

5.1.3. Fastener Grade/Class Marking:
Thread
Size
Torque values = ft lb [NM]
Grade 2 Grade 5 Grade 8
1/4-20 6 [8] 9 [12] 12 [16]
5/16”-18 8 [10] 13 [17] 18 [24]
3/8”-16 15 [20] 23 [31] 33 [44]
7/16”-14 25 [33] 37 [50] 52 [70]
1/2”-13 35 [47] 57 [77] 80 [108]
9/16”-12 50 [67] 80 [108] 115 [156]
5/8”-11 70 [95] 110 [149] 160 [217]
3/4”-10 130 [176] 200 [271] 280 [379]
7/8”-9 125 [169] 320 [433] 450 [610]
1”-8 190 [257] 480 [650] 675 [915]
1-1/8”-7 265 [359] 600 [813] 960 [1301]
1-1/4”-7 375 [508] 840 [1138] 1360 [1844]
Bolt
Diameter
Wrench
Size
Torque values = ft lb [NM]
Class 8.8 Class 10.9 Class 12.9
M6 10 7 [9.5] 10 [14] 12 [16.5]
M8 13 17 [23] 25 [34] 29.5 [40]
M10 17 34 [46] 50 [68] 58 [79]
M12 19 58 [79] 86 [117] 99.5 [135]
M14 22 92 [125] 136.5 [185] 158.5 [215]
M16 24 144 [195] 206.5 [280] 243 [330]
M18 27 206.5 [280] 288 [390] 339 [460]
M20 30 288 [390] 413 [560] 479.5 [650]
M22 32 391 [530] 553 [750] 649 [880]
M24 36 494 [670] 708 [960] 826 [1120]
M27 41 737.5 [1000] 1032.5 [1400] 1217 [1650]
M30 46 996 [1350] 1401 [1900] 1659.5 [2250]
1. Bolt head markings, and nut surface markings, are
useful in confirming the grade/class of replacement
fasteners. (See Figure 4)
5.1. Fastener Torque Guidelines (Cont.)
Figure 4
