SPX FLOW W63 - Maintenance-Free Actuators; A, B, and C Size Air-To-Raise, Maintenance-Free; A, B, and C Size Air-To-Lower, Maintenance-Free

Operation Waukesha Cherry-Burrell Brand W60/W80 Valves
Page 16 95-03022 08/2018
Maintenance-Free Actuators
A, B, and C Size Air-to-Raise, Maintenance-Free
• A, B and C Size Air Pressure Range = 87-120 psi (6-8 bar)
• 1/8" BSPP x 1/4" OD Thread
A, B, and C Size Air-to-Lower, Maintenance-Free
• A, B and C Size Air Pressure Range = 87-120 psi (6-8 bar)
• 1/8" BSPP x 1/4" OD Thread
NOTE: The actuator shown in Figure 9 is in air-to-raise configura-
tion; if it is configured for air-to-lower, port A becomes Air In and
port B becomes Vent.
A. Vent
B. Air In

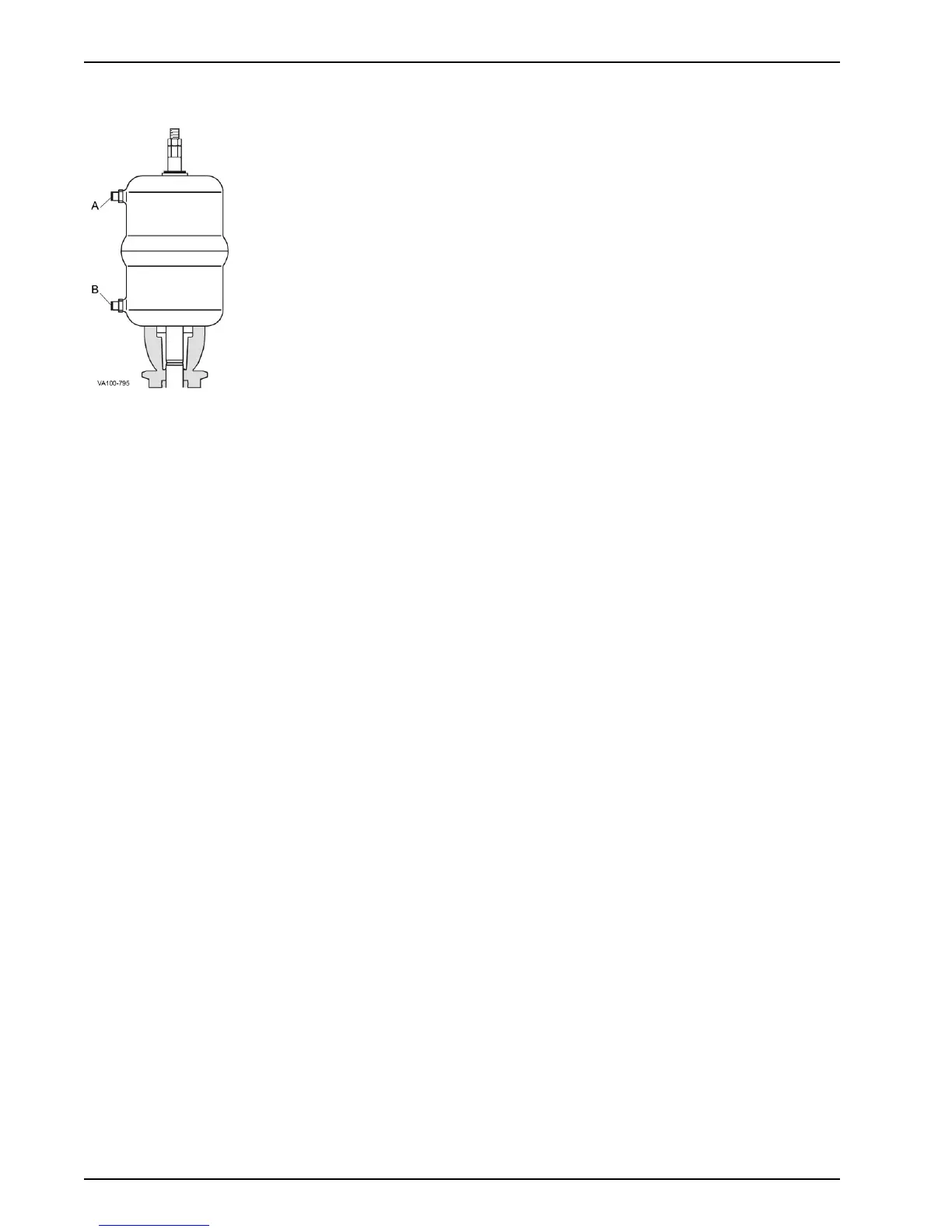

Figure 9: A, B and C Size Air-to-Raise,
Maintenance-Free
