Maintenance Waukesha Cherry-Burrell Brand W60/W80 Valves
Page 46 95-03022 08/2018
Reversing the Spring
Action on the
Maintenance-Free Actuator
1. Remove the control top (if applicable).
2. Loosen and remove the retaining nut and spacer from the
stem on the top of the actuator.
3. Loosen and remove the bolts on the yoke that are threaded
into the bottom of the actuator.
4. Lift the actuator cylinder from the yoke/stem.
5. Flip the actuator cylinder over and re-insert the stem into the
actuator.
6. Re-install the yoke bolts on the bottom of the actuator.
7. Install the spacer and retaining nut on top of the actuator.
8. Install the control top (if applicable).

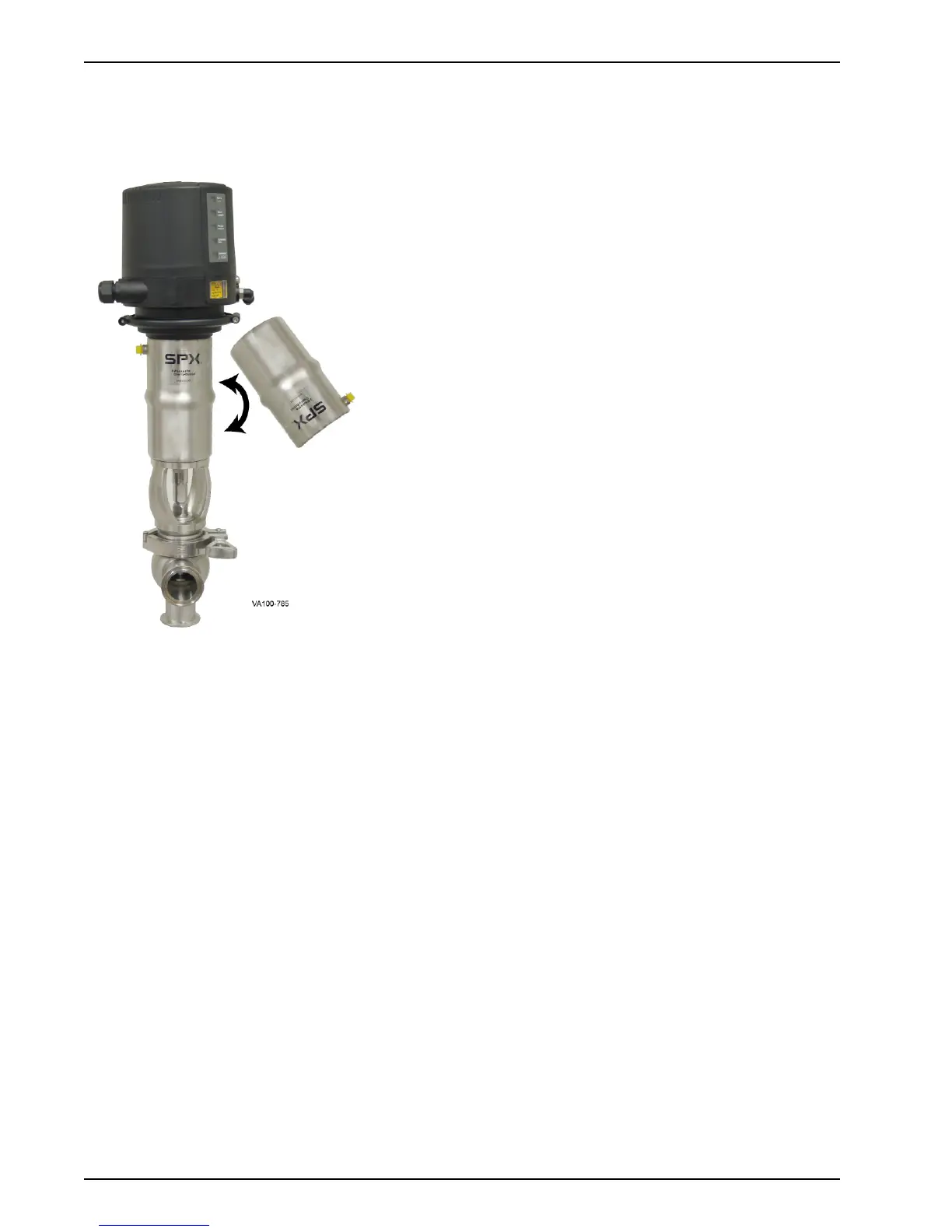

Figure 43: Maintenance-Free Actuator -
reversing spring action
