SPX FLOW W63 - Maintenance Free Actuator

Parts Lists Waukesha Cherry-Burrell Brand W60/W80 Valves
Page 80 95-03022 08/2018
Maintenance Free Actuator
1
1
1b
1a
1c
3
2

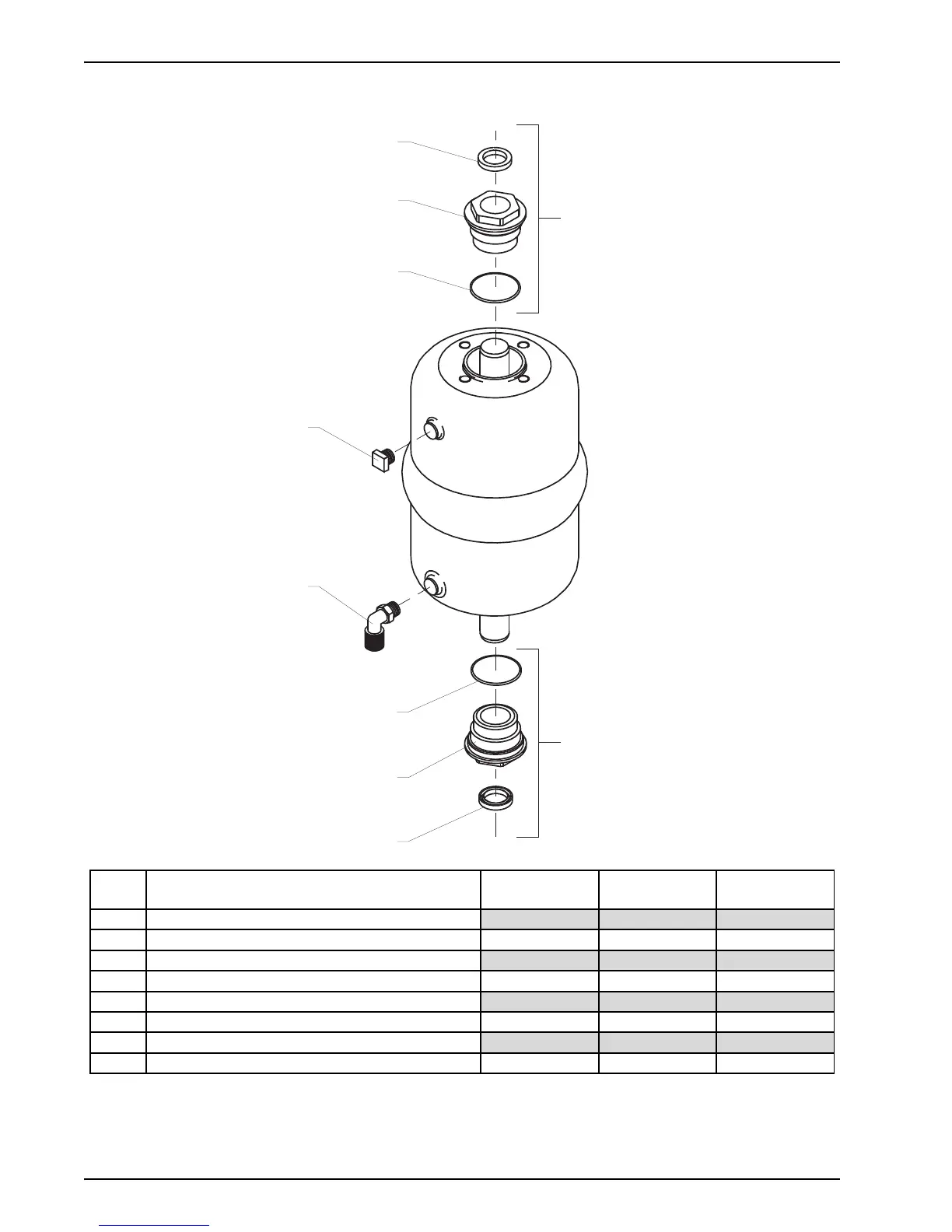

VA100-772
1c
1a
1b
Item # Part Description
A Size
(74 mm)
B Size
(110 mm)
C Size
(165 mm)
- Complete Actuator Assembly - Air to Spring * M18HP816307 M18HP816308 M18HP816309
- Complete Actuator Assembly - Air to Air ** M18AP818163 M18AP818164 M18AP818165
1 Seal Bearing (includes 1a, 1b, and 1c below) H204256 H204256 H204256
1a Seal Screw H170200 H170200 H170200
1b V-Seal H171060 H171060 H171060
1c O-Ring H171059 H171059 H171059
2 Air Fitting M568SS066A M568SS066A M568SS066A
3 Vent Plug H16218 H16218 H16218
PL5027-CH186
Notes
* Air to Spring actuator requires (2) Seal Bearings, (1) Air Fitting and (1) Vent Plug
** Air to Air actuator requires (2) Seal Bearings and (2) Air Fittings
