33
C
D
E
F
P
R
BA
C
JK
N
M
L
B
C
D
E
F
P
BA
C
JK
N
ML
B
B1
B2
B3
S
R
Q
A.0100.301 – IM-FIP/08.00 EN (02/2014)

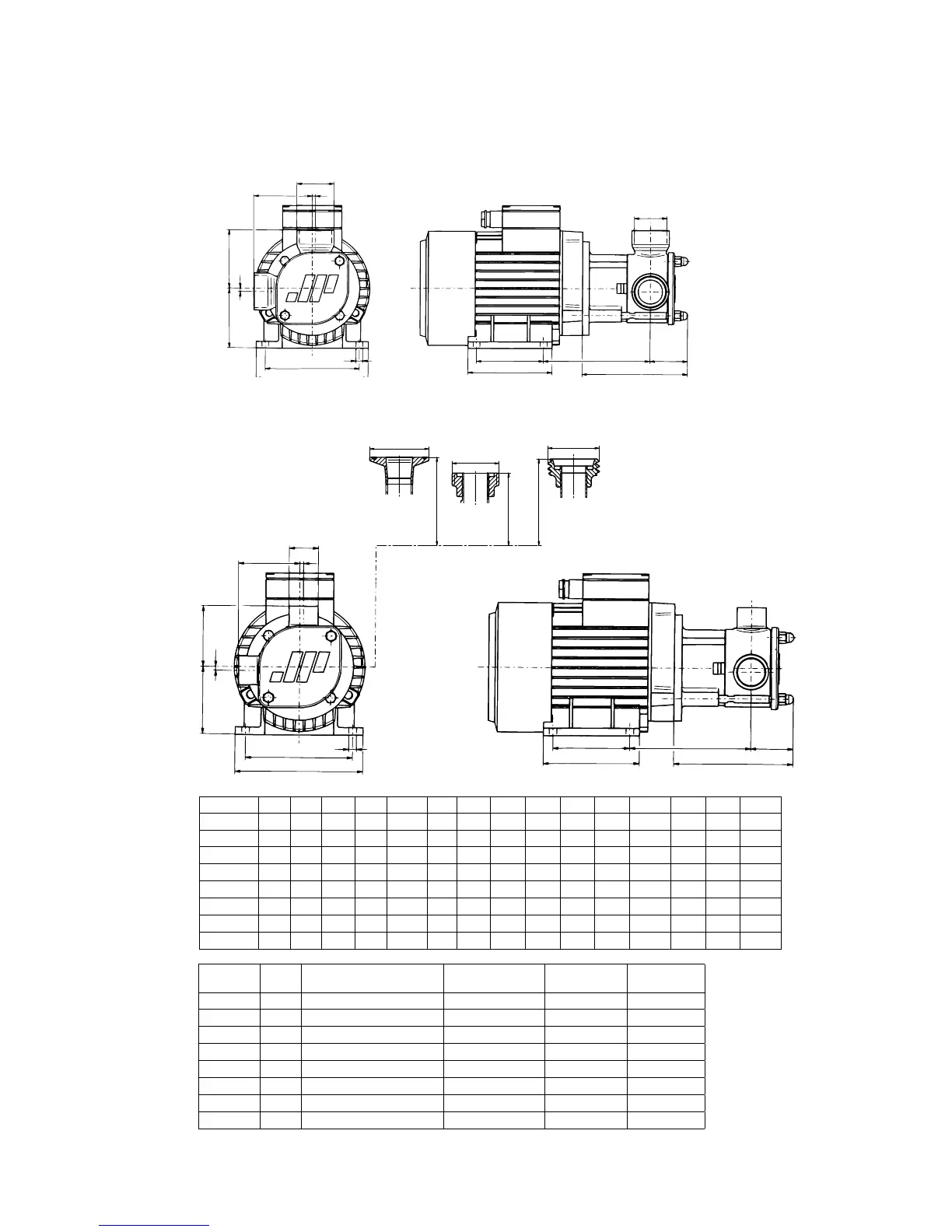

6.2 FIP20S-FIP65S – Flange mounted
A B B1 B2 B3 C D E F J K L M N P
FIP20SI 80 70 2.5 ø10 125 150 100 123 114 126 41 ø31.8
FIP20SH 80 62 62 74 75.5 2.5 ø10 125 150 100 123 114 126 41 ø22.2
FIP25SI 80 76 2 ø10 125 150 100 133 133 126 50 ø38
FIP25SH 80 62 62 76 82 2 ø10 125 150 100 133 133 126 50 ø25
FIP40SI 90 87 5 ø10 140 167 100 157 155.5 127 55 ø55
FIP40SH 90 80 80 94 99 5 ø10 140 167 100 157 155.5 127 55 ø38
FIP50SI 100 110 6.5 ø12 160 188 140 208 214 167 69 ø67
FIP50SH 100 110 110 124 121.5 6.5 ø12 160 188 140 208 214 167 69 ø51
Stainless Steel Industrial Version – Flange
Stainless Steel Hygienic Version – Flange
Q R S IEC motor size
Weight, kg
pump+ motor
FIP20SI BSP 3/4" / NPTF 3/4" 80 10.5
FIP20SH ø50.5 25/SMS1145 NW20/DIN11851 80 10.5
FIP25SI BSP 1" / NPTF 1" 80 11.8
FIP25SH ø50.5 25/SMS1145 NW25/DIN11851 80 11.8
FIP40SI BSP 1.1/2" / NPTF 1.1/2" 90 16.7
FIP40SH ø64 38/SMS1145 NW40/DIN11851 90 16.7
FIP50SI BSP 2" / NPTF 2" 100 29.5
FIP50SH ø64 51/SMS1145 NW50/DIN11851 100 29.5
