SPX FIP - series User Manual

34
C
D
E
F
B
C
A
JH
GK
M
R
L
B
P
C
D
E
F
R
B1
B1
B
C
A
U
U
SV
TT
JHGK
N
M
L
B
P
C
D
E
F
B
C
A
U
U
V
TT
JHGK
M
L
B
P
B1
B2
B3
S
R
Q
A.0100.301 – IM-FIP/08.00 EN (02/2014)

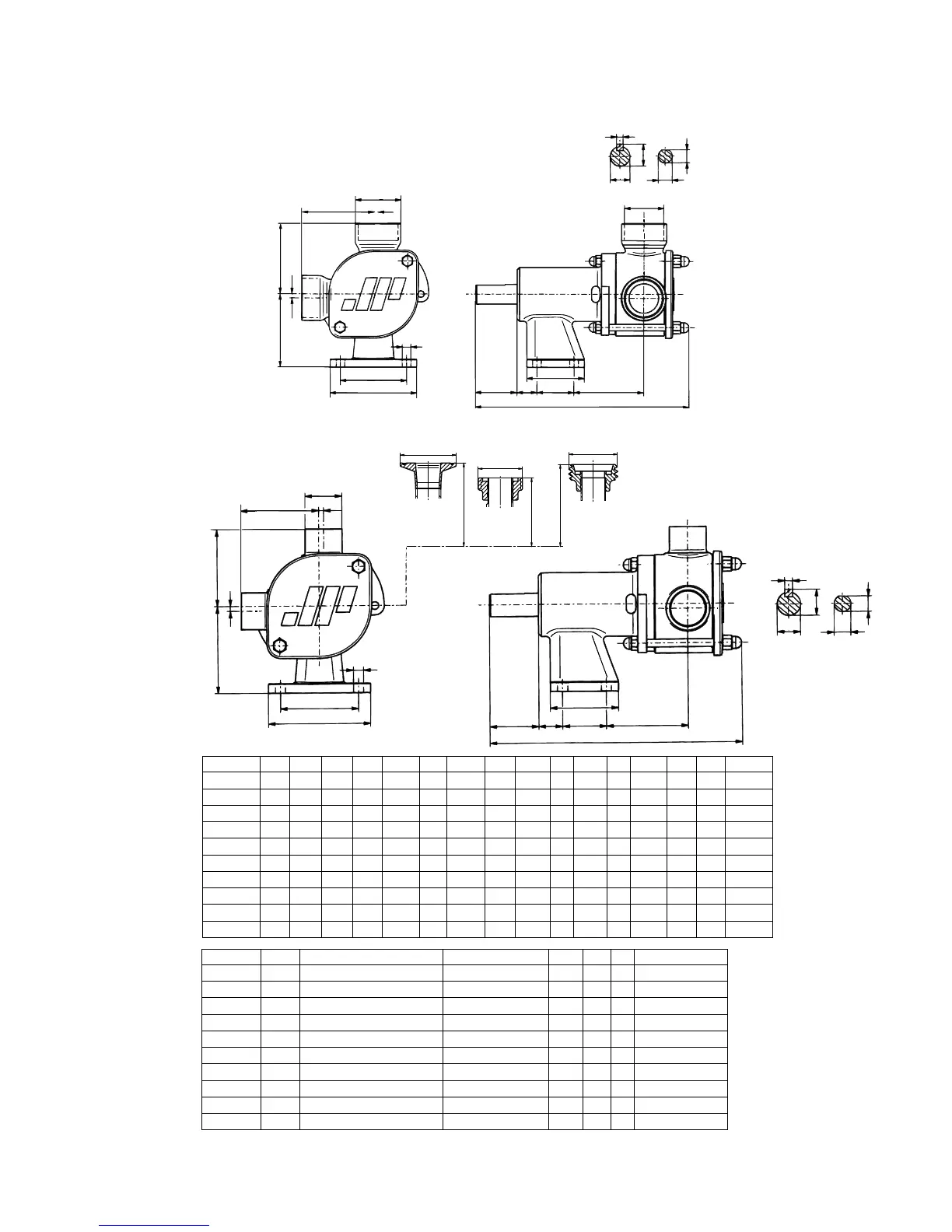

6.3 FIP20S-FIP65S – Pedestal mounted
A B B1 B2 B3 C D E F G H J K L M P
FIP20SI 80 70 – – – 2.5 ø9 70 90 40 41 30 48 200 50 ø31.8
FIP20SH 80 62 62 74 75.5 2.5 ø9 70 90 40 41 30 48 200 50 ø22.2
FIP25SI 80 76 – – – 2 ø9 70 90 40 41 30 58 219 50 ø38
FIP25SH 80 62 62 76 82 2 ø9 70 90 40 41 30 58 219 50 ø25
FIP40SI 90 87 – – – 5 ø10.5 80 105 50 24.5 45 84 259 70 ø55
FIP40SH 90 80 80 94 99 5 ø10.5 80 105 50 24.5 45 84 259 70 ø38
FIP50SI 100 110 – – – 6.5 ø11 75 105 70 25 75 91.5 331 105 ø67
FIP50SH 100 110 110 124 121.5 6.5 ø11 75 105 70 25 75 91.5 331 105 ø51
FIP65SI 112 115 – – – 10 ø11 100 130 70 45 70 97. 5 357 100 ø84
FIP65SH 112 115 115 130 126 10 ø11 100 130 70 45 70 97. 5 357 100 ø63.5
Stainless Steel Hygienic Version – Pedestal
Stainless Steel Industrial Version – Pedestal
Q R S T U V Weight, kg - pump
FIP20SI – BSP 3/4" / NPTF 3/4" – ø17 16 – 2.4
FIP20SH ø50.5 25/SMS1145 NW20/DIN11851 ø17 16 – 2.4
FIP25SI – BSP 1" / NPTF 1" – ø17 16 – 2.7
FIP25SH ø50.5 25/SMS1145 NW25/DIN11851 ø17 16 – 2.7
FIP40SI – BSP 1.1/2" / NPTF 1.1/2" – ø24 27 8 5
FIP40SH ø64 38/SMS1145 NW40/DIN11851 ø24 27 8 5
FIP50SI – BSP 2" / 2" – ø28 31 8 9
FIP50SH ø64 51/SMS1145 NW50/DIN11851 ø28 31 8 9
FIP65SI – BSP 2.1/2" / NPTF 2.1/2" – ø28 31 8 13.5
FIP65SH ø77.5 63.5/SMS1145 NW65/DIN11851 ø28 31 8 14.2
