SRAM G2 ULTIMATE User Manual

11Caliper Brake Pad Removal

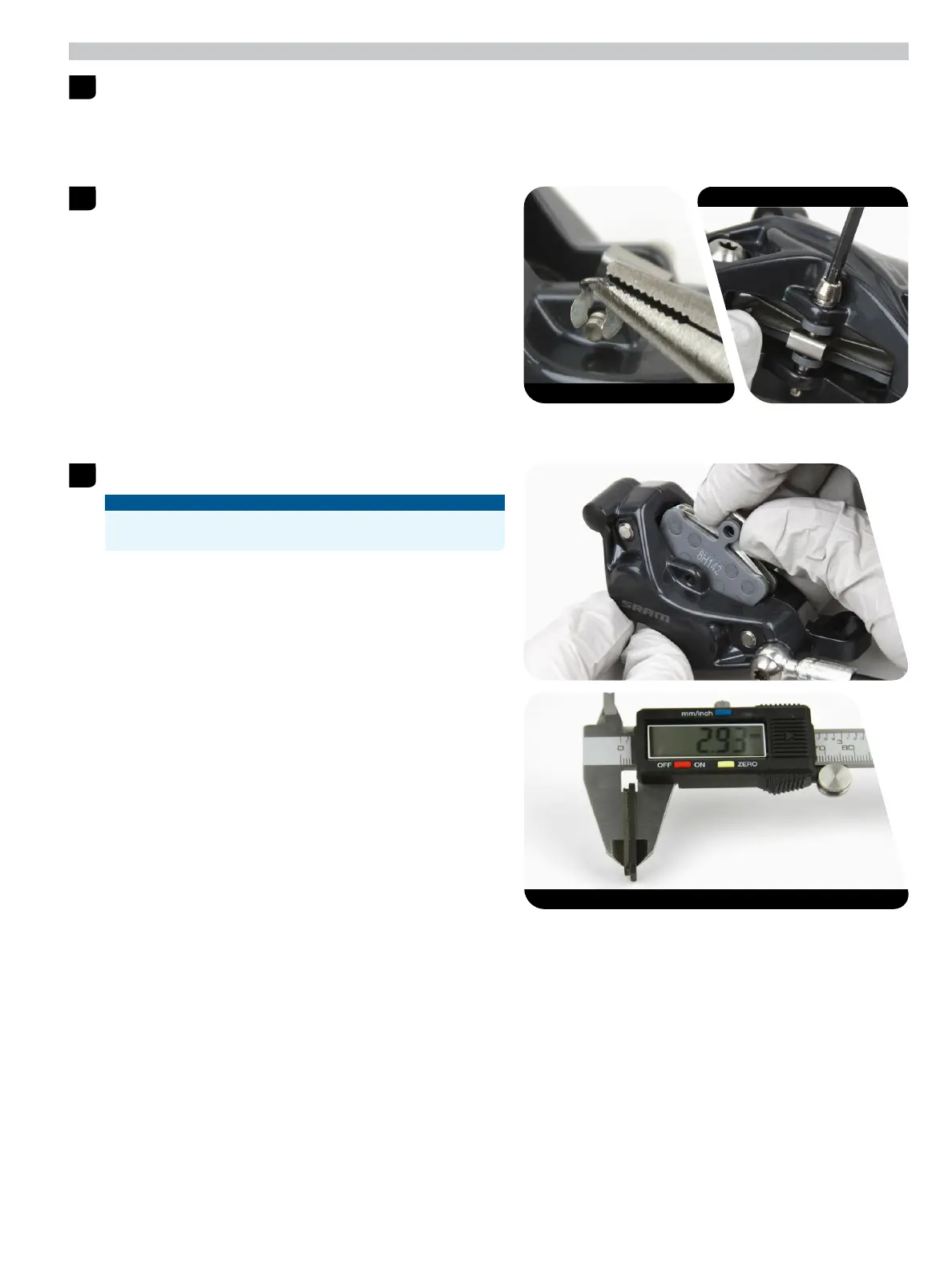

Caliper Brake Pad Removal
Remove the brake caliper from the fork or frame.
Remove the caliper mounting bracket and hardware from the caliper
then set them aside in the order that they were removed.
Use needle nose pliers to remove the E-clip from the pad retention
bolt.
Remove the pad retention bolt from the caliper.
Remove the brake pads and pad h-spring from the caliper.
NOTICE
Brake pads must be replaced if the total thickness of the backing
plate and pad friction material is less than 3 mm.
1
2
Needle nose pliers 20 mm or 15 mm Thru Axle
2.5 mm QR
3
Digital Caliper 2.7-3.2 N•m (24-28 in-lb) 22 mm

SRAM G2 ULTIMATE Specifications

General

Type	Hydraulic Disc Brake
Caliper Design	4-piston
Adjustment	Tool-free Reach Adjust, Contact Point Adjustment
Fluid	DOT 5.1
Caliper Material	Forged Aluminum
Rotor Compatibility	200mm, 180mm, 160mm
Intended Use	Trail
Brake Pads	Organic
