SRAM G2 ULTIMATE - Piston Assembly Removal

26Piston Assembly Removal
Piston Assembly Removal

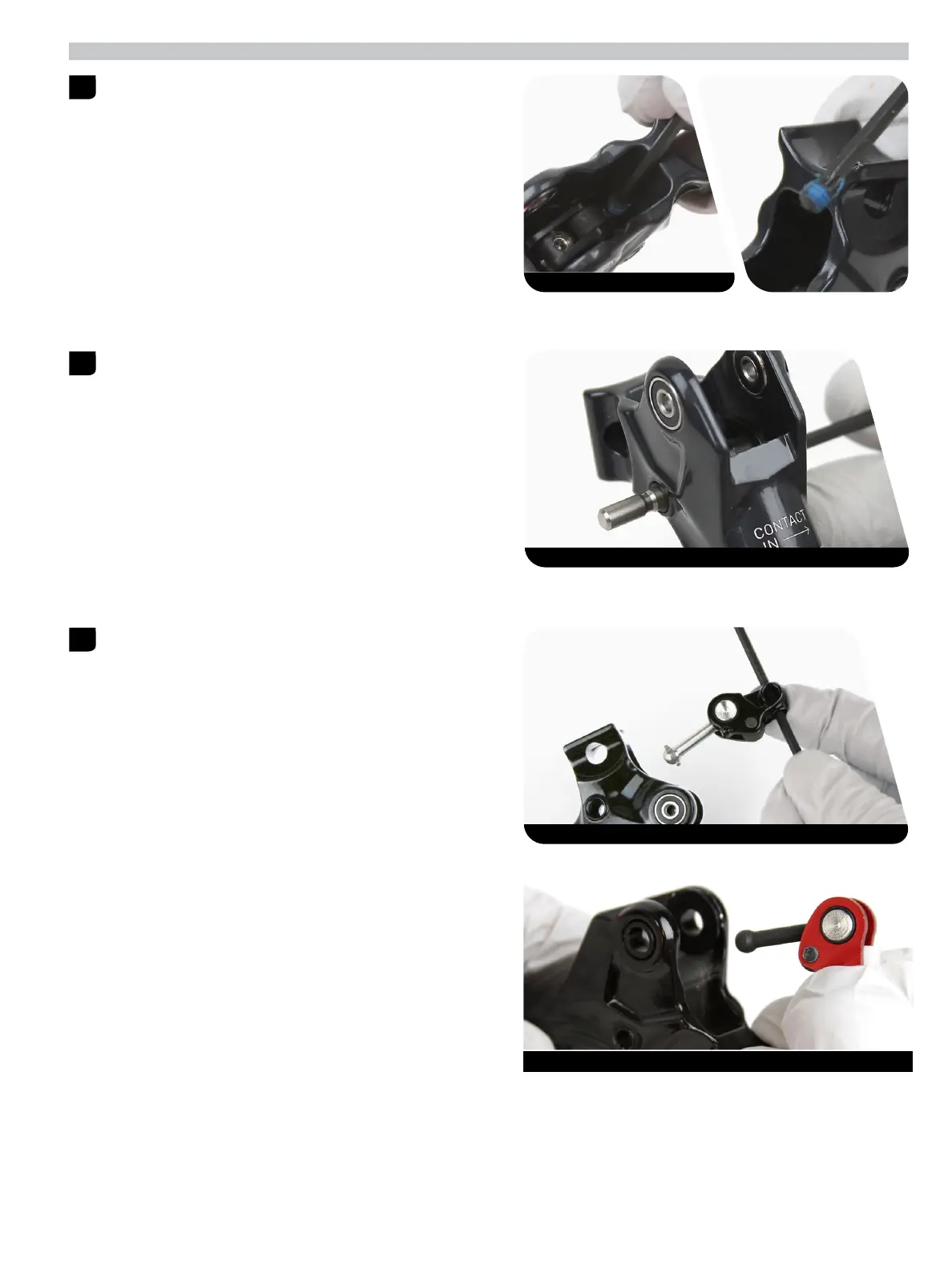

Use a T8 TORX wrench to remove the SwingLink pinch bolt.
Note: The red SwingLink does not have a pinch bolt.
Use a T8 TORX wrench to push the SwingLink pivot pin out of the lever
body.
Black SwingLink: Use a T8 TORX wrench to remove the SwingLink.
Red SwingLink: Remove the SwingLink by hand.
1
T8 TORX 20 mm or 15 mm Thru Axle
2
T8 15 N•m (133 in-lb) 22 mm
3
T8 15 N•m (133 in-lb) 22 mm
