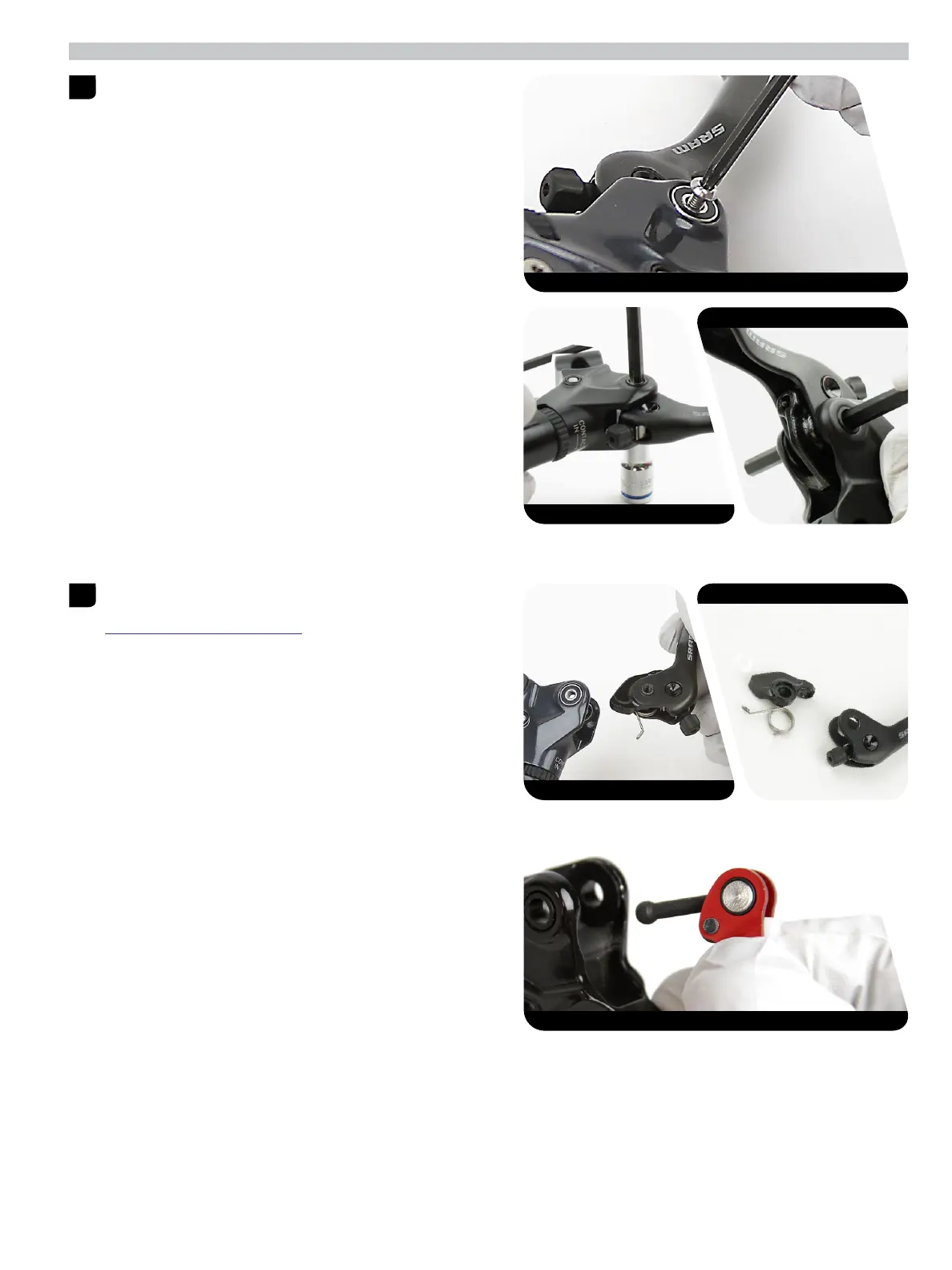

G2 Ultimate: Use a T10 TORX wrench to remove the lever pivot bolts.
G2 RSC: Place the lever pivot on top of a 6 mm socket. Tap a 4 mm hex
wrench with a hammer to remove the pivot pin.
Remove the lever blade.
G2 Ultimate: for bearing replacement go to
G2 Lever Bearing Service, page 37.
If bearing service is not required, continue with Piston Assembly
Removal, page 24.
G2 RSC: The reach adjust assembly will separate into four pieces when
removed from the lever body: SwingLink cam, lever bias spring, main
pivot clip, and lever assembly.
Note: Some versions of the G2 Ultimate and G2 RSC levers have a
red SwingLink. The service procedures are the same as with the black
SwingLink unless otherwise noted.
1
G2 Ultimate T10 15 N•m (133 in-lb) 22 mm
G2 RSC 6 mm socket
G2 RSC 4 mm
2
G2 Ultimate
G2 RSC
Red SwingLink 15 N•m (133 in-lb) 22 mm
