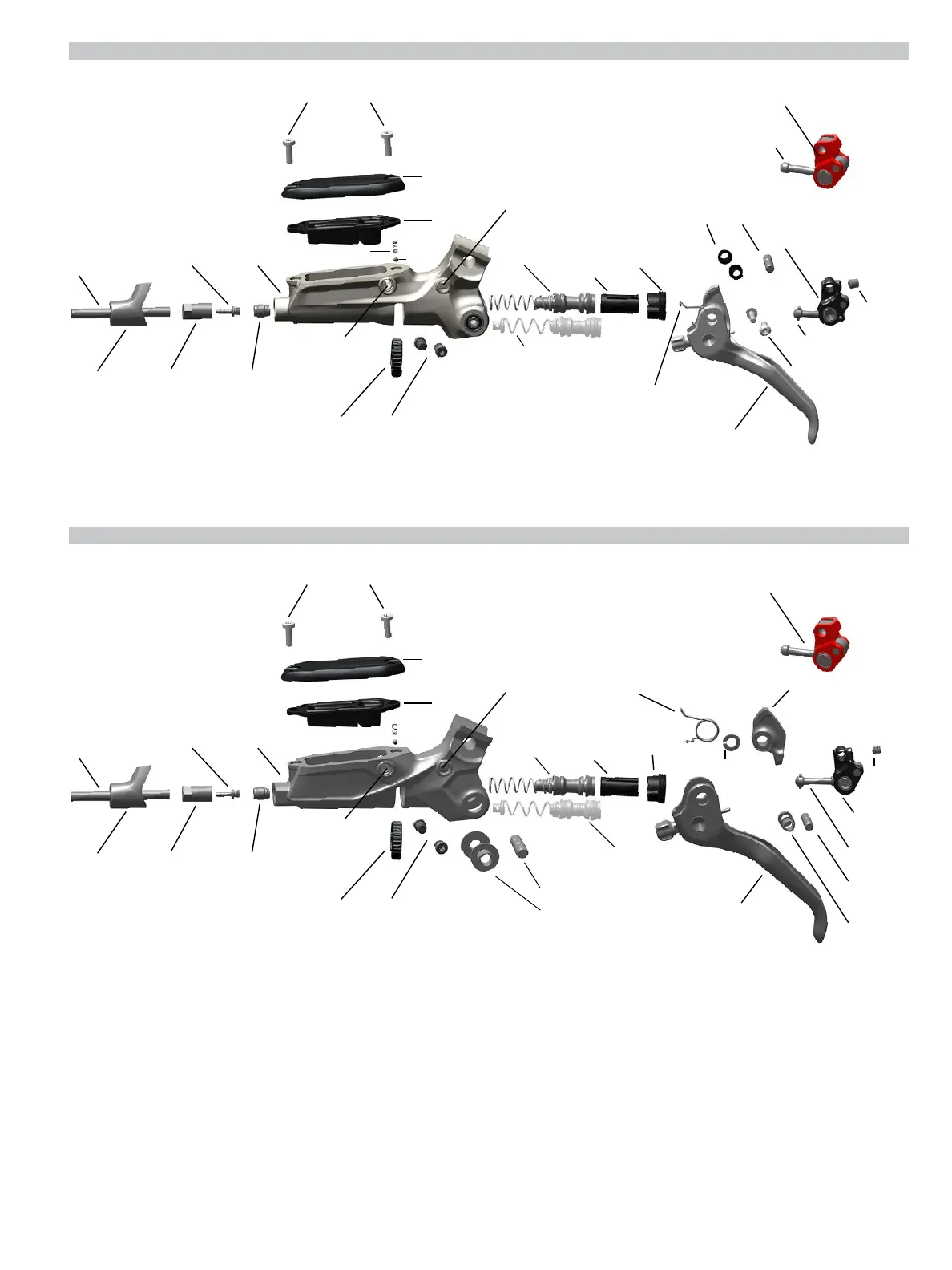

SRAM G2 ULTIMATE - G2 Ultimate Lever Exploded View; G2 Rsc Lever Exploded View

20Lever Exploded View
G2 Ultimate Lever Exploded View
G2 RSC Lever Exploded View
Lever body
Compression fitting
Reservoir bolts (2)
Bladder
Reservoir cap
Detent spring
Piston assembly
Piston assembly
(Stealth-a-majig- OEM)
Coupler Sleeve
Lever bias spring SwingLink cam
SwingLink
bushings (2)
Main
pivot
clip
Pinch
bolt
Compression nutHose boot
Hose barb
Contact Point Adjustment dial Bleed port
screws (2)
Detent
ball
SwingLink
Pivot pin
SwingLink
push rod
SwingLink
Lever pivot
Lever pivot bushings (2)
Bleed port
Lever
assembly
SwingLink pivot hole
Hose
Reservoir bolts (2)
Bladder
Reservoir cap
Detent spring
Piston assembly
Piston assembly
(Stealth-a-majig- OEM)
Coupler
Sleeve
Lever bias spring
SwingLink (black)
SwingLink (red)
SwingLink (red)
Pinch
bolt
Detent
ball
SwingLink
push rod
SwingLink
push rod
Lever pivot bolts (2)
Bleed port
Lever
assembly
SwingLink pivot hole
Lever body
Compression fittingCompression nutHose boot
Hose barbHose
SwingLink
bushings (2)
Contact Point Adjustment dial Bleed port
screws (2)
SwingLink
Pivot pin
