SRAM® HydroR™ Lever Service
SRAM® HydroR™ Lever Service
Perform this service if you have forward or backward play, or rattling in your lever.
Prior to servicing the lever, record the lever placement on the bars and position of the reach so you can return the product to these settings. For an
externally routed hose, detach the hose from the bicycle frame according to the bicycle manufacturer's instructions. For an internally routed hose,
disconnect the hose from the caliper before removing the hose from the frame.
Parts, Tools, and Supplies
Parts
• HRD/HRR Shift Lever Pushrod Assembly
Safety and Protection Supplies
• Apron
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• SRAM DOT 5.1 hydraulic brake fluid
• SRAM DOT assembly grease
SRAM Tools
• SRAM brake bleed syringe
Bicycle Tools
• Bicycle work stand
Common Tools
• Flat blade screwdriver
• Hex wrenches: 2.5, 5 mm
• Hex bit sockets: 2.5, 5 mm
• Needle nose pliers
• Phillips #2 screwdriver
• Pick
• Pin removal punch: 2 mm x 1.5 in
• Rubber mallet
• Torque wrench

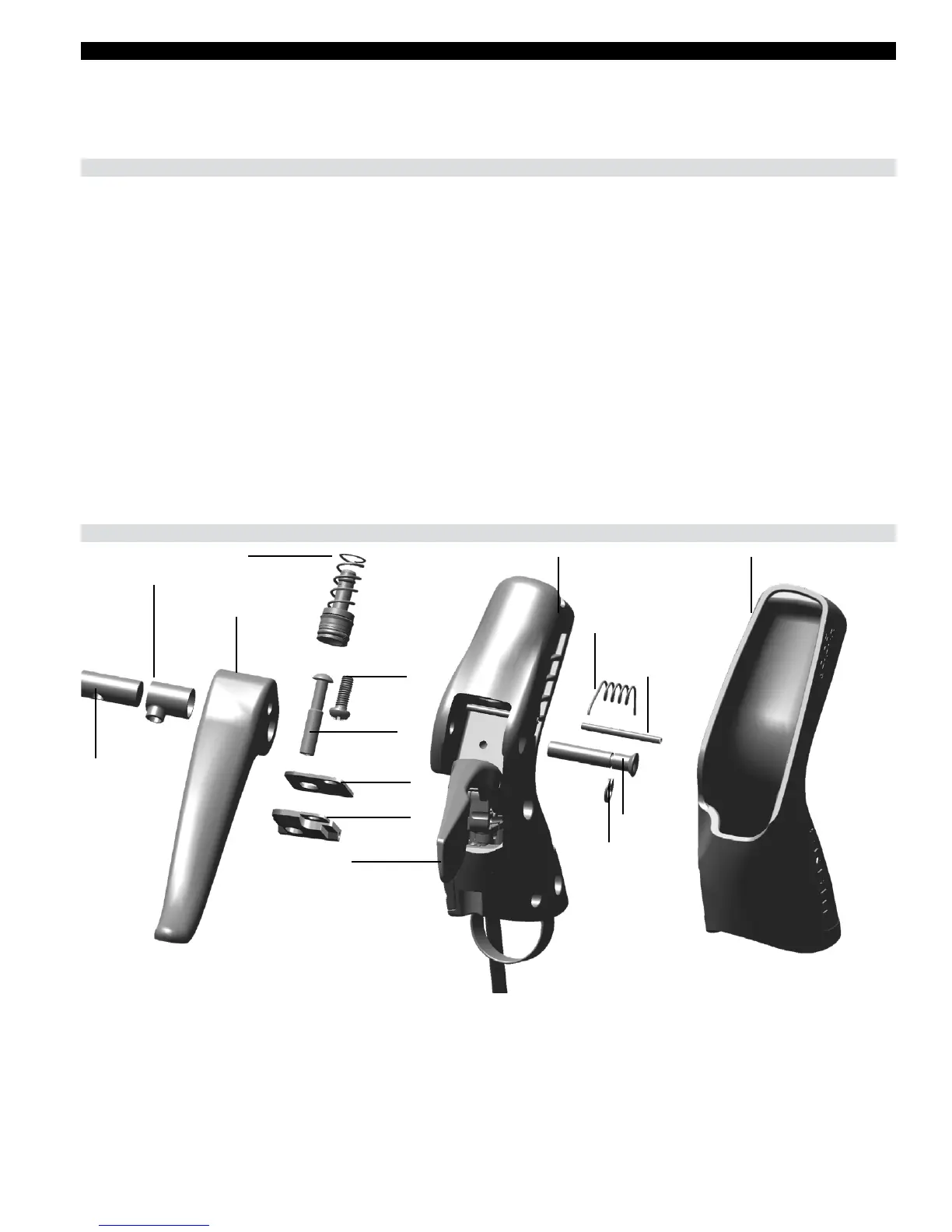

Exploded View
Hood
Master Piston
assembly
Shifter blade
(shift-brake
models only)
Thread
forming
screw
Lever blade
Inner
pivot
barrel
Outer
pivot
barrel
(shift-brake
models only)
Lever bias spring
Roll pin
(gen. 2)
Circlip
Pivot Pin
Reach adjust
pushrod
Stop plate
gen. 1
Stop plate
gen. 2
Hood cover
