GETTING STARTED
1-2

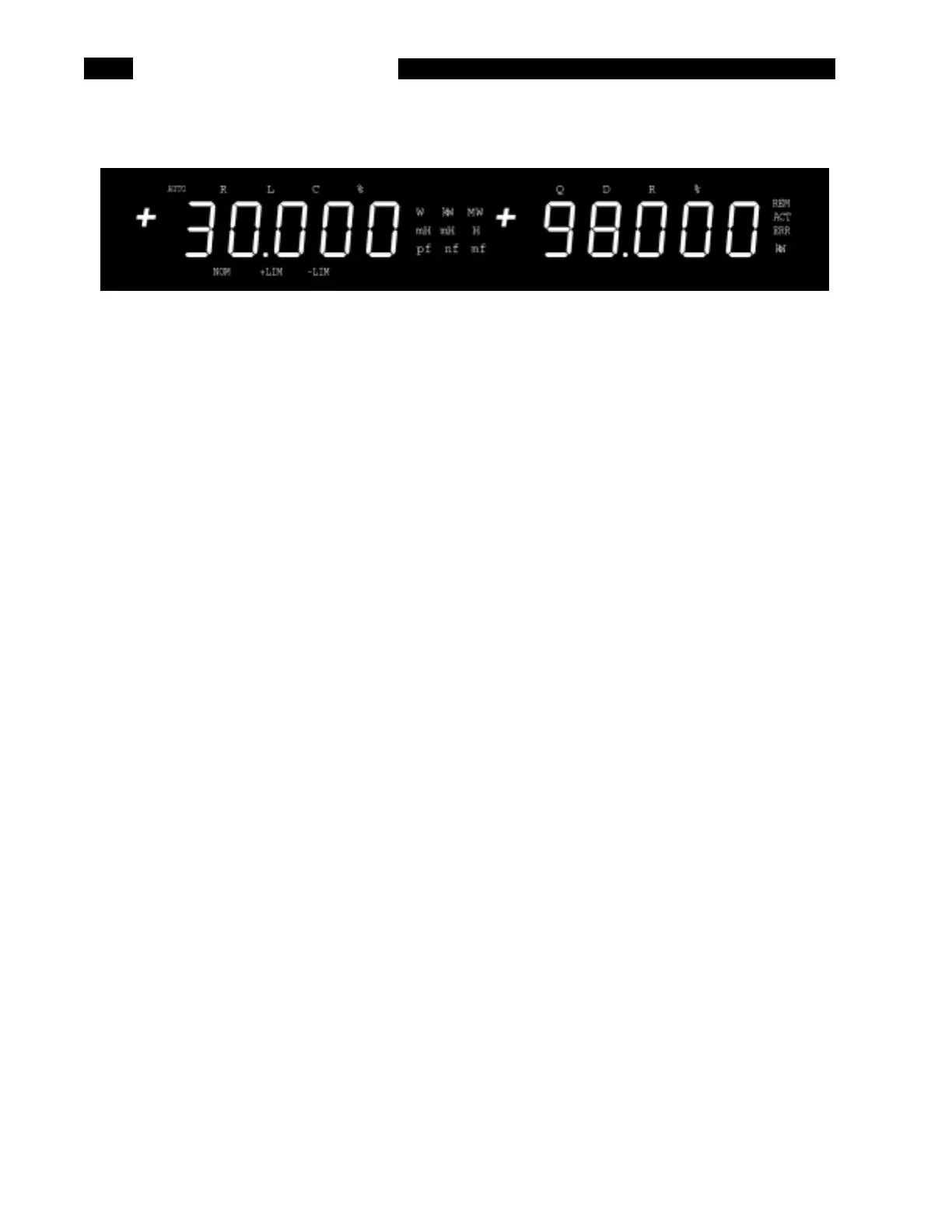

DISPLAY
The LED display shows measured values, entered
parameters, instrument status, and user
messages. There are two 5-digit LED displays and
25 indicator LEDs. When making normal
measurements, the major parameter (L, C, or R) is
shown on the left display and the appropriate
minor parameter (Q, D or R) is shown on the right
display. The number of displayed digits and the
location of the decimal points are automatically
adjusted according to the range and resolution.
The measured parameters (L, C, or R and Q, D, or
R) are indicated by the LEDs above each numeric
display. If the AUTO LED is also on, the unit is in
the auto parameter mode. The % LED indicates
that the measurement is displayed as a relative
deviation from an entered nominal value. Units are
indicated by the LEDs located between the two
displays: Ω, kΩ, MΩ, µH, mH, H, pF, nF or µF. The
minor parameter is dimensionless (Q and D) or
has the units of Ohms for resistance, unless the
kΩ LED on the right is on. Status information
(REM, ACT and ERR) is shown to the right of the
minor parameter. Beneath the major parameter
display are indicators for entering binning values,
NOMinal, +LIMit and -LIMit.
