1B3-136 OM600 ENGINE MECHANICAL

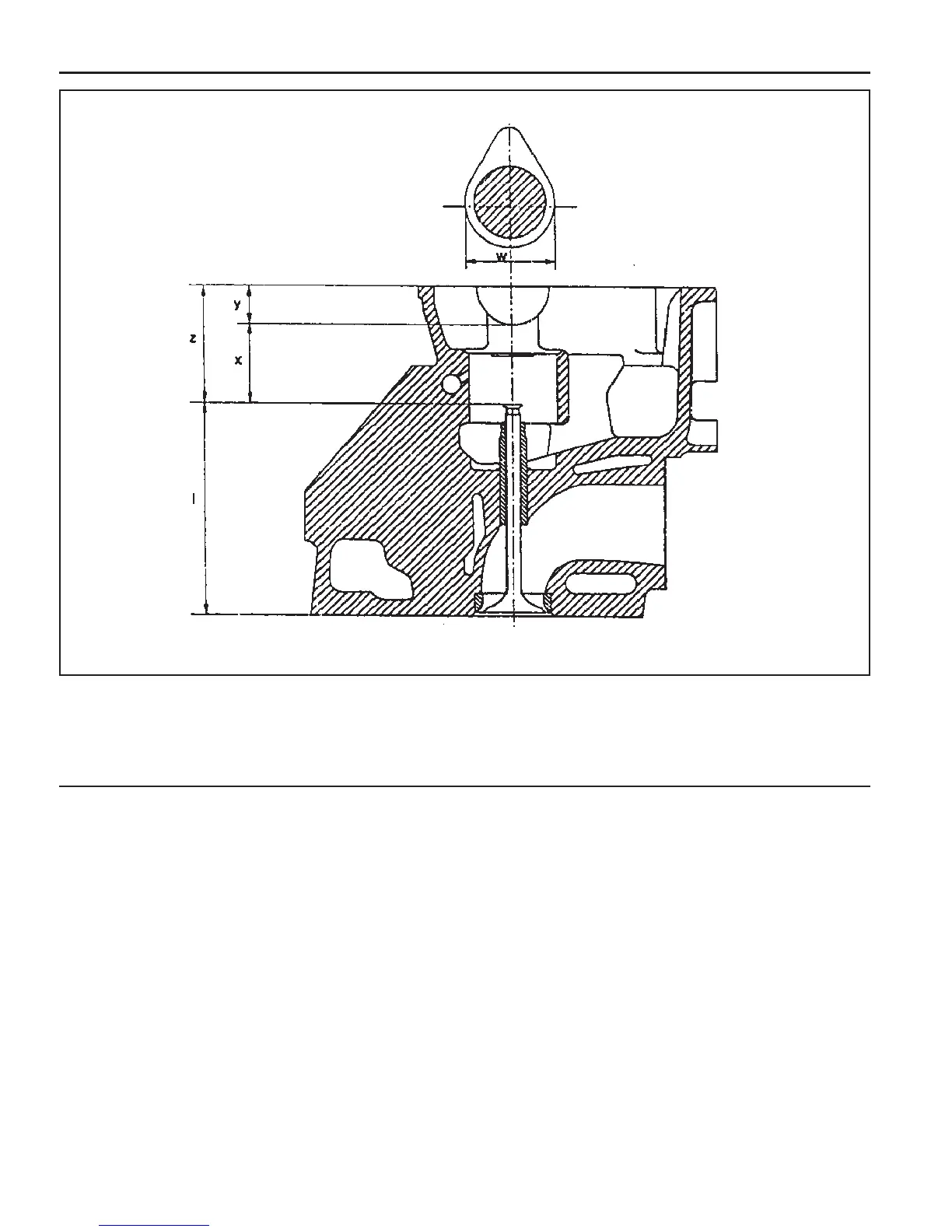

I Length of Valve
w Camshaft Cam Basic Circle Diameter
x Distance (Camshaft basic bore - valve stem)
y Half Camshaft Basic Bore Diameter
z Distance (Cylinder head cover parting surface -.
valve stem)
8. Measure ‘x’ (Camshaft basic bore - valve stem).
‘x’ = ‘z’ - ‘y’
9. Determine the valve to be used.
(See ‘Matching valves’)
Example) Measured value ‘w’ = 38.2 mm
Measured value ‘z’ = 36.5 mm
Value ‘y’ = 15.5 mm
‘x’ = 36.5 - 15.5 = 21.0 mm
In the case of a camshaft cam basic circle diameter
‘w’ = 38.2mm and a distance ‘x’ = 21.0mm, the installed
valve may be used.
