OM600 ENGINE MECHANICAL 1B3-141

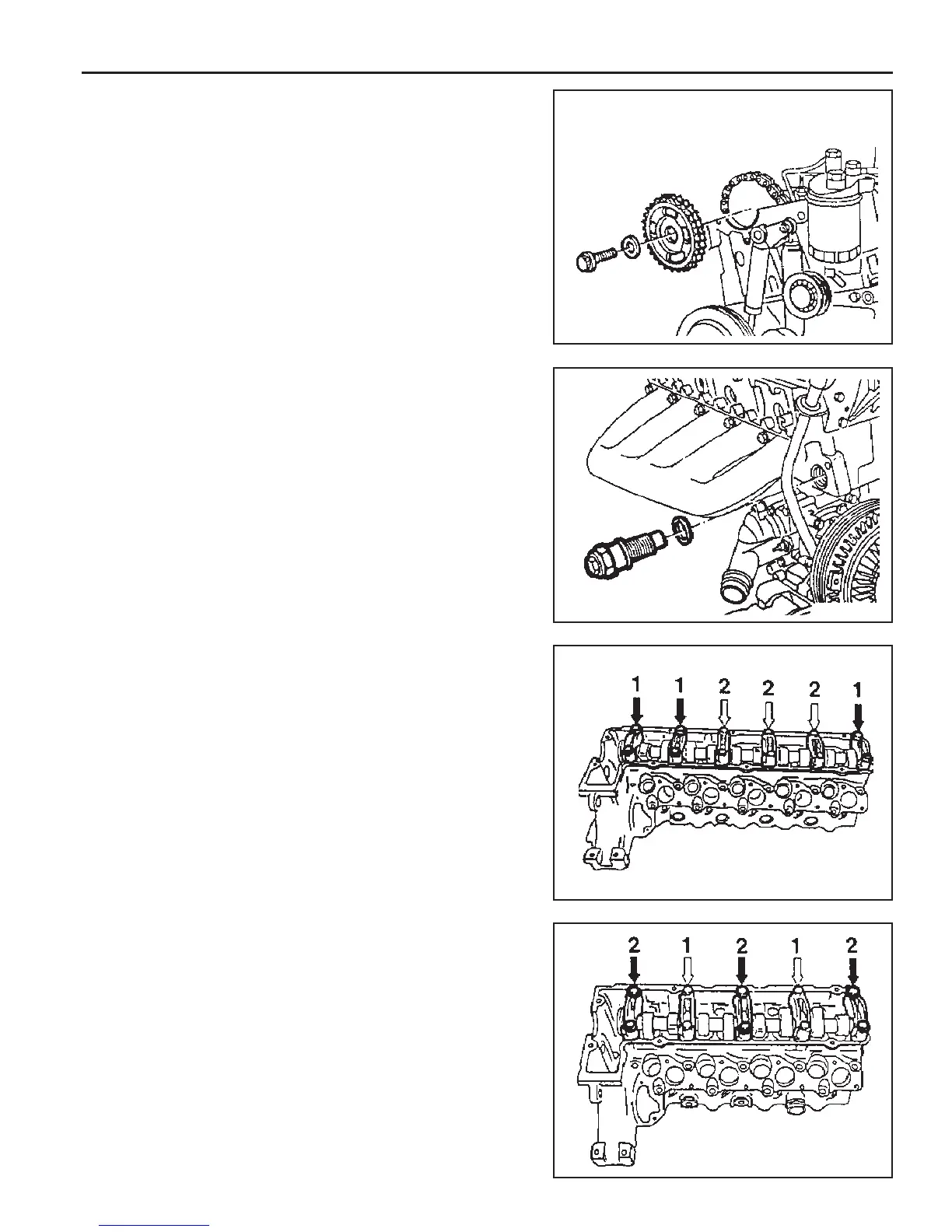

4. Remove the bolt and then remove the camshaft sprocket.
Notice
During removal, be careful not to drop the sprocket with
chain. Remove the chain carefully and then pull out the
sprocket.
5. Remove the chain tensioner.
6. Remove the camshaft bearing cap bolts according to the
removal order.
Notice
Remove the camshaft bearing cap bolts of 1(dark arrow)
first and then remove the bolts of 2 (light arrow) one
revolution in stages until the counter-pressure is released.
In order to avoid damaging the camshaft, it is essential to
adhere to the removal order for the camshaft bearing caps.
OM 662LA
OM 661LA
