1B3-166 OM600 ENGINE MECHANICAL
Installation Procedure

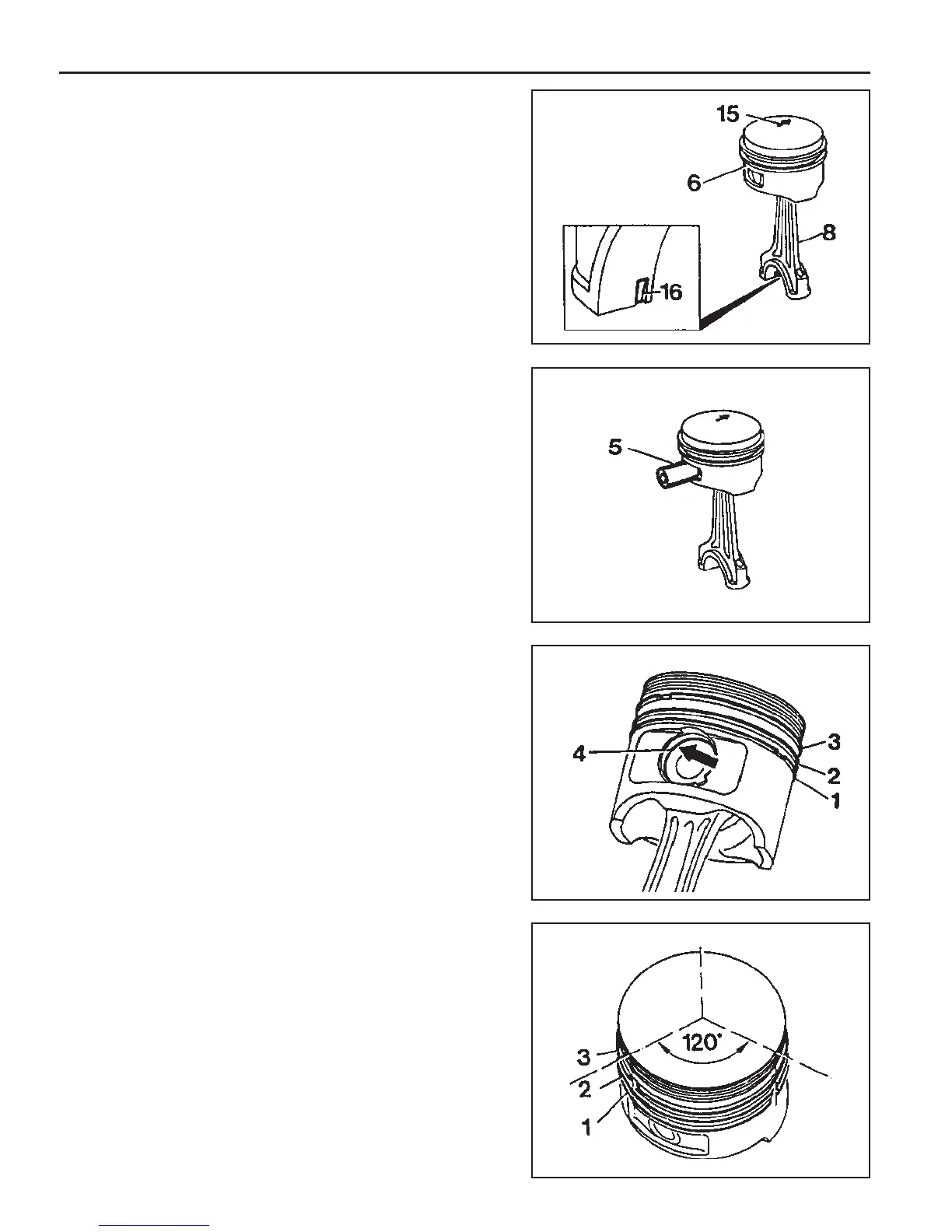

1. Fit the piston onto the connecting rod so that the arrow
(15) and the locking slot (16) are facing in direction of the
vehicle.
2. Coat the piston pin (15) with engine oil and insert it by hand.
Notice
Do not heat up the piston.
3. Install the new snap ring (4) into the grooves (arrow).
4. Check the piston rings (1, 2, 3) and replace them if
necessary.
5. Install and arrange the piston rings to be evenly 120° from
each ends gap.
