OM600 ENGINE MECHANICAL 1B3-167

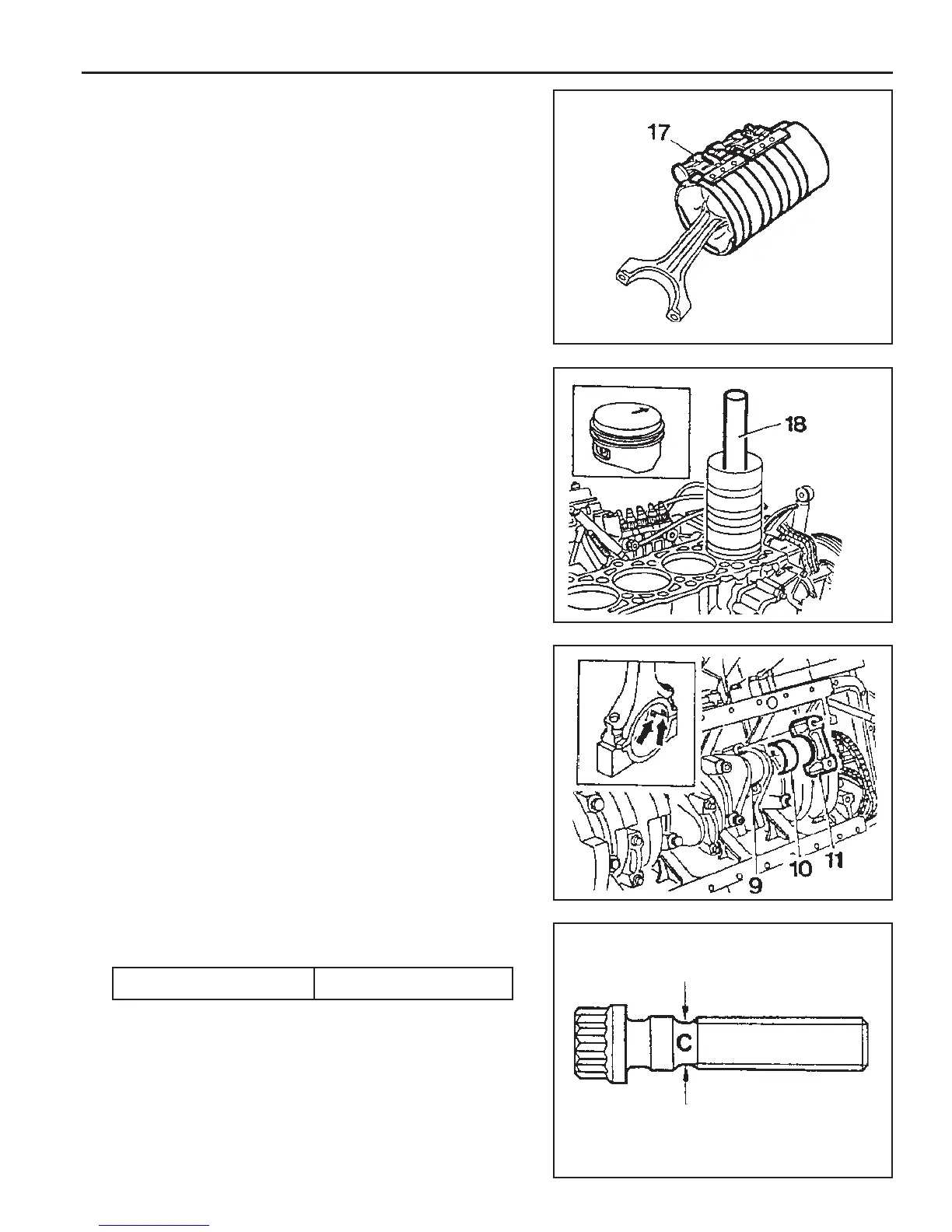

6. Coat the cylinder bore, connecting rod bearing journal,
connecting rod bearing shell and piston with oil.
7. Compress the piston rings with a tensioning strap (7).
Tensioning Strap 000 589 04 14 00
8. Insert the piston assembly into the cylinder with a wooden
stick (18).
Notice
The arrow on the piston crown must point toward the front
of vehicle.
9. Insert the connecting rod bearing shells (9, 10).
Notice
Be careful of the difference in upper and lower bearing
shells and not to be changed.
10. Position the connecting rod bearings caps.
Notice
Position so that the retaining lugs are on the same side of
the connecting rod bearing(arrow).
11. Measure stretch shaft diameter (C) of the connecting rod
bolts.
Limit ‘C’ 7.1mm
