1B3-72 OM600 ENGINE MECHANICAL
Tools Required
601 589 03 43 00 Oil Seal Assmbler
Removal Procedure

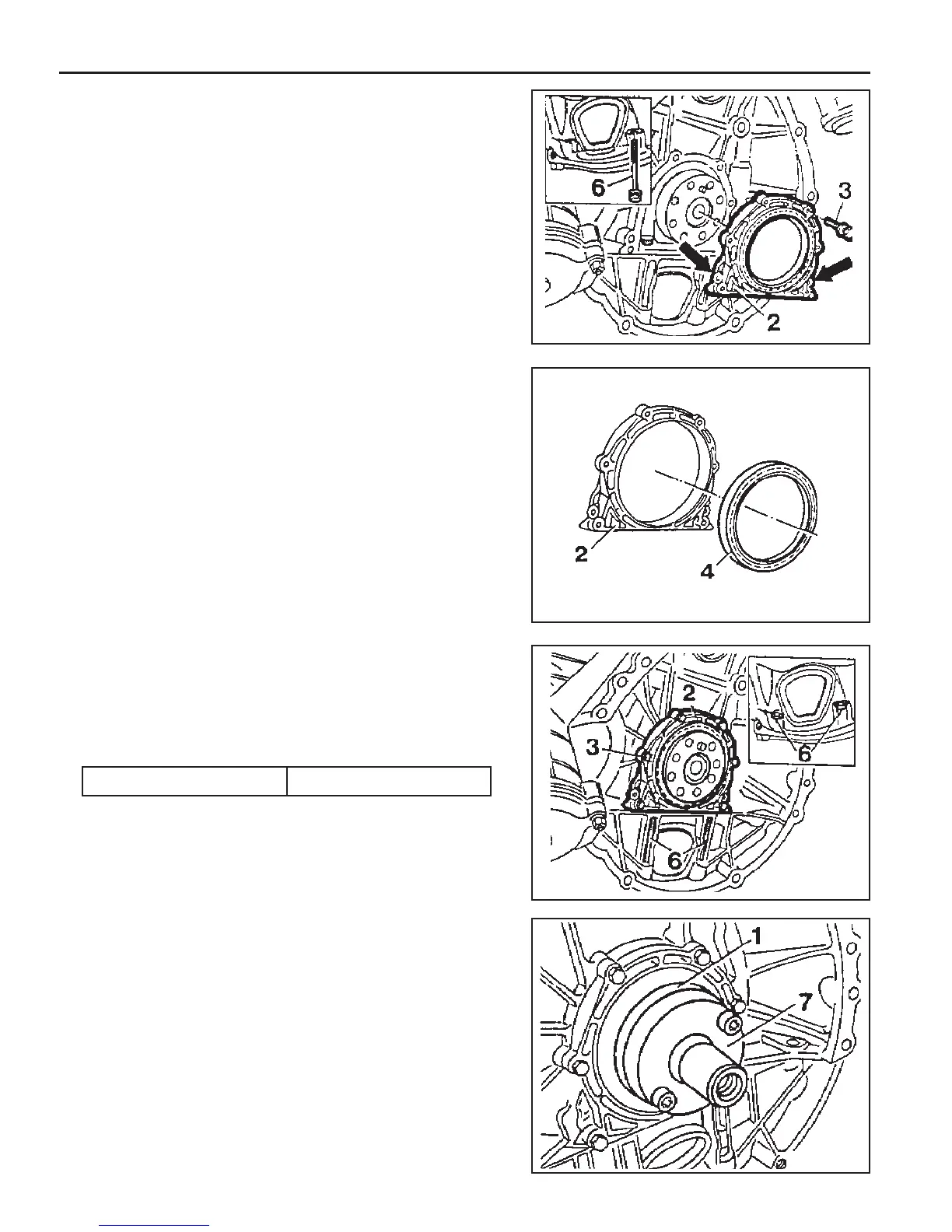

1. Remove the bolts (3, 6) from end cover, By pulling out the
lugs (arrow), remove the cover.
Notice
Be careful not to damage the oil pan gasket.
2. Remove the radial seal (4) with care not to damage the
sealing surface.
Installation Procedure
1. Thoroughly clean the sealing surface of end cover and apply
Loctite 573.
2. Clean the groove of radial seal.
3. Apply Loctite 573 on the bolts and install the end cover.
Tightening Torque 10 Nm
Notice
Be careful not to damage the oil pan gasket.
4. Install the inner oil seal assembler to the crankshaft flange.
Oil Seal Assembler 601 589 03 43 00
To Next Page
