OM600 ENGINE MECHANICAL 1B3-73
Notice
The sealing lip of the repair radial seal is offset to the inside
by 3mm to ensure that it does not run in any groove which
the standard radial seal may have left on the crankshaft
flange.
7. Install the outer oil seal assembler on he seal and by
tightening the bolts, press the radial seal into the end cover
as far as the stop.
Notice
The seal must be positioned exactly at right angles in the
end cover to ensure that it provides a proper seal.

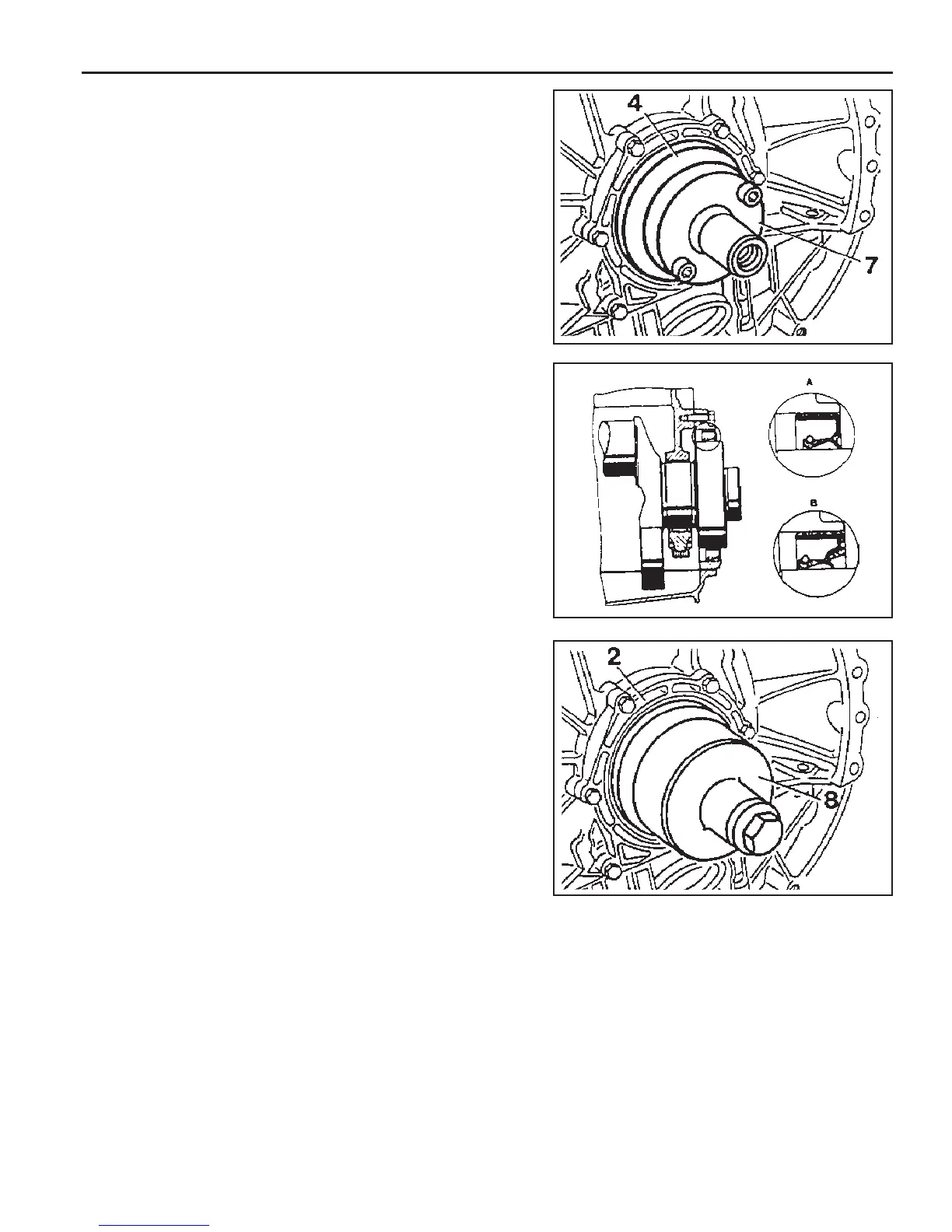

Oil Seal Assembler 601 589 03 43 00
A Standard Radial Seal
B Repair Radial Seal
5. Coat a little oil on the sealing lip of new radial seal and
contacting surface.
Notice
Don’t use grease.
6. Insert the new radial seal (4) onto the oil seal assembler
(7).
