OM600 ENGINE MECHANICAL 1B3-75

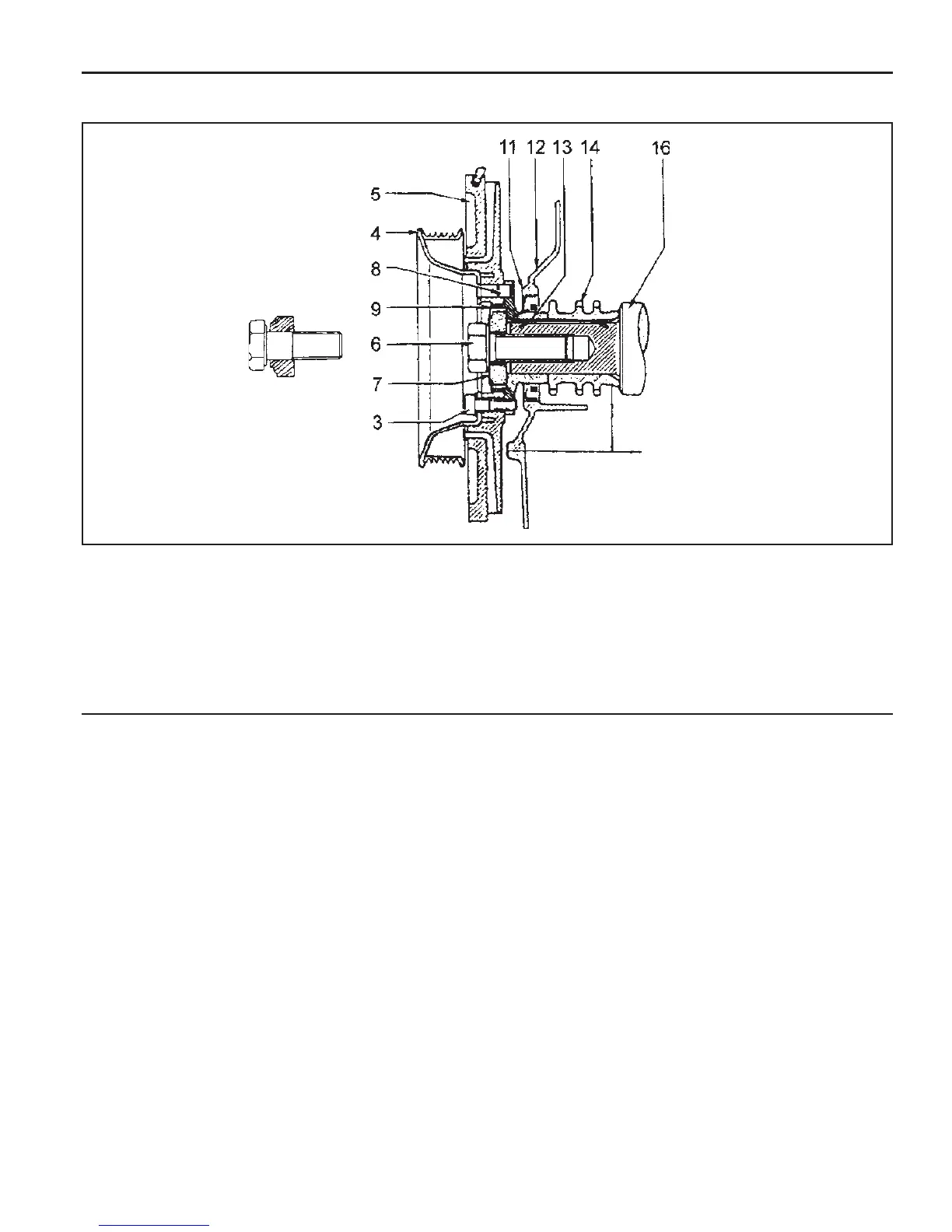

Sectional View
3 Socket Bolt
4 Crankshaft Belt Pulley
5 Vibration Damper
6 Bolt
7 Washer
8 Straight Pin
Notice
The mounting position of vibration damper is fixed by straight
pin (8).
Tools Required
602 589 00 40 00 Engine Lock
103 589 00 30 00 Puller
9 Hub
11 Radial Seal
12 Timing Gear Case Cover
13 Key
14 Crankshaft Sprocket
16 Crankshaft
