1B3-76 OM600 ENGINE MECHANICAL
Removal Procedure

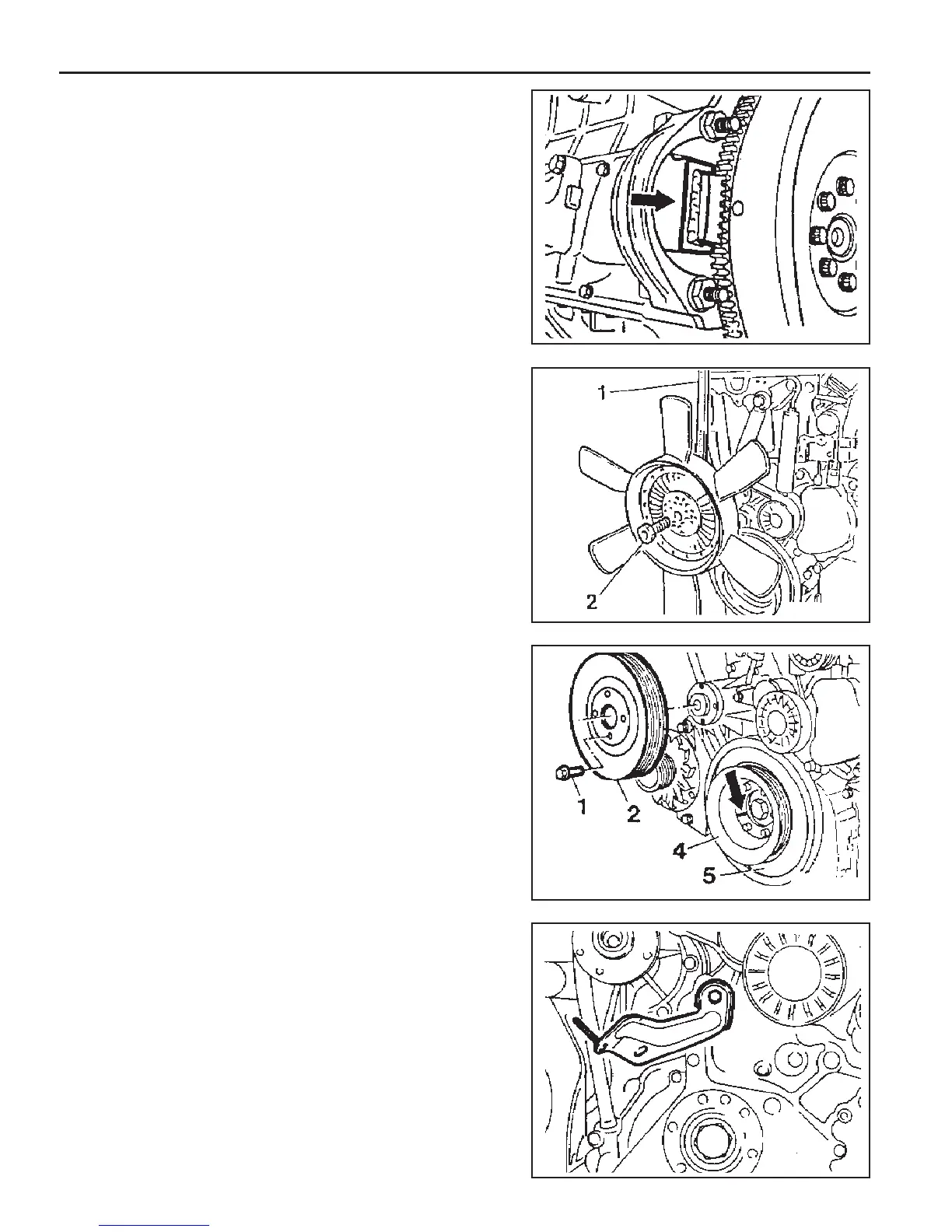

1. Remove the starter motor and install the engine lock into
the wheel ring gear.
Engine Lock 602 589 00 40 00
2. Remove the poly V-belt.
3. Remove the cooling fan.
Notice
Keep the fan in vertical position.
4. Remove the cooling fan belt pulley (2).
5. Place alignment marks (arrow) on the vibration damper (5)
and crankshaft belt pulley (4).
6. Remove the timing sensor bracket.
Notice
Remove if necessary.
To Next Page
