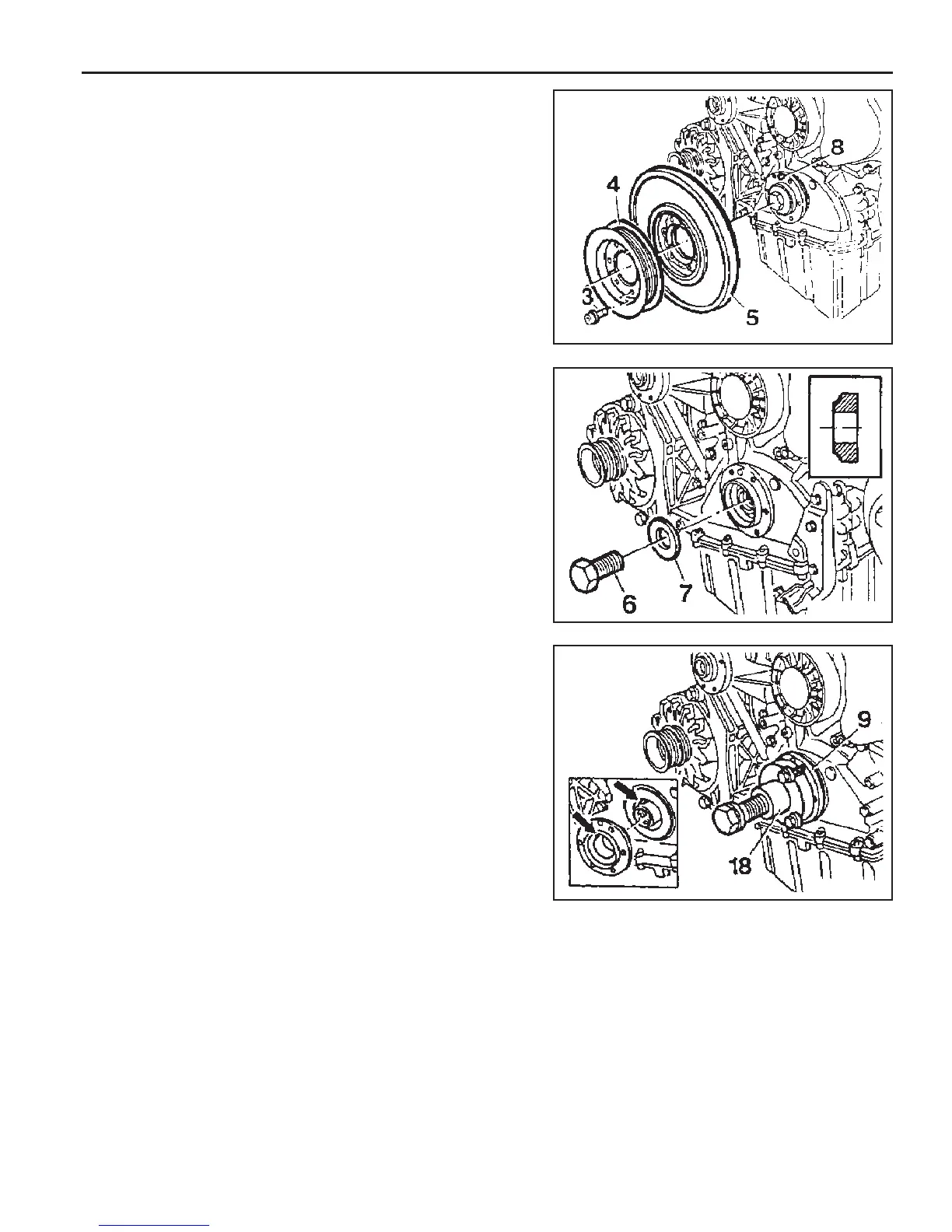

OM600 ENGINE MECHANICAL 1B3-77
7
.
Remove the socket bolts (3) and then remove the belt
pulley (4) and vibration damper (5).
8
.
Remove the washer and bolt.
9
.
Remove the hub by using a puller
.
Puller 103 589 00 33 00
1
0
.
Replace the radial seal.
