1B3-78 OM600 ENGINE MECHANICAL

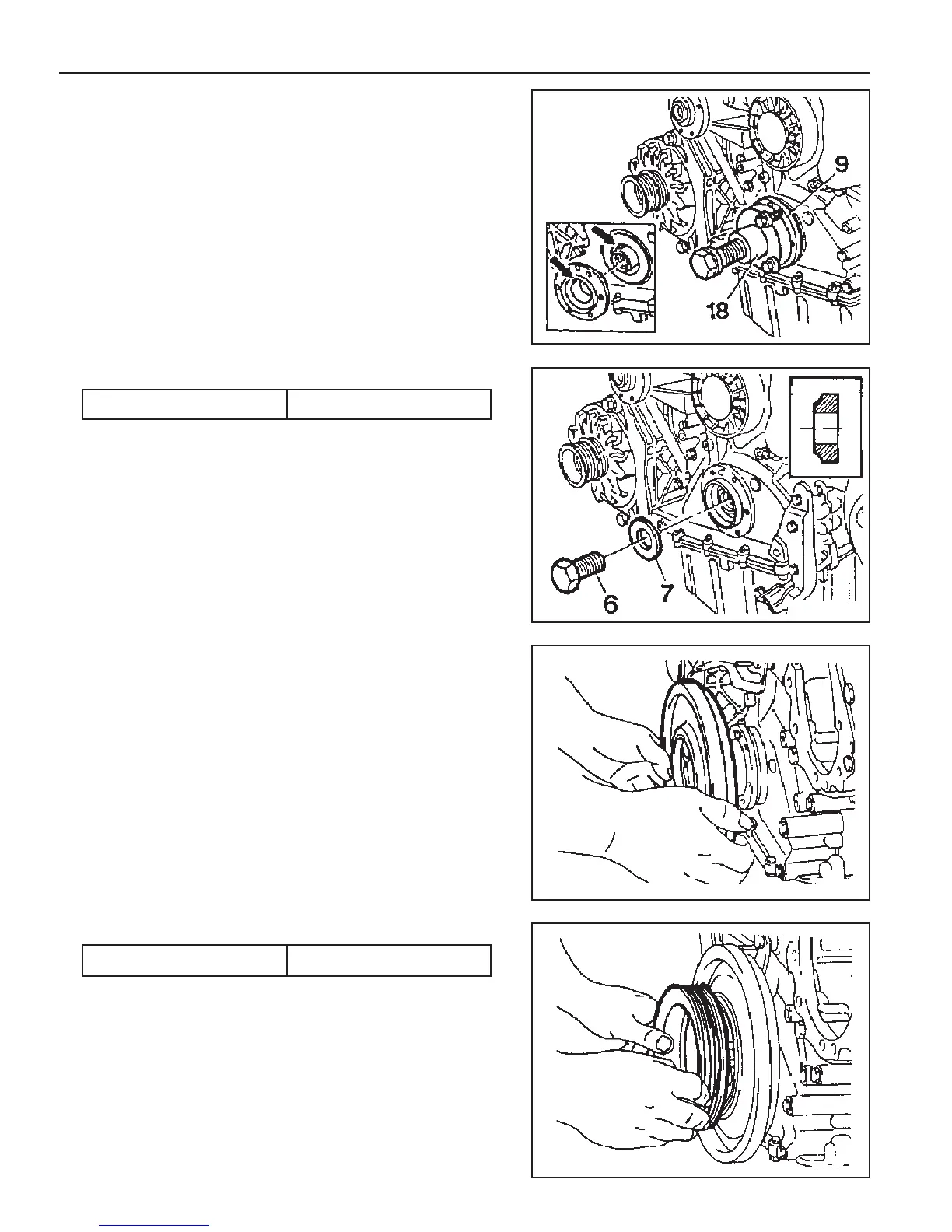

Installation Procedure
1. Install the hub.
Notice
Exactly align the woodruff key and the groove of hub (arrow).
2. Install the washer (7) and tighten the bolt (6).
Washer (new) : 1 EA 200 Nm + 90°
3. Install the vibration damper.
Notice
Exactly align and insert onto the straight pin.
4. Install the belt pulley.
Tightening Torque 25 Nm
Notice
Align the alignment marks.
