Hardware layout and configuration UM1974
20/82 DocID028599 Rev 7

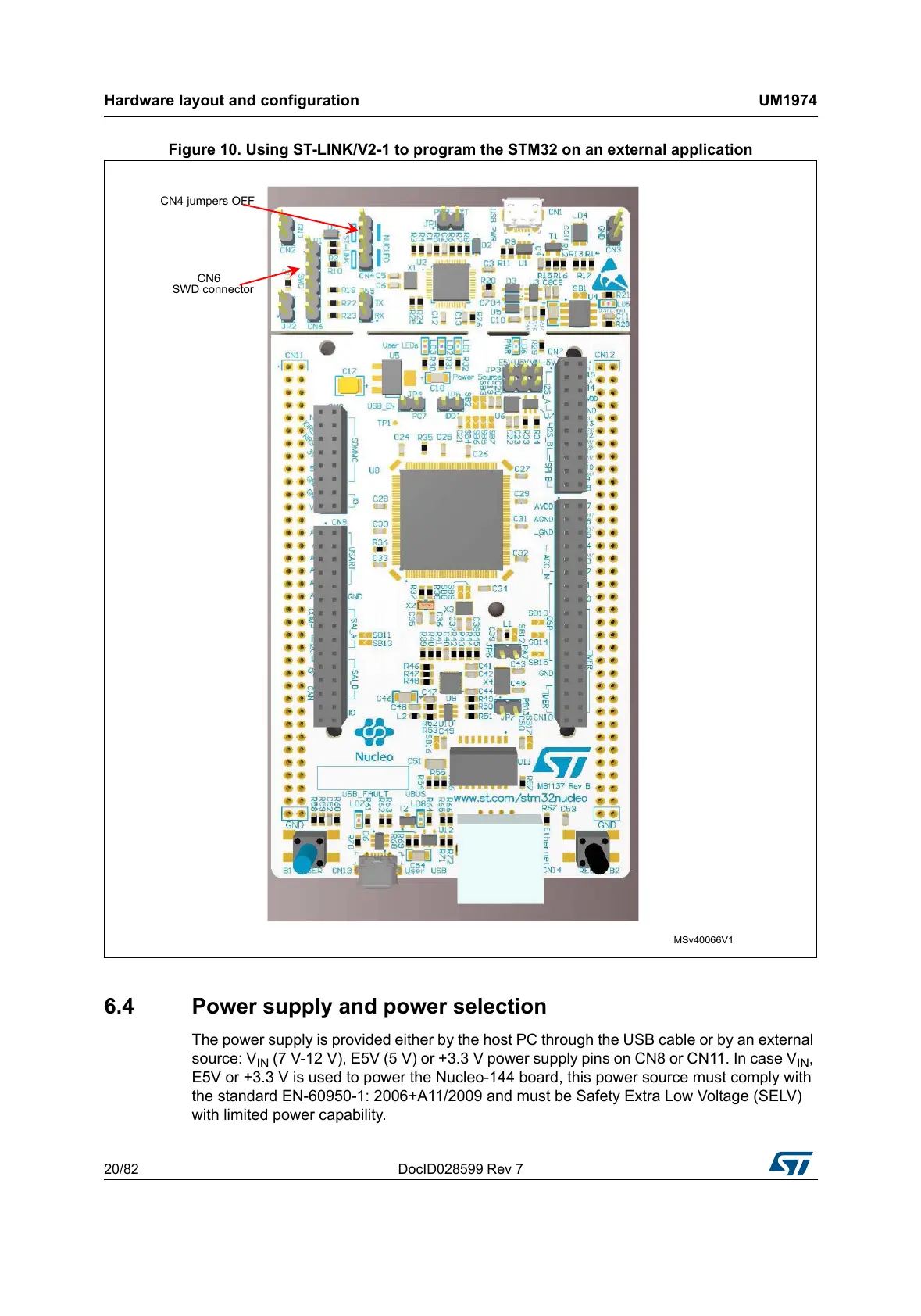

Figure 10. Using ST-LINK/V2-1 to program the STM32 on an external application
6.4 Power supply and power selection
The power supply is provided either by the host PC through the USB cable or by an external
source: V
IN
(7 V-12 V), E5V (5 V) or +3.3 V power supply pins on CN8 or CN11. In case V
IN
,
E5V or +3.3
V is used to power the Nucleo-144 board, this power source must comply with
the standard EN-60950-1: 2006+A11/2009 and must be Safety Extra Low Voltage (SELV)
with limited power capability.
