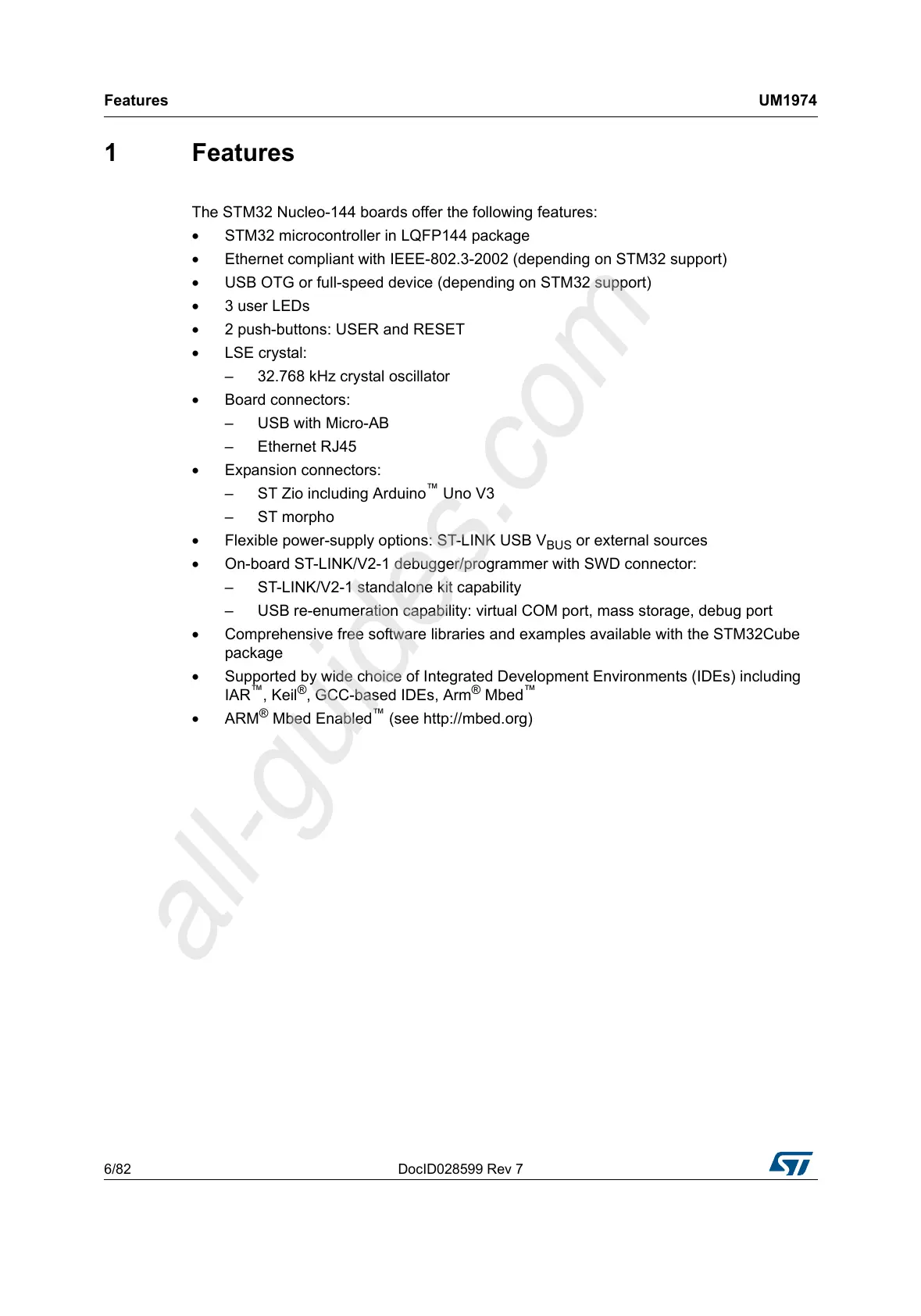

Features UM1974
6/82 DocID028599 Rev 7
1 Features
The STM32 Nucleo-144 boards offer the following features:
STM32 microcontroller in LQFP144 package
Ethernet compliant with IEEE-802.3-2002 (depending on STM32 support)
USB OTG or full-speed device (depending on STM32 support)
3 user LEDs
2 push-buttons: USER and RESET
LSE crystal:
32.768 kHz crystal oscillator
Board connectors:
USB with Micro-AB
Ethernet RJ45
Expansion connectors:
ST Zio including Arduino
Uno V3
–ST morpho
Flexible power-supply options: ST-LINK USB V
BUS
or external sources
On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
ST-LINK/V2-1 standalone kit capability
USB re-enumeration capability: virtual COM port, mass storage, debug port
Comprehensive free software libraries and examples available with the STM32Cube
package
Supported by wide choice of Integrated Development Environments (IDEs) including
IAR
, Keil
®
, GCC-based IDEs, Arm
®
Mbed
ARM
®
Mbed Enabled
(see http://mbed.org)
