Hardware layout and configuration UM1956
12/37 UM1956 Rev 5

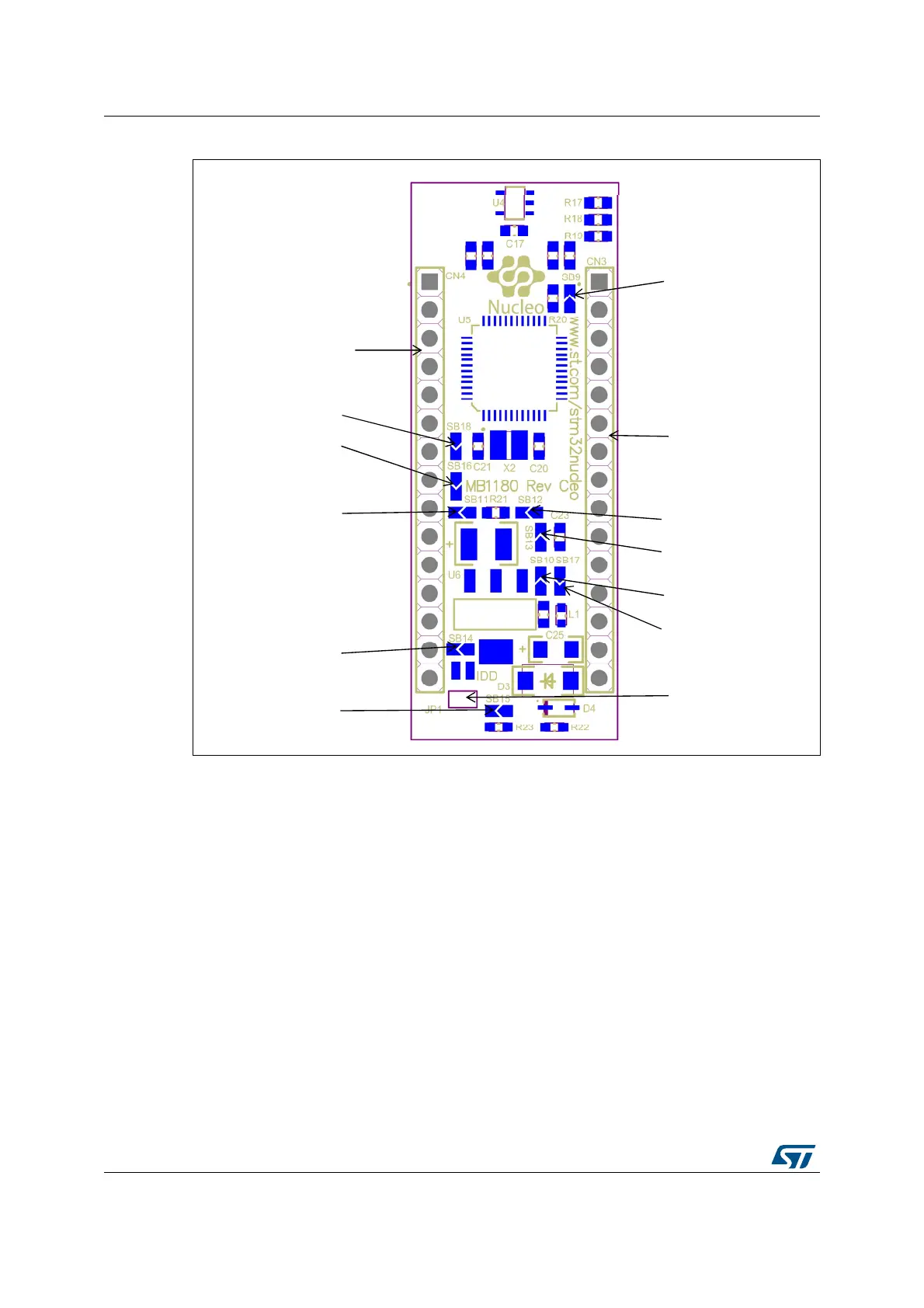

Figure 4.
CN4
Arduino Nano connector
CN3
Arduino Nano connector
JP1
IDD m
easu
r
e
m
e
n
t
SB14
3.3V regulator output
SB18
Connect D4 to A4
SB16
Connect D5 to A5
SB11
Connect 670 pin 16 to
GND
SB15
Connect D13 to LD3
SB17
Connect MCO to PA0
SB10
Connect VDD to 670
pin 5
SB13
Connect GND to 670 pin
32
SB12
Connect BOOT0 to GND
SB9
ST-LINK RESET
STM32 Nucleo-32 board bottom layout

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ST STM32 Nucleo-32 and is the answer not in the manual?

ST STM32 Nucleo-32 Specifications

General IconGeneral
MicrocontrollerSTM32
Pin Count32
ConnectivityUSB
DebuggingST-LINK/V2-1
CoreARM Cortex-M
Operating Voltage3.3V
Power SupplyUSB or External Source
Clock SpeedVaries by specific STM32 MCU
Flash MemoryVaries by specific STM32 MCU
SRAMVaries by specific STM32 MCU
GPIO PinsVaries by specific STM32 MCU
ADCVaries by specific STM32 MCU
DACVaries by specific STM32 MCU
Communication InterfacesI2C, SPI, USART, USB
Expansion ConnectorsArduino Nano connectivity
Operating TemperatureVaries by specific STM32 MCU
