UM2199 Hardware layout and configuration
68
8.2 STM32H753I-EVAL Evaluation board mechanical drawing
Figure 4 and Table 2 show the mechanical dimensions for the MB1246 board with the 5.7”
LCD daughterboard.

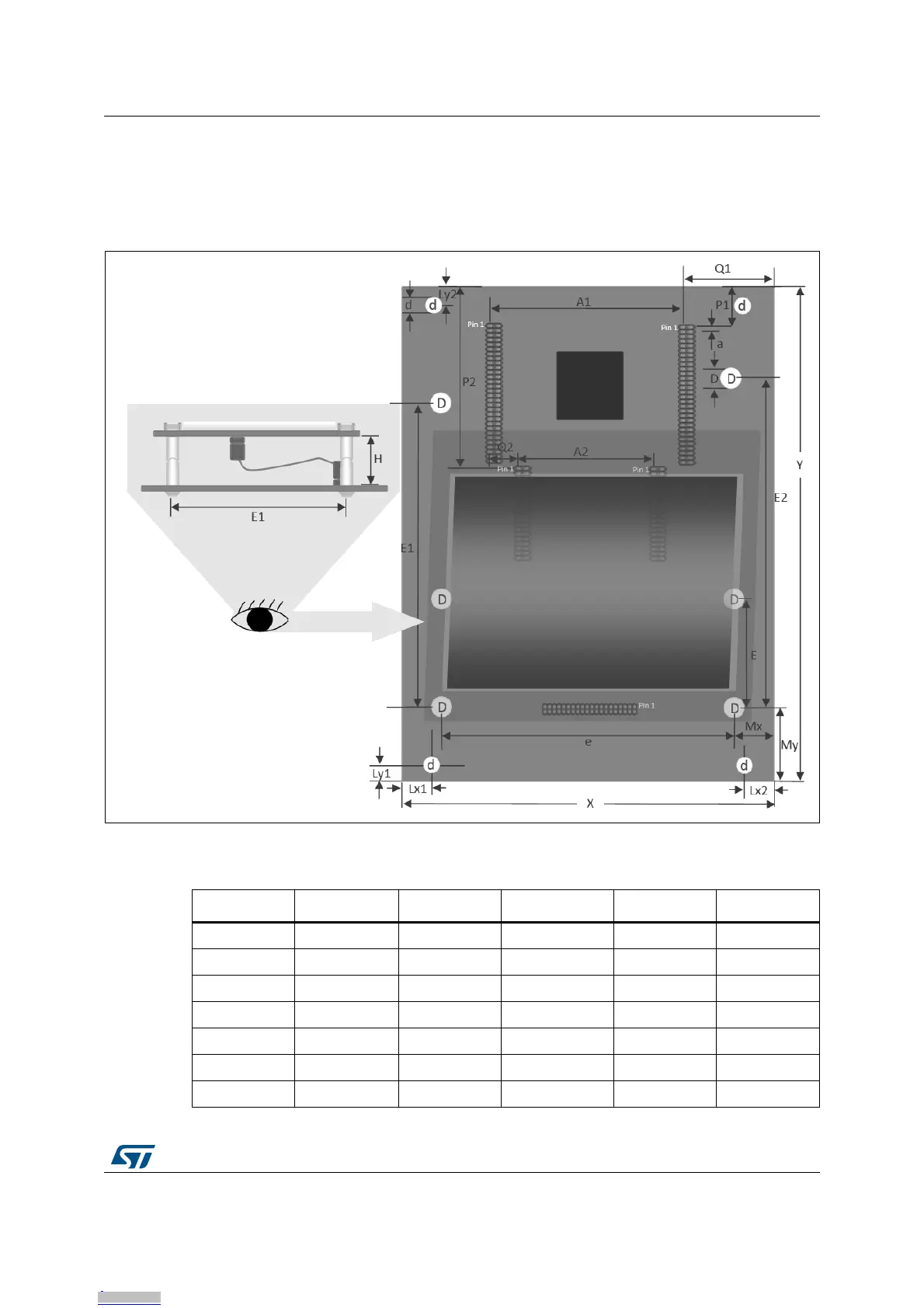

Figure 4. STM32H753I-EVAL Evaluation board mechanical drawing
Table 2. Mechanical dimensions
Symbol Size (mm) Symbol Size (mm) Symbol Size (mm)
A1 68.58 e 116.5 My 32.7
A2 48.62 H 8 P1 16.76
a 1.27 Lx1 13.7 P2 55.32
D4.5Lx225 Q139.23
d 3.5 Ly1 5 Q2 9.98
E1 107 Ly2 6.4 X 141.60
E2 114.18 Mx 12.5 Y 172.72
