Connectors UM2199
40/69 DocID030512 Rev 1
9.15 Audio jack CN17
A 3.5 mm stereo audio jack CN17 is available on STM32H753I-EVAL Evaluation board to
support headset (headphone and microphone integrated).
9.16 Audio jack (speaker) CN19
A 3.5mm stereo audio jack CN19 for speaker out is available on STM32H753I-EVAL
Evaluation board to support an external speaker.
9.17 TFT LCD connector CN20
A TFT-color LCD board is mounted on CN20. Refer to Section 8.19 for details.
9.18 ST-LINK/V2-1 programming connector CN21
The connector CN21 is used only for embedded ST-LINK/V2-1 programming during board
manufacturing. It is not populated by default and not for end users.
9.19 MFX programming connector CN22
The connector CN22 is used only for MFX (Multi Function eXpander) programming during
board manufacturing. It is not populated by default and not for end users.
9.20 ST-LINK/V2-1 USB Micro-B connector CN23
The USB Micro-B connector CN23 is used to connect the embedded ST-LINK/V2-1 to a PC
for
programming and debugging purposes.

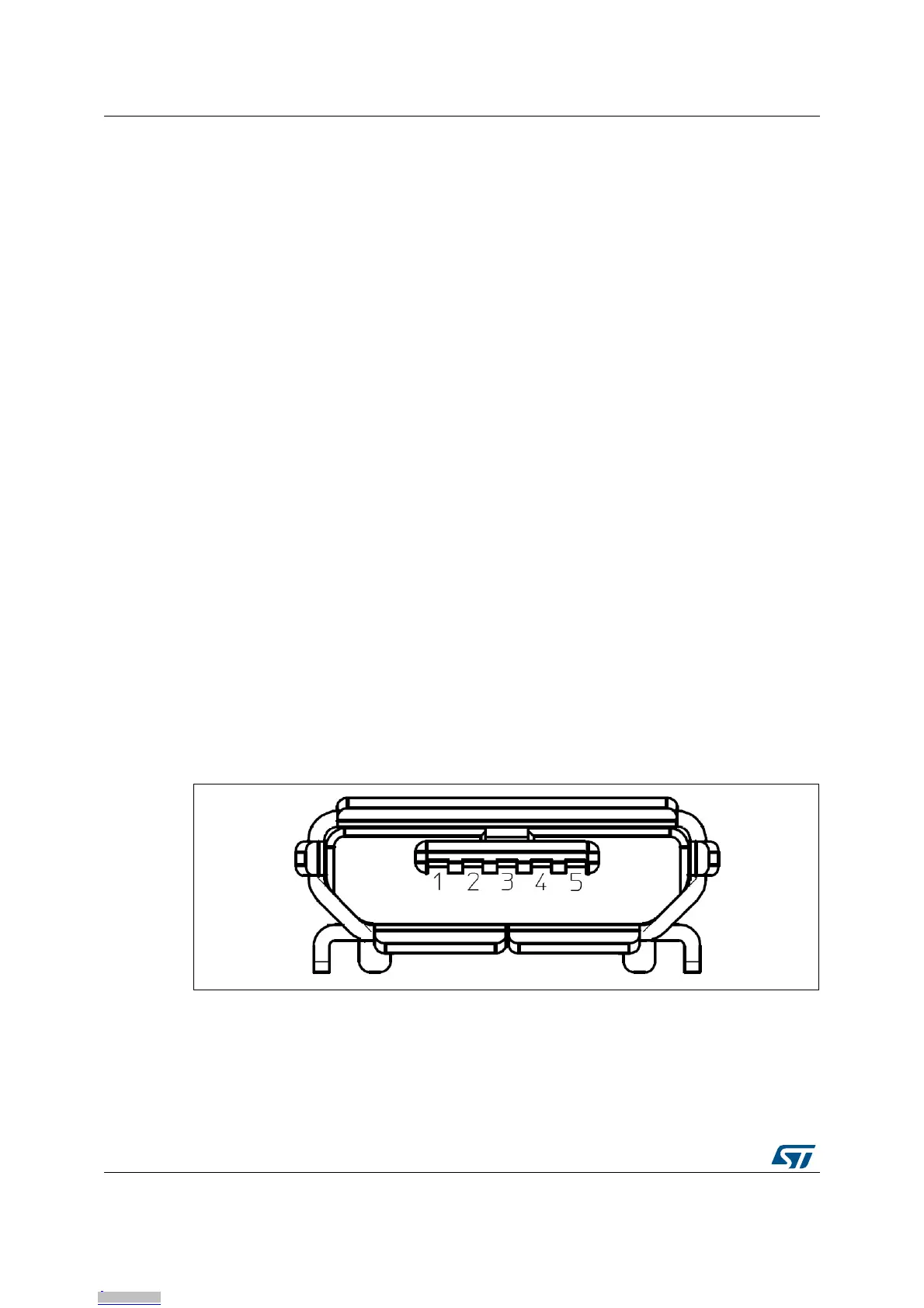

Figure 19. USB Micro-B connector CN23 (front view)
