9.12 USB OTG2 HS Micro-AB connector CN14

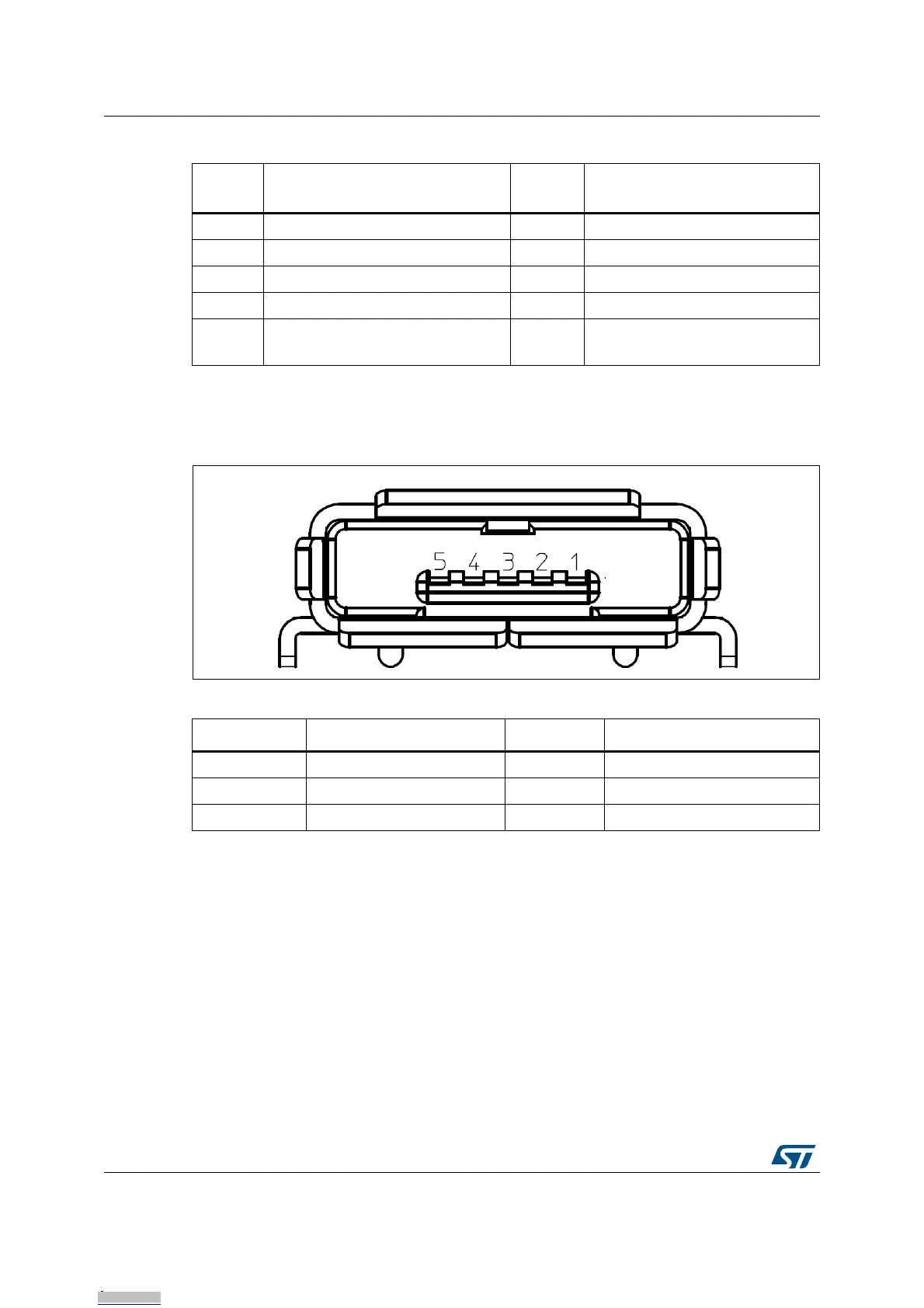

Figure 16. USB OTG HS Micro-AB connector CN14 (front view)
Table 27. microSD connector CN13
Pin
number
Description
Pin
number
Description
1 SD_DATA2 6 Vss/GND
2 SD_DATA3 7 SD_DATA0
3 SD_CMD 8 SD_DATA1
4 +2.9V_SD 9 GND
5SD_CLK10
MicroSDcard_detect
(MFX GPIO15)
Table 28. USB OTG HS Micro-AB connector CN14
Pin number Description Pin number Description
1V
BUS
4ID
2D-5GND
3D+ - -
