DocID030512 Rev 1 15/69
UM2199 Hardware layout and configuration
68

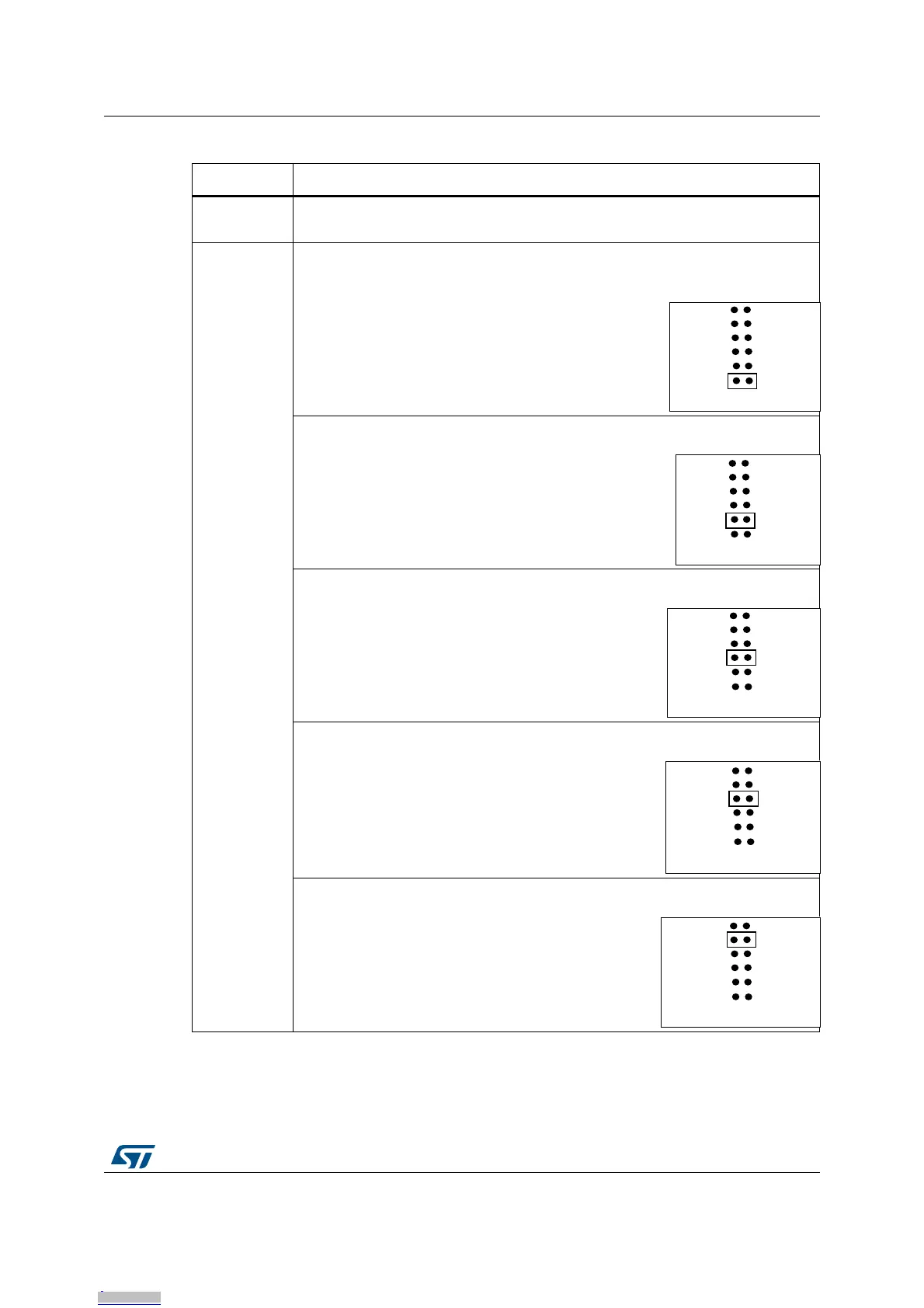

Table 3. Power related jumpers
Jumper Description
JP9
JP9 is used to measure STM32 current consumption manually by a multimeter.
Default setting: Fitted
JP10
JP10 is used to select one of the six possible power supply resources.
To supply the STM32H753I-EVAL board through the USB connector of the ST-
LINK/V2-1 (CN23) set JP10 as shown to the right: (default setting)
To supply the STM32H753I-EVAL board through the jack (CN10), set JP10 as
shown to the right:
To supply the STM32H753I-EVAL board through the daughterboard connectors
(CN6 and CN7), set JP10 as shown to the right:
To supply the STM32H753I-EVAL board through the USB OTG2 FS (CN16), set
JP10 as shown to the right:
To supply the STM32H753I-EVAL board through the USB OTG1 FS (CN18), set
JP10 as shown to the right:
+6
)6
)6
'9
368
67ON
069
+6
)6
)6
'9
368
67ON
069
+6
)6
)6
'9
368
67ON
069
+6
)6
)6
'9
368
67ON
069
+6
)6
)6
'9
368
67ON
069
