UM2199 Connectors
68
9.21 MEMS microphone coupon connectors CN25 and CN26

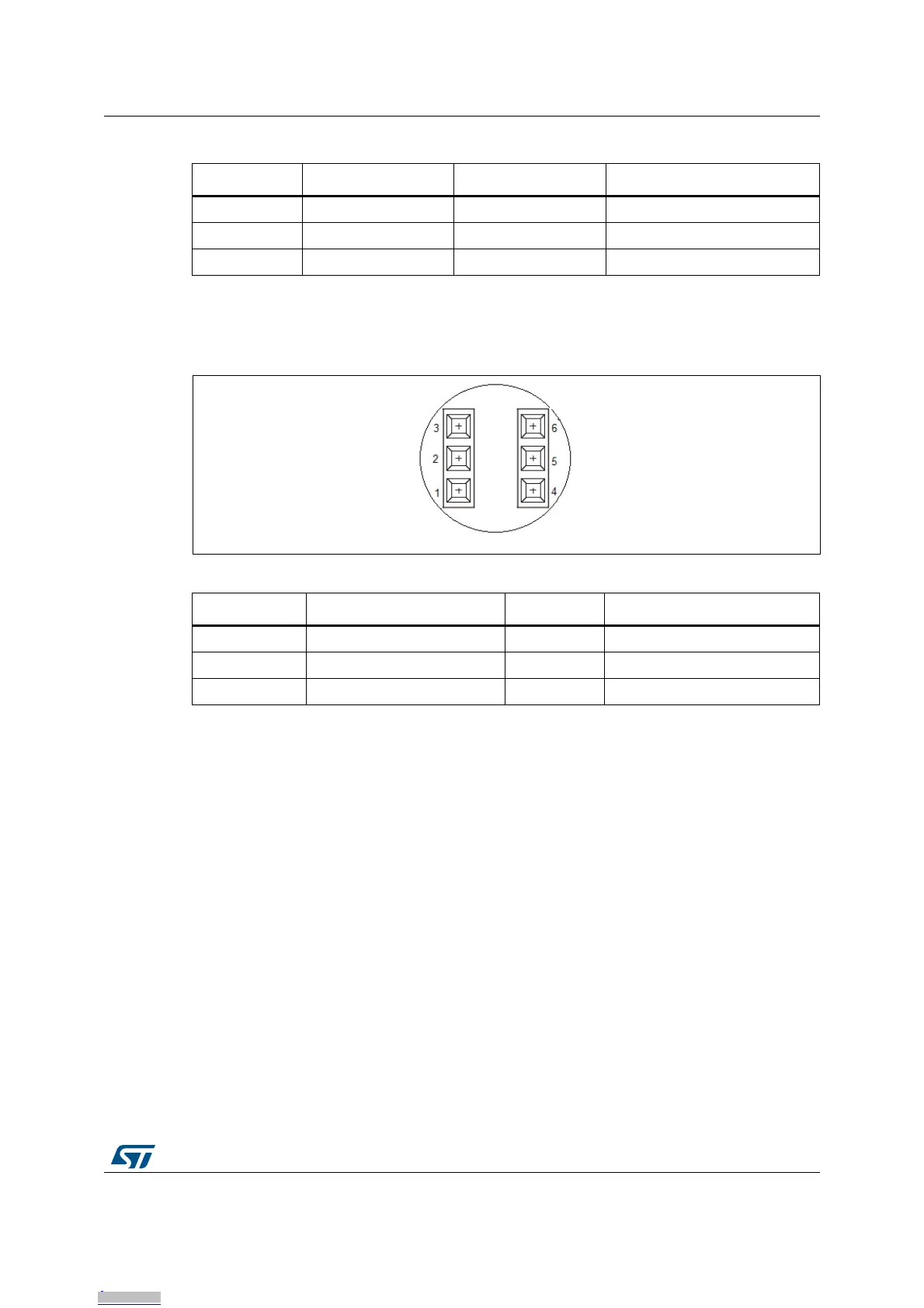

Figure 20. MEMS microphone coupon connectors CN25 and CN26 (top view)
Table 31. USB Micro-B connector CN23 (front view)
Pin number Description Pin number Description
1V
BUS
(power) 4 ID
2DM 5 GND
3DP - -
Table 32. 2.21 MEMS microphone coupon connectors CN25 and CN26
Pin number Description Pin number Description
1DATA4 V
DD
2GND5 L/R
3CLK6 NC
