ST STM32H753I-EVAL User Manual

DocID030512 Rev 1 39/69
UM2199 Connectors
68

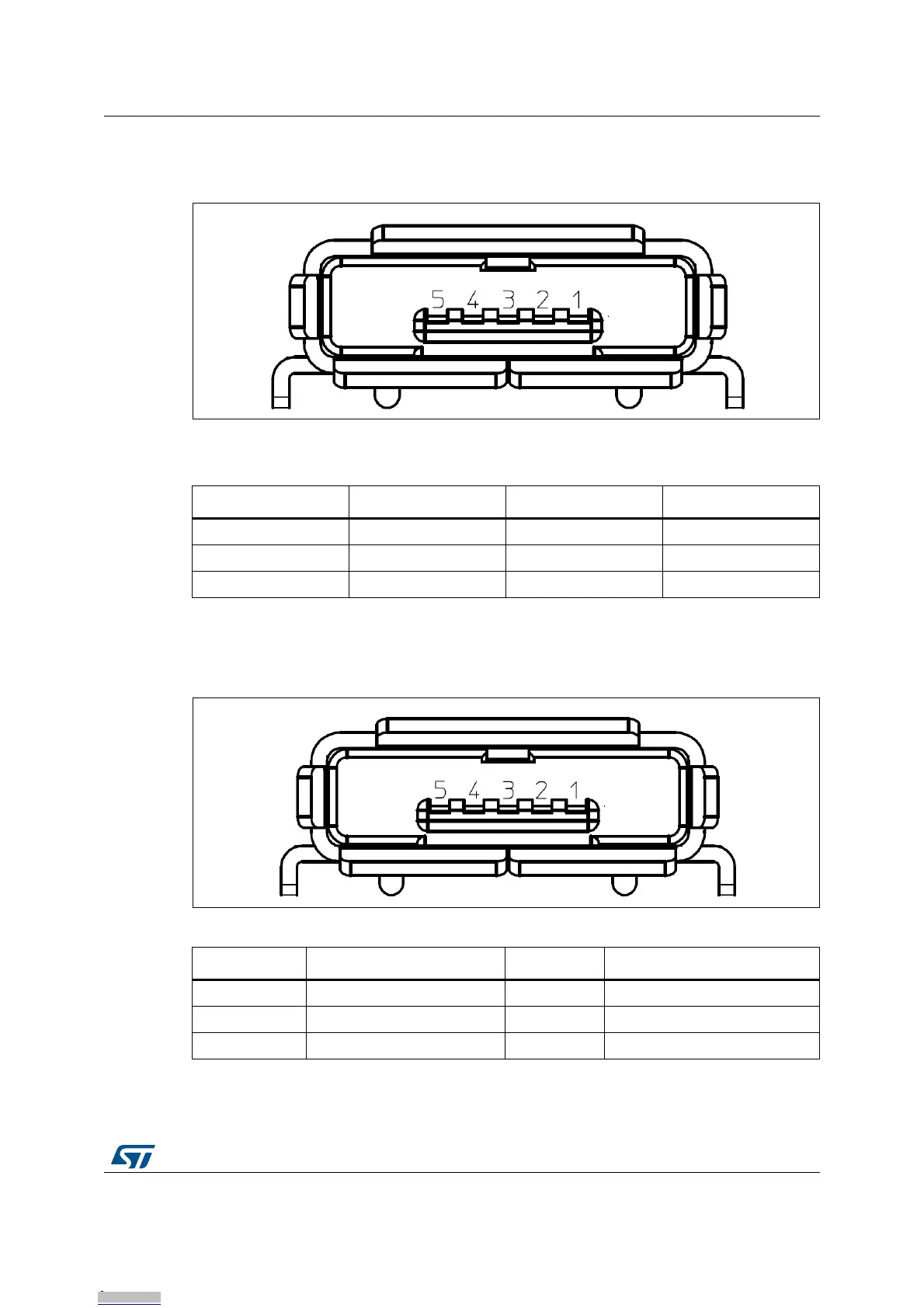

9.13 USB OTG2 FS Micro-AB connector CN16
Figure 17. USB OTG FS Micro-AB connector CN16 (front view)
9.14 USB OTG1 FS Micro-AB connector CN18
Figure 18. USB OTG FS Micro-AB connector CN18 (front view)
Table 29. USB OTG1 FS Micro-AB connector CN18
Pin number Description Pin number Description
1 VBUS (PB13) 4 ID (PB12)
2 D- (PB14) 5 GND
3 D+ (PB15) - -
Table 30. USB OTG1 FS Micro-AB connector CN18
Pin number Description Pin number Description
1V
BUS
(PA9) 4 ID (PA10)
2 D- (PA11) 5 GND
3 D+ (PA12) - -
