Model Number
Key LT1/6L LTACL LTADL LTAYDRL
No. Description Qty.
1
⁄6 HP
1
⁄2 HP
3
⁄4 HP
3
⁄4-
1
⁄8 HP
1 Motor 115V/60H/1 Ph.* 1 A800A16L A800CLL A800DLL A800DLL-Y
2 Slinger 1 C69-7 C69-7 C69-7 C69-7
3Seal Plate 1 C1-84P2 C1-84P2 C1-84P2 C1-84P2
4 Gasket 1 C20-31B C20-31B C20-31B C20-31B
5 Shaft Seal 1 U109-68SS U109-68SS U109-68SS U109-68SS
6A Shim (.010 Thick) As Required 2 C43-21D C43-21D C43-21D C43-21D
6B Shim (.029 Thick) As Required 2 C43-22D C43-22D C43-22D C43-22D
7 Impeller 1 C5-151P2 C5-151P1 C5-175P C5-175P
8 Volute 1 C101-247P C101-247P C101-247P C101-247P
9 Pipe Plug,
1
⁄4” NPT 1 WC78-40T WC78-40T WC78-40T WC78-40T
10 Capscrew, 10x
5
⁄8”9U30-871SS U30-871SS U30-871SS U30-871SS
11 Lockwasher 9 U43-22SS U43-22SS U43-22SS U43-22SS
12 Washer, Flat 9 U43-113SS U43-113SS U43-113SS U43-113SS
SERVICE PARTS
Seal and Gasket Kit 1 PP1075 PP1075 PP1075 PP1075
Overhaul Kit 1 PP1080 PP1081 PP1082 PP1082
Adapter, Union - 1-1/2” Slip 1 U11-183P U11-183P U11-183P U11-183P
Collar, Union 1 U11-182P U11-182P U11-182P U11-182P
O-Ring, Union 1 U9-226 U9-226 U9-226 U9-226
Adapter, Union - 1-1/4” MPT 1 U11-186P U11-186P U11-186P U11-186P
* For SK110 or SK220 Series Cabinet Spa, order Motor No. C218-221E.
NOTE: Includes quick disconnect Union Assemblies. Part No. U111-186p (2).
Contains 2 each of - U11-182P1, U11-183P1, U11-186P and U9-226.

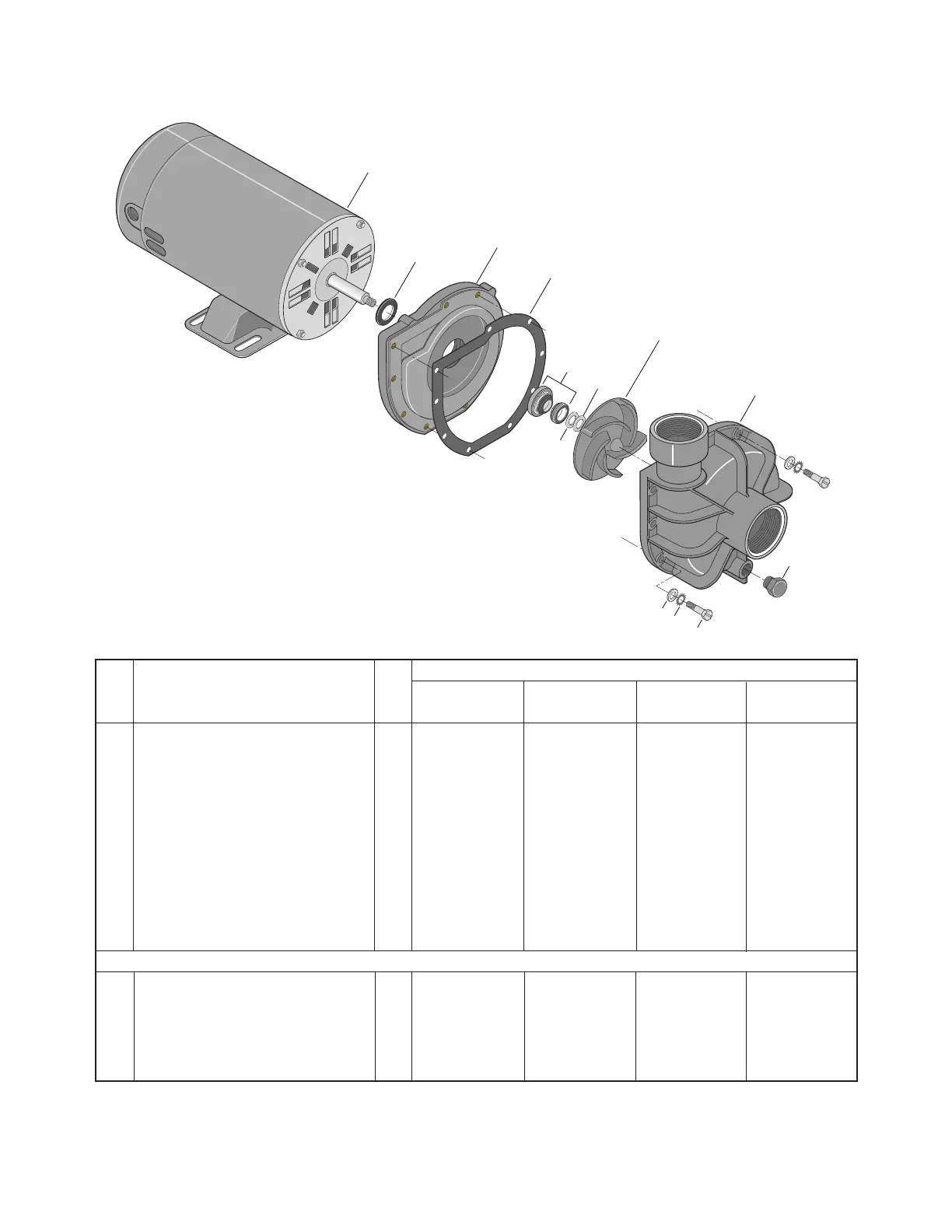

REPAIR PARTS LIST
LT SERIES
CENTRIFUGAL PUMP
