5.3 Setting the unit of measurement

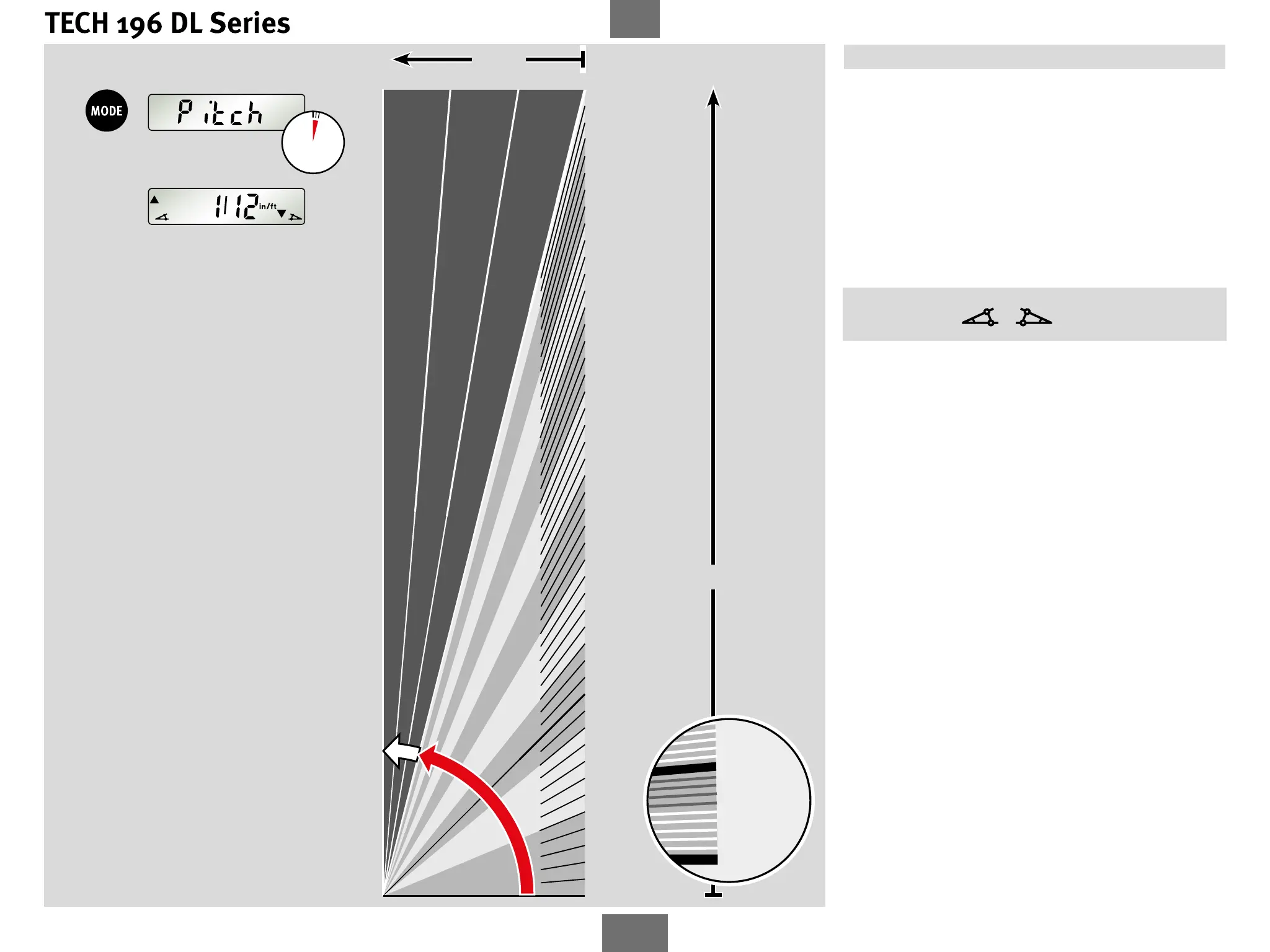

Roof pitch guidance
Roof pitch guide values for USA/Canada
Specifically for roof construction ( USA, Canada ), in Roof
Pitch Guidance mode the inclination is shown in steps of
1/12. Intermediate values are shown as decimals in in/ft.
As the inclination approaches the next roof pitch value,
this is also indicated by the acoustic guidance.
A continuous tone confirms the precise point at which the
roof pitch angle is reached.
MODE: Pitch
Display of roof pitch:
0
/
12
-
48
/
12
in +
1
/
12
steps
Display of roof pitch:
48
/
12
-
0
/
12
in −
1
/
12
steps
Display of intermediate values: in 0.1 in/ steps
2 sec
48/12
47/12
46/12
45/12
44/12
43/12
42/12
41/12
40/12
39/12
38/12
37/12
36/12
35/12
34/12
33/12
32/12
31/12
30/12
29/12
28/12
27/12
26/12
25/12
24/12
23/12
22/12
21/12
20/12
19/12
18/12
17/12
16/12
15/12
14/12
13/12
12/12 =
45.00°
11/12
10/12
9/12
8/12
7/12
6/12
5/12
4/12
3/12
2/12
1/12
0/12
0°
in/
0/12 1/12 2/12 3/12
+ 1/12
1.4 in/
1.2 in/
1/12
0.8 in/
0.6 in/
0.4 in/
0.2 in/
0/12
