3. Components and Functions
3. Components and Functions
3.2 LCD
LCD displays a current operating status of system and process steps
to user.

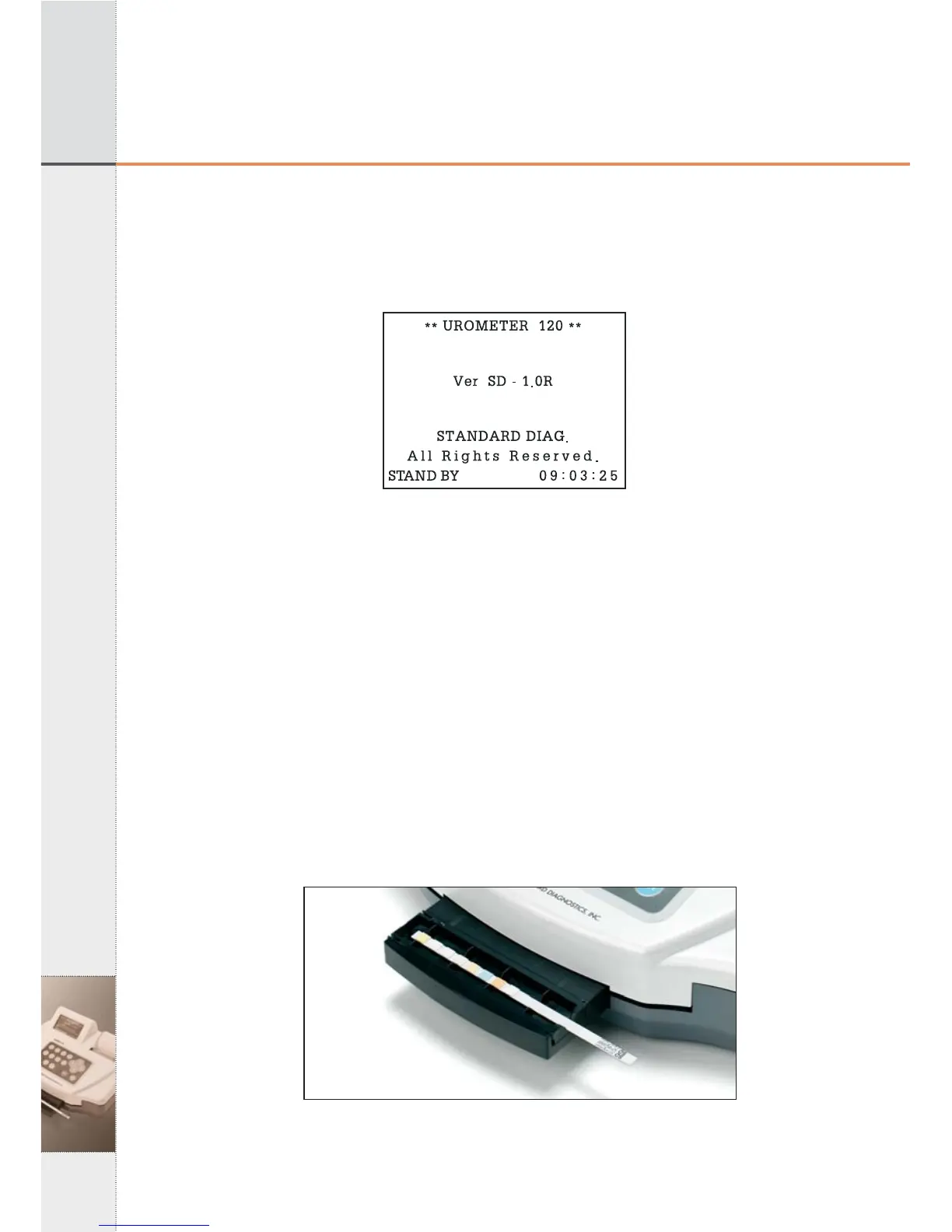

[Fig 3.2] LCD
3.3 Printer
UroMeter 120 displays test results by printing.
- Setting the ON/OFF printer mode, optionally.
- When the printing papers are almost consumed, if a red line around
the paper appears, replacement with a new printing paper should be
made.
3.4 Strip Loading Plate
Everytime pressing ENT key, "Stand By Mode" changes to "Quick
Mode", "Normal Mode" on LCD and loading plate comes out and
into the unit.
[Fig 3.3] Strip Loading Plate
