13.1. Installation of the casings K1200
Two configurations of casings can be installed on the K1200 unit,Oak and Flat. In order to assemble the casings, the installer must
have a star screwdriver (PH2 screw) available.
To assemble these models, it is necessary that each of the kits contain the following parts:
• Oak
Set of casings 2 Screws Din 7981 4,2x9,5 (CO0704132501019)

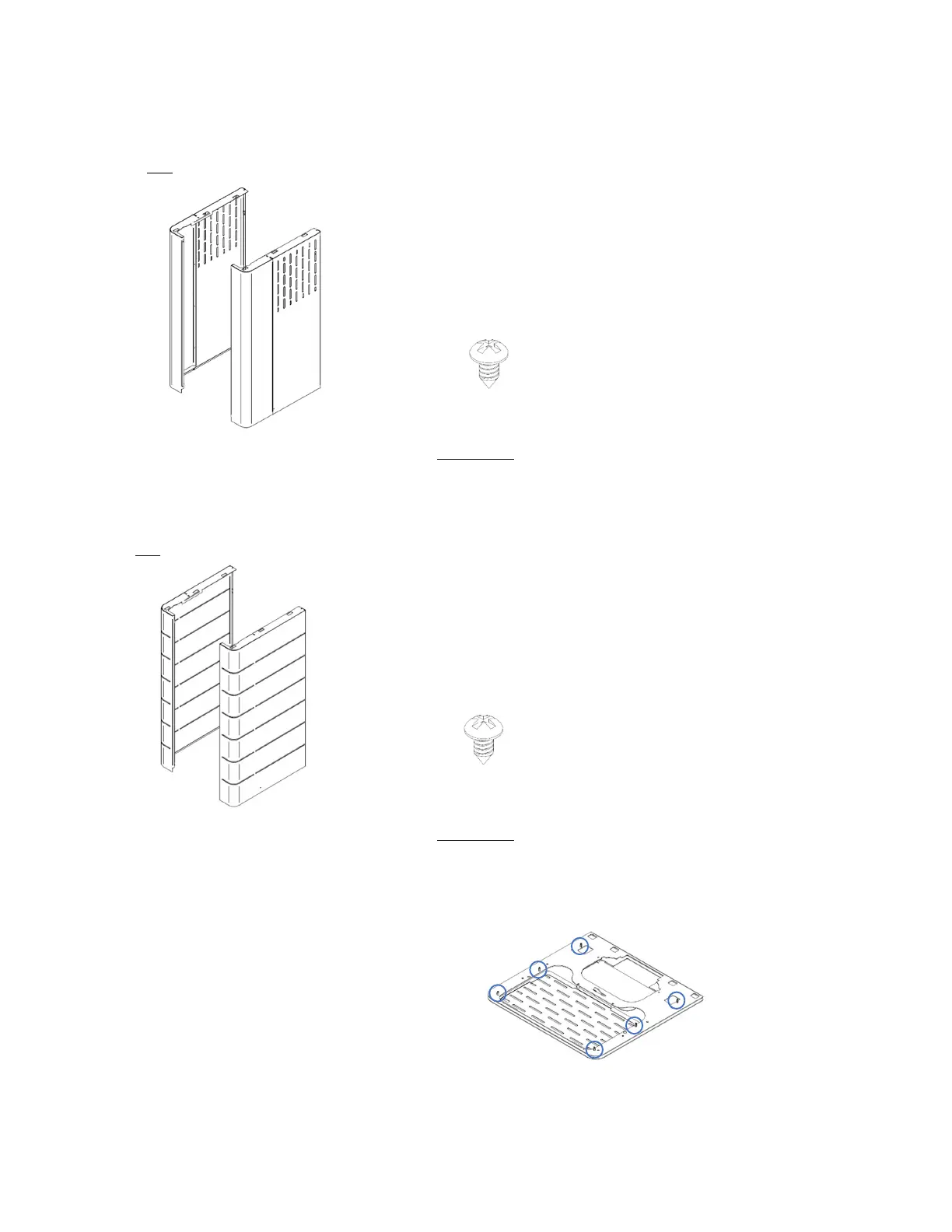

Figure 15 - Kit Oak
• Flat
Set of casings – chosen colour 2 Screws Din 7981 4,2x9,5 (CO0704132501019)
Figure 16 - Kit Flat
a) First remove the upper part of the equipment, undoing the pins (1) of the springs (2) existing in the structure by exerting force
in the upwards direction.
