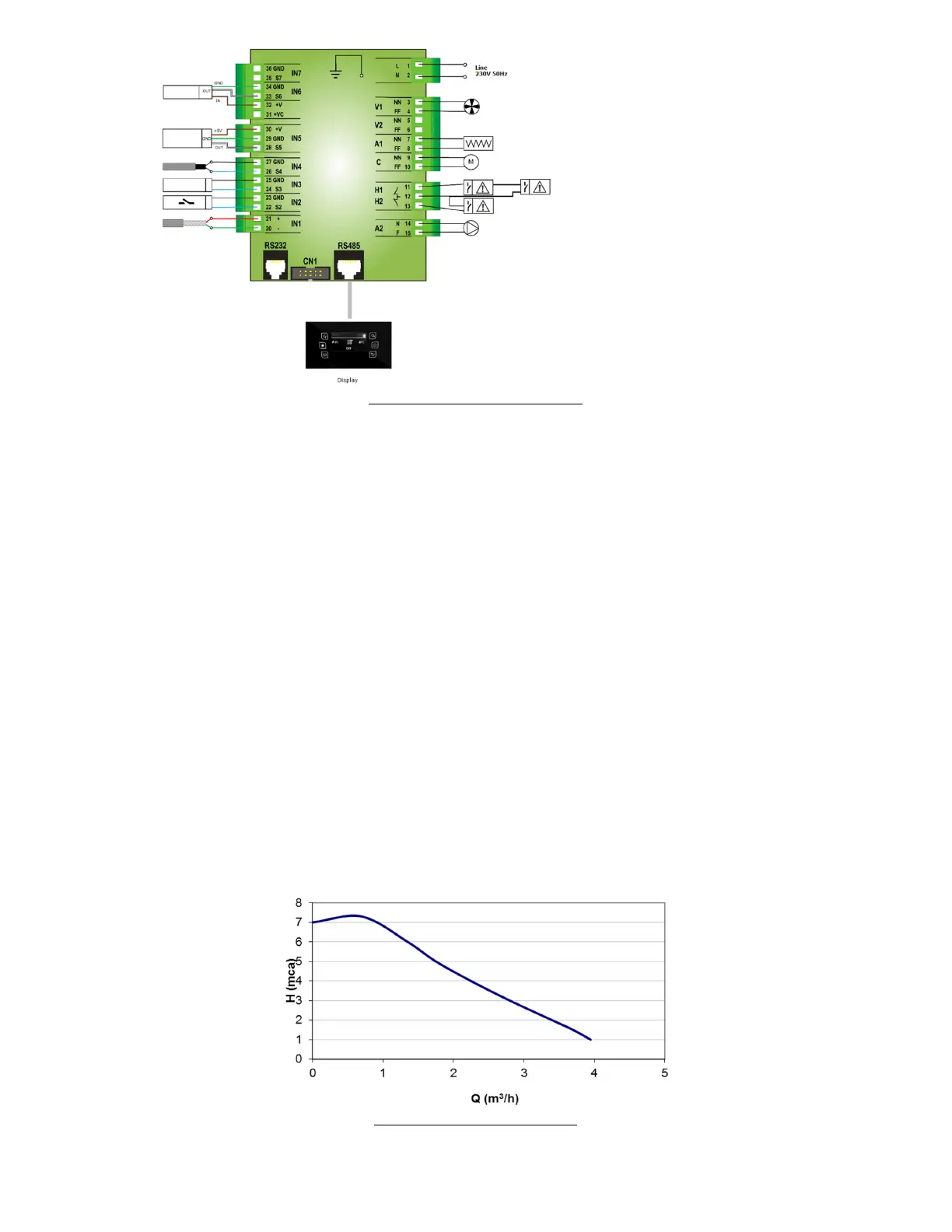

Figure 55 - Electrical diagram (Tiemme electronics)
21. Hydraulic Pumps
21.1. Pump UPM3 FLEX AS 15-70 130mm
Performance graph for the circulating pump
Figure 56 - Circulating pump performance graph
User interface
Pressure sensor
Fume extractor
encoder
Stove probe
Door microswitch
Room thermostat
Fume probe
Fume extractor
Resistance
Pellet feeder motor
Pump
P
ellet tank thermostat
Pressostat
Boiler
thermostat
Wi-Fi connection
