c) You should slide the side casing downwards during assembly and then tighten it using four DIN 7981 screws 4.2x9.5 (5). The
same procedure should be repeated for the two side casings.

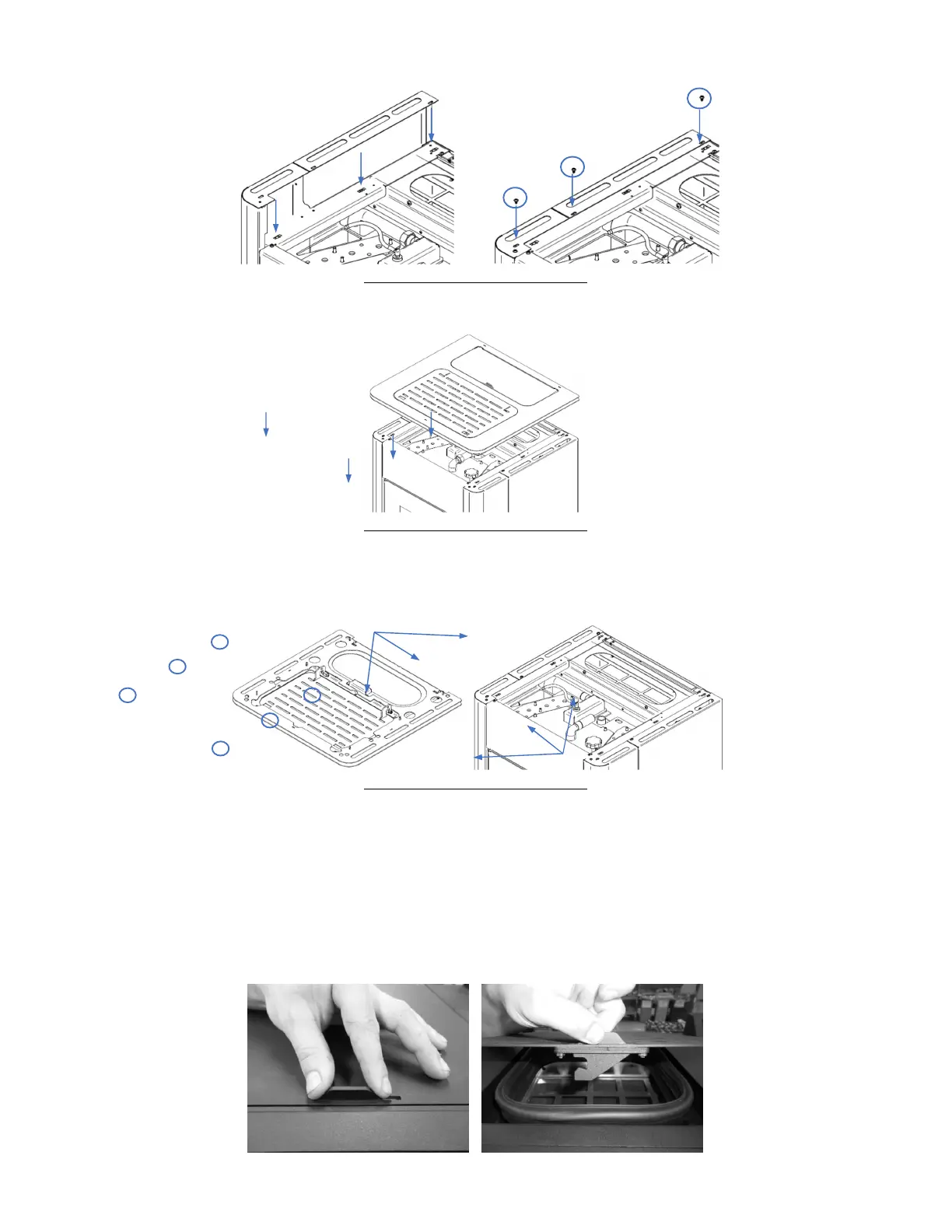

Figure 27 - Assembly of the casings K1700 and K2300
d) To finish, you must place the upper lid on top of the equipment.
Figure 28 - Assembly of the casings K1700 and K2300
To ensure that the worktop is fitted correctly, the worktop has six pins (6) at the bottom which must engage with the springs in
the frame (7). A small amount of force may be required to correctly engage the pins in the frame.
Figure 29 - Assembly of the casings K1700 and K2300
13.3. Pellet reservoir lid
The pellet reservoir is opened by sliding the bolt sideways (Figure 30-a) and lifting the lid (Figure 30-b).
a) b)
5
6
7
7
