MC521 PRO Control Box

10.21.2015

1.800.7.ACCESS • www.stanleyaccesstechnologies.com • Document # 204066 REV D2 21

or in part without the express written permission of Stanley is prohibited.

Attachment 2

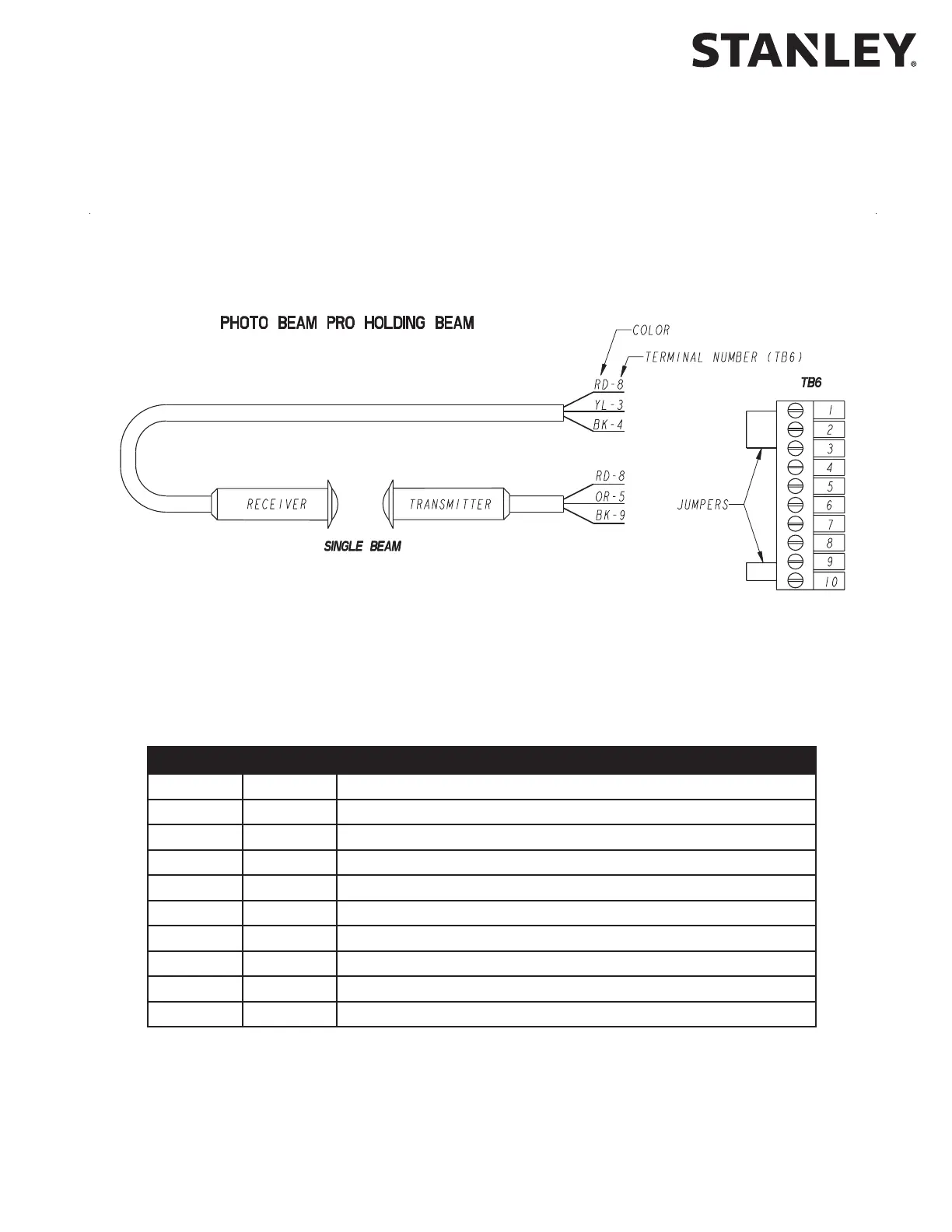

MC521 Pro System Wiring Diagram

(Sheet 6 of 6)

TB6 COLOR DUAL HOLDING BEAM WIRING

1 WH JUMPER FROM TB6-3

2 -- NO CONNECTION

3 YL, WH OUTPUT RECEIVER, JUMPER FROM TB6-1

4 BK (-) RECEIVER

5 OR TRANSMITTER CONTROL

6 -- NO CONNECTION

7 -- NO CONNECTION

8 RD (+) RECEIVER AND TRANSMITTER

9 BK (-) TRANSMITTER, JUMPER TO TB6-10

10 BK JUMPER FROM TB6-9
