– 19 –
28-1 01902028 SCREW TAT 2-4 1
28-2 04020010 STOP RING SE2.0 2
28-3 30510320 SPRING E038-030-0142 1
28-4 31382000 SHAFT A TMP8 1
28-5 32020040 LEVER PLATE TMP8 1
28-6 33400030 COVER OPEN LEVER TMP8 1 WHITE
33400050 COVER OPEN LEVER TMP8GRY 1 GRAY

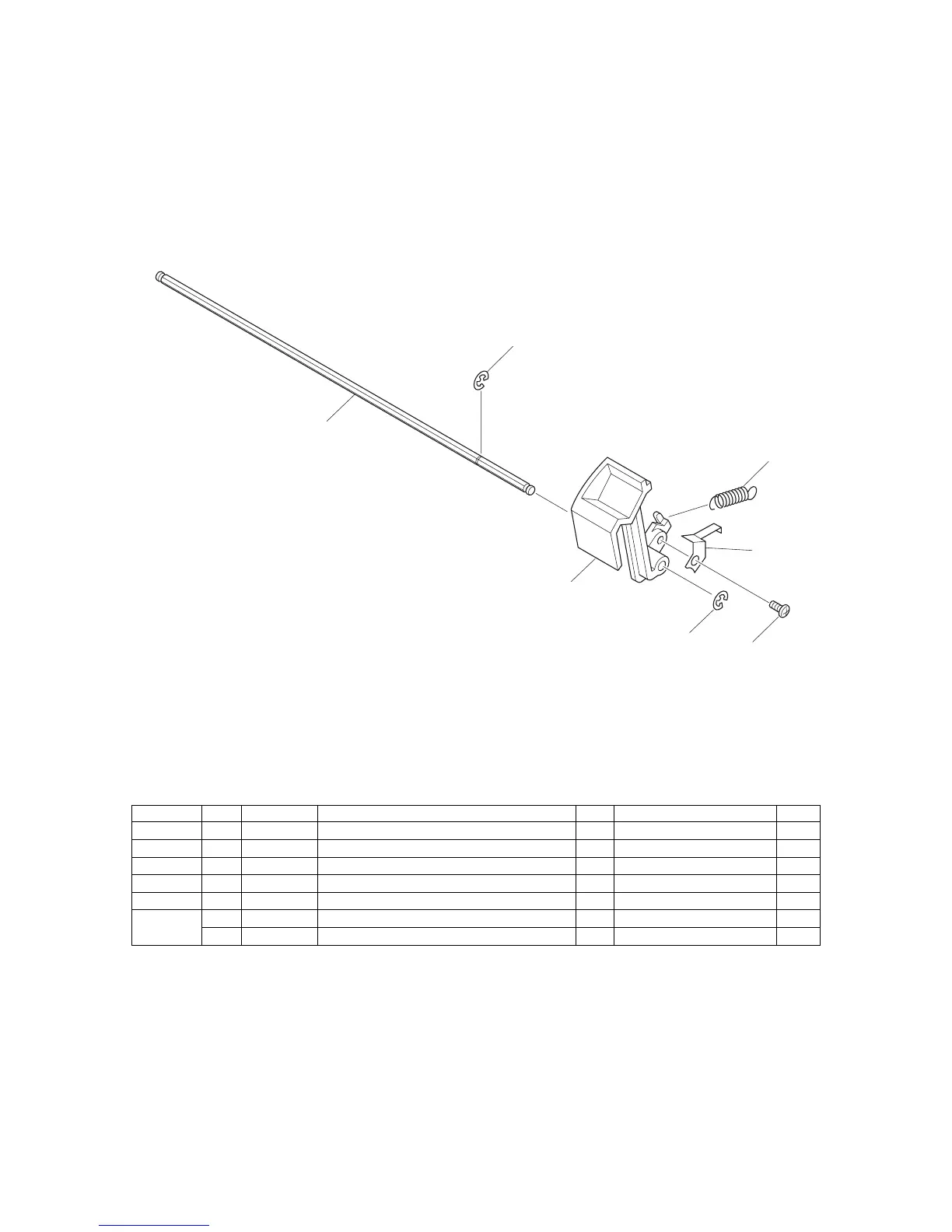

3-3. Sub-Assembly
3-3-1. Cover Open Lever Unit
DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK
2
4
2
1
6
3
5
28
-
