Star Micronics TSP800 Series Technical Manual

– 3 –

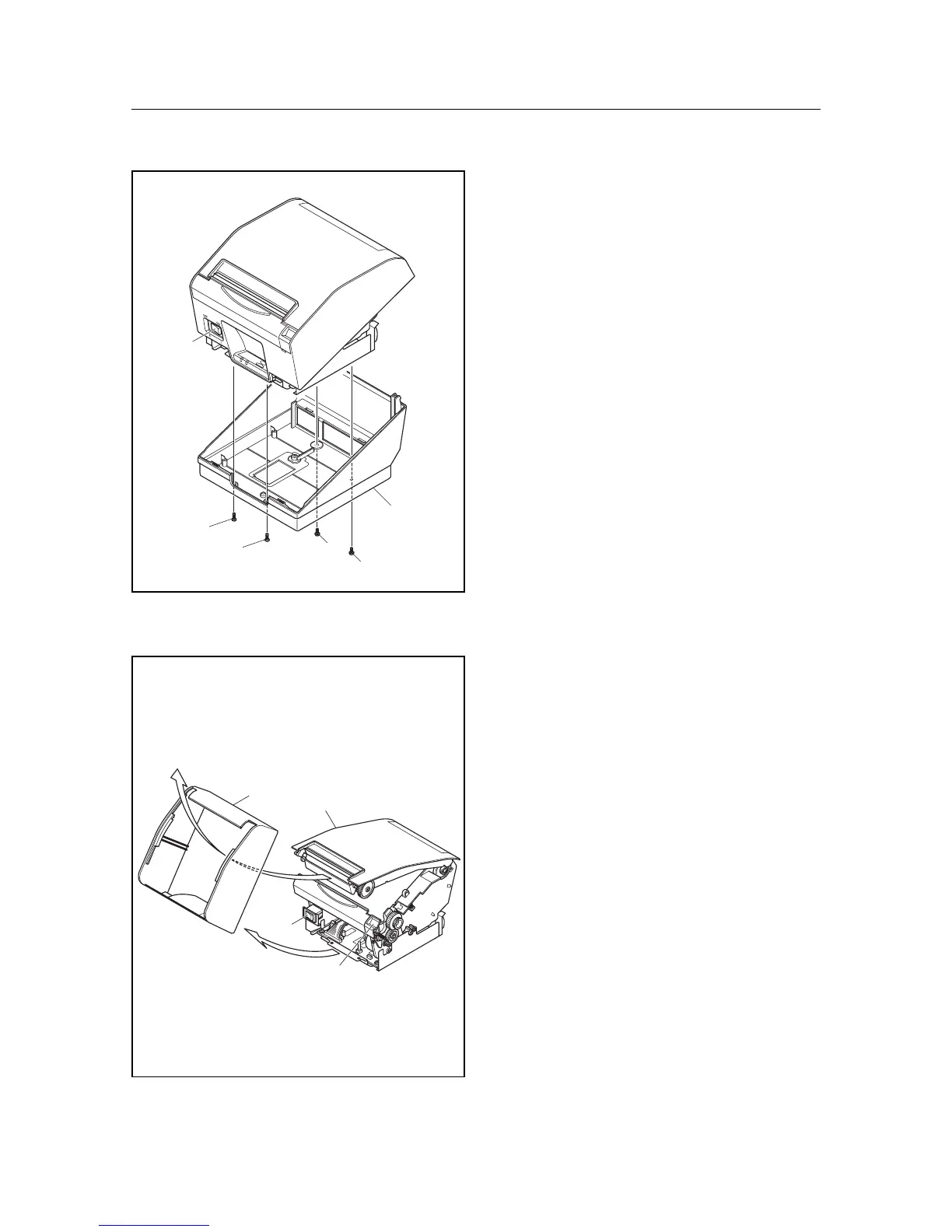

PARTS REPLACEMENT
1. Lower Case Unit
(1) Turn off the power switch 1, disconnect the power
cord from the wall outlet.
(2) Remove
• Two tapping screws 2
• Two tapping screws 3
• Lower case unit 4
2. Upper Case Unit
(1) Turn off the power switch1, disconnect the power
cord from the wall outlet.
(2) Remove the lower case unit according to the
procedure described in item 1.
(3) Push the cover open lever 2, and open the printer
cover 3.
(4) Remove the upper case unit 4.
4
3
23
2
1
4
3
2
1
