Star Micronics TSP800 Series Technical Manual

– 5 –
PARTS REPLACEMENT

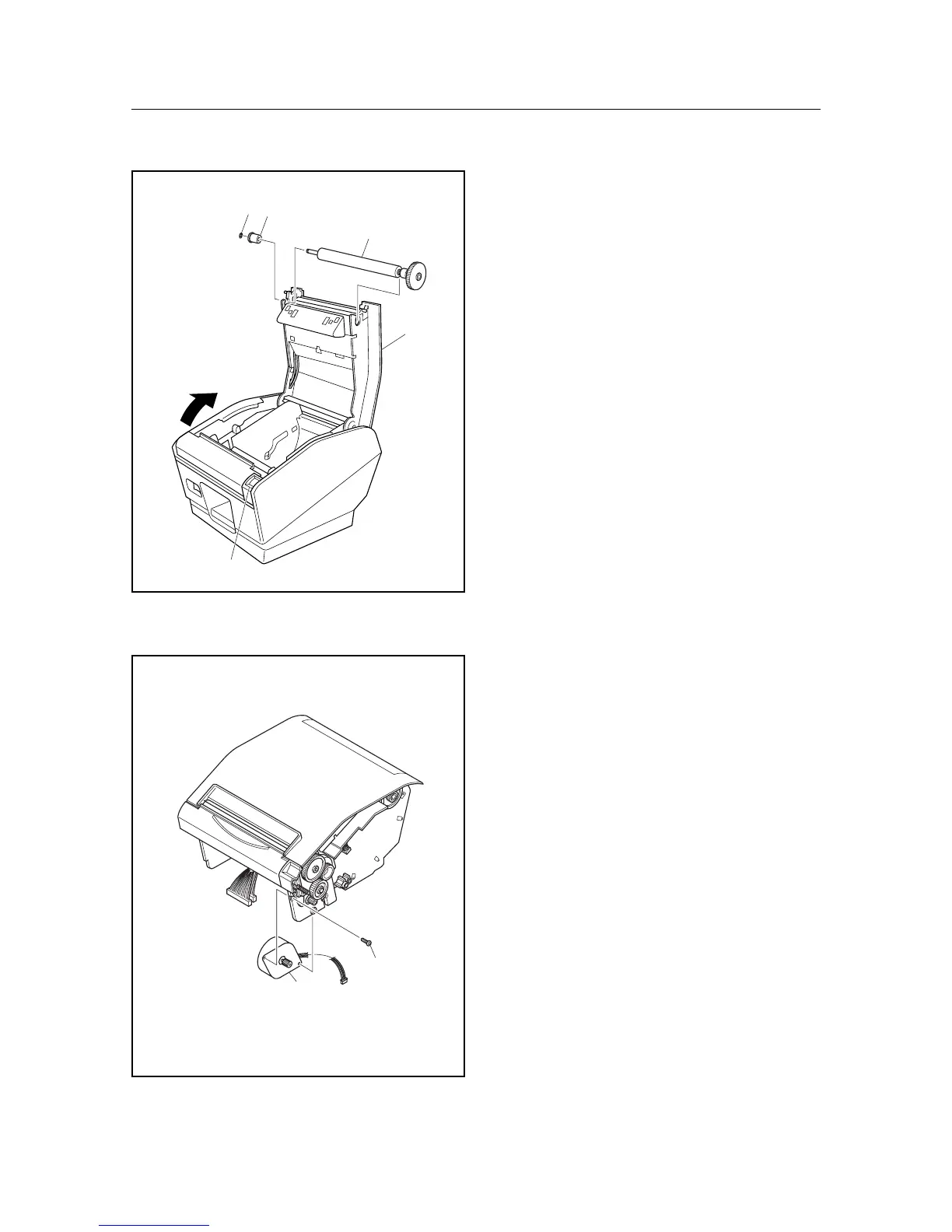

5. Platen Unit
(1) Turn off the power switch, disconnect the power
cord from the wall outlet.
(2) Push the cover open lever 1, and open the printer
cover 2.
(3) Remove
• Stop ring 3
• Bearing 4
• Platen unit 5
6. Paper Feed Motor
(1) Turn off the power switch, disconnect the power
cord from the wall outlet.
(2) Remove
• Printer mechanism according to the procedure
described in item 3.
• Screw 1
• Paper feed motor 2
1
2
3
4
5
2
1
