16

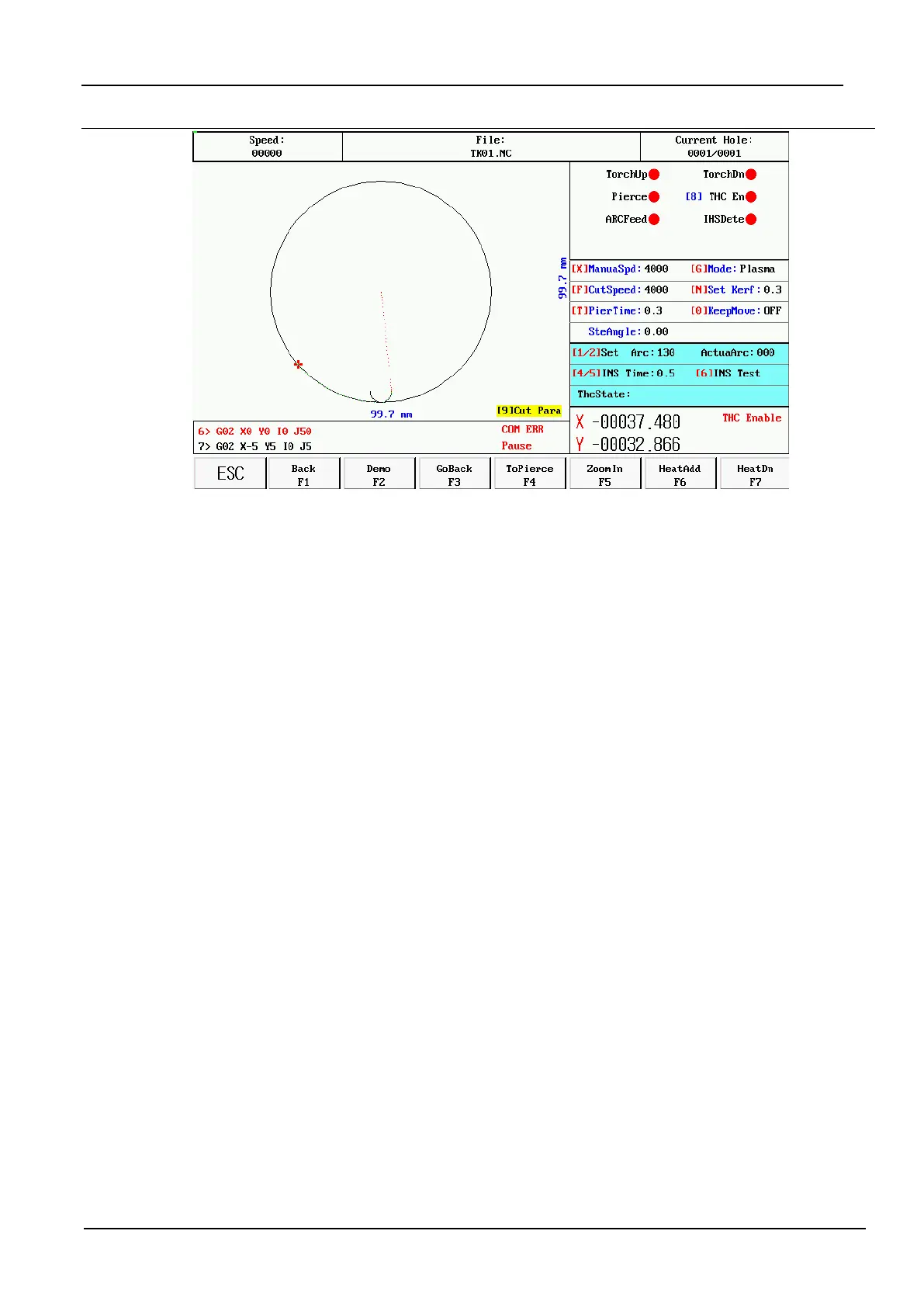

Pause, slow down the running system, the system shows "pause" tag, and presented the following figure.
Press 【F1】System to perform the original track back, back speed set in the parameter - speed - back.
Press 【F2】In the back, on the basis of the original trajectory.In the process of back, if do not meet the need of position,
can press 【 pause 】 again, repeat the above process, until it is right.
Meet G00 (arrived at a piercing point) back;
In the process of back, meet G00 suspended (reach a piercing point) system, the operator can choose is to continue to back,
or forward;
The operation of back to back
Back to the designated place,
For preheating, then press punch, began to processing
under the condition of the flame， cutting torch up, open oxygen , cutting torch down, system continues to run.
under the condition of plasma， arc open, wait for after the arc, the system to continue running.
The above operation can be repeated, until get the desired effect.
4.4 Breakpoints recovery and restore power
4.4.1. Breakpoints recovery
Power failure in the system for suspension or for processing, the system will automatically save the current cutting torch position
for a breakpoint.The breakpoint will be permanent, whether to turn it off or not.
1） automatic recovery, after the power switch on, the system will prompt the diagram below
