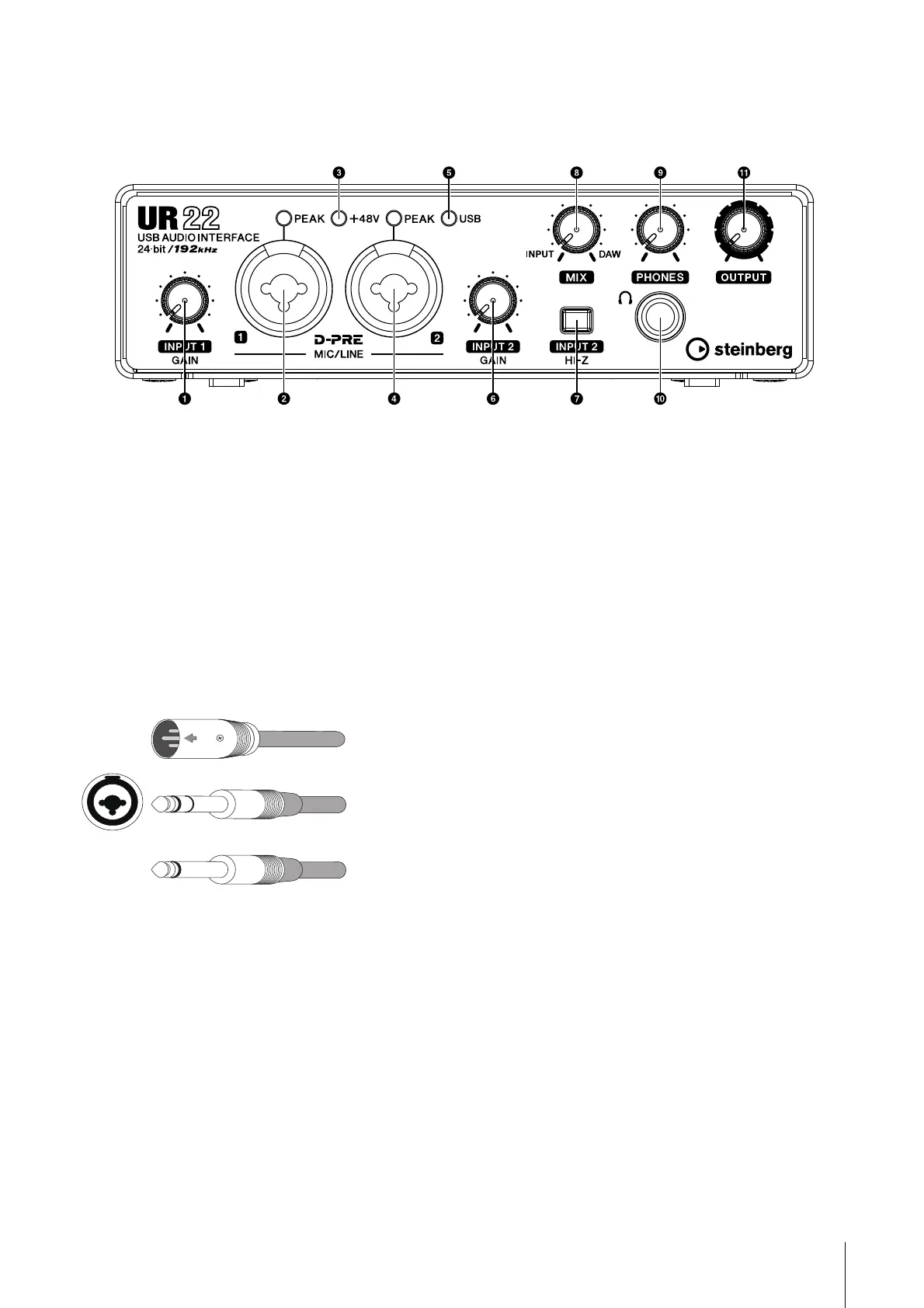

Front Panel
1 [INPUT 1 GAIN] knob
Adjusts the input signal level of the [MIC/LINE 1]
jack.
2 [MIC/LINE 1] jack/[PEAK] indicator
For connection to a microphone or digital
instrument. This jack can be connected to both
XLR-type and phone-type (balanced/
unbalanced) plugs. When connected to an XLR-
type plug, this jack automatically switches to
microphone input sensitivity, and when
connected to a phone-type plug, it switches to
line input sensitivity.
The [PEAK] indicator lights in response to the
level of input signal. To achieve optimum
recording levels, increase the input level with the
[INPUT GAIN] knob until the [PEAK] indicator
lights in red, then slowly bring the level down until
it stops lighting in red.
3 [+48V] indicator
The indicator lights when [+48V] switch (phantom
power) is turned on.
4 [MIC/LINE 2] jack/[ PEAK] indicator
For connection to a microphone, digital
instrument, electric guitar, or electric bass. This
jack can be connected to both XLR-type and
phone-type (balanced/unbalanced) plugs. When
connected to an XLR-type plug, this jack
automatically switches to microphone input
sensitivity, and when connected to a phone-type
plug, it switches to line input sensitivity.
The [PEAK] indicator lights in response to the
level of input signal. To achieve optimum
recording levels, increase the input level with the
[INPUT GAIN] knob until the [PEAK] indicator
lights in red, then slowly bring the level down until
it stops lighting in red.
5 [USB] indicator
The indicator lights when the UR22 is connected
to the computer via a USB cable and
communication with the computer is enabled.
6 [INPUT 2 GAIN] knob
Adjusts the input signal level of the [MIC/LINE 2]
jack.
7 [INPUT 2 HI-Z] switch
Switches the input impedance (ON
O/OFFN).
Turn this switch on when connecting high
impedance instruments, such as an electric
guitar or electric bass, directly to the [MIC/LINE
2] jack. When you turn this switch on, use an
unbalanced phone cable for connection between
the instruments and the [MIC/LINE 2] jack. If you
use a balanced cable or an XLR cable, this
device will not work correctly.
Phone-type
(unbalanced)
Phone-type
(balanced)
XLR-type
(balanced)
