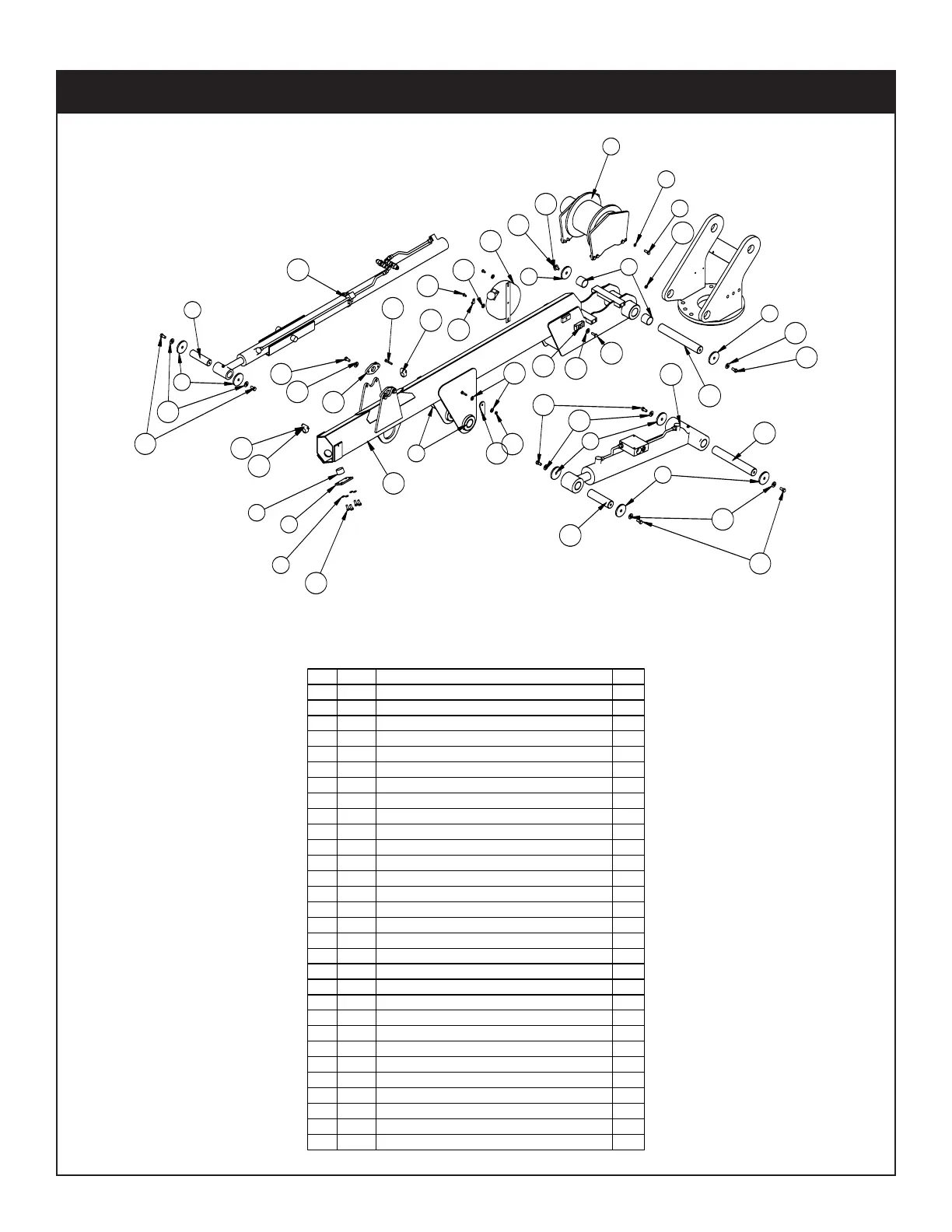

stellar labs 3315 - Main Boom Assembly - PN 20000

39Assembly Drawings 39
PN 20000
11
10
9
14
11
10
9
29
11
10
9
12
4
2
1
20
21
11
10
9
8
11
10
13
21
20
18
19
15
3
5
4
11
10
9
6
7
17
15
16
30
25
26
27
24
24
22
28
3
1
ITEM PART DESCRIPTION QTY.
1 19496 WEAR PAD .88X1.38 RND 2
2 19497
PLATE 1ST EXT 3315 WEAR PAD 2
3 19511
WINCH 1600 3315 CRANE 1
4 5591
WASHER 0.31 SAE FLAT YELLOW GR8 16
5 21170
CAP SCR 0.31-18X1.00 HHGR8 8
6 0067
BUSHING BPC-2426-24 1.50X1.50 2
7 16067
BUSHING QSI-2426-16 2
8 9086
PIN 1.25X4.69 D&T 1
9 7403
PIN CAP 0.44X2.50X.252 8
10
C6353 WASHER 0.38 FLAT GR8 12
11 9843
CAP SCR 0.38-16X0.75 HHGR8 12
12 0420
CAP SCR 0.31-18X0.75 HHGR5 8
13 3267
PLATE CYLINDER MTG 2
14 19514
PIN 1.50X5.50 D&T 1
15 0340
WASHER 0.25 FLAT 6
16 19881
PLATE ANGLE INDICATOR 3315 2
17 0333
NUT 0.25-20 HHGR5 NYLOC 2
18 11544
CORD REEL 6620 1
19 0478
CAP SCR 0.25-20X0.50 HHGR5 2
20 0337
HOSE CLAMP LN 4190 PP 2
21 0220
CAP SCR 0.25-20 X 1.50 HHGR5 2
22 24563
INNER BOOM 3315 REV A 1
24 19512
PIN 1.50X10.50 D&T 2
25 8622
CLAMP HOSE/TUBE AG-2 1
26 0343
WASHER 0.31 USS FLAT ZINC 1
27
C0922 CAP SCR 0.31-18X1.00 HHGR5 1
28
C5606 CLAMP 0.25 BLK VINYL 1
29 25676
CYLINDER ASM 3.00X19.88 1
30 25677
CYLINDER ASM 2.00X48.00 1
31 c1592
ZERK 1/8 NPT STRAIGHT 1
Main Boom Assembly - PN 20000
