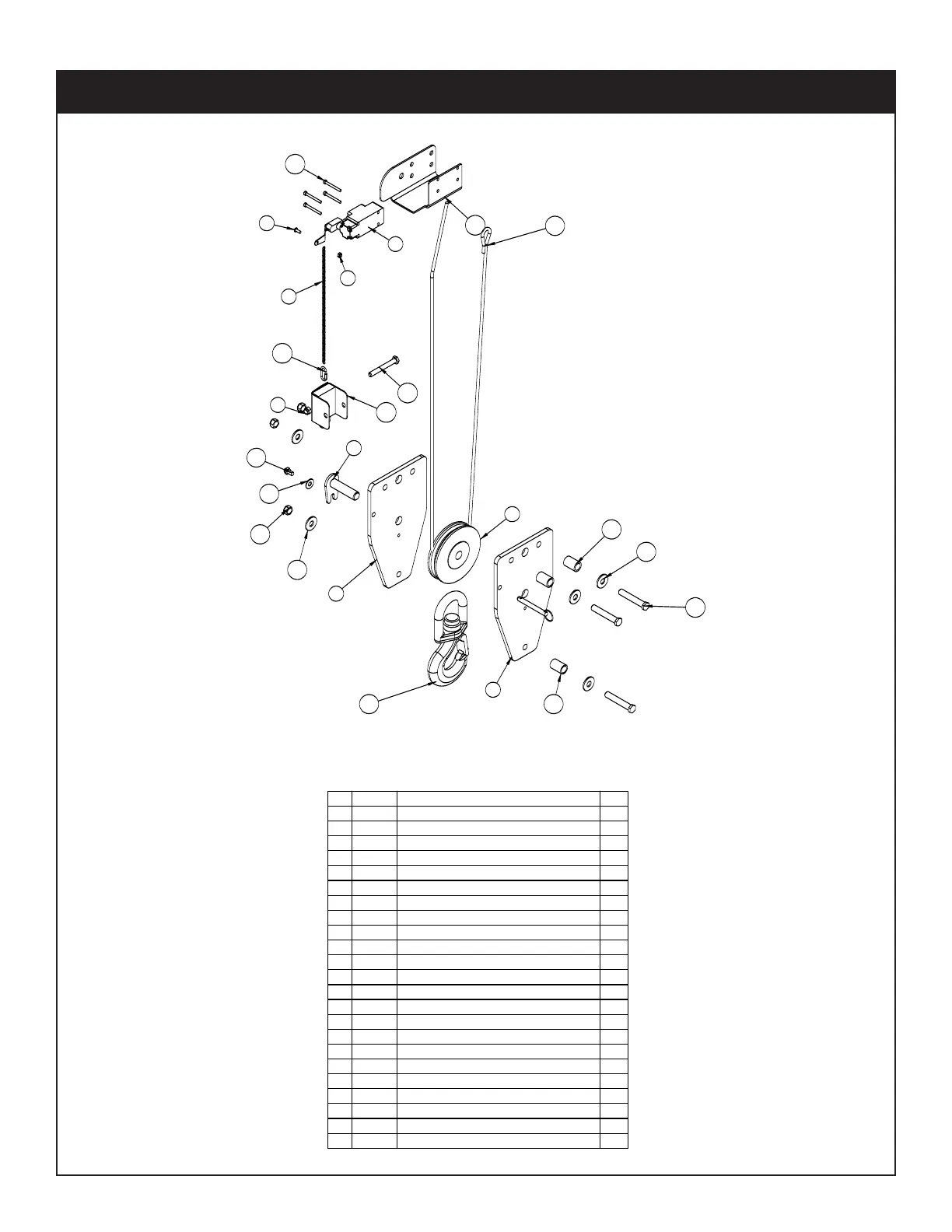

stellar labs 3315 - Cable & Hook Assembly - PN 20002

44 3315 Owner’s Manual
22
8
17
25
12
18
12
13
9
10
11
6
1
4
2
20
3
7
7
14
19
21
23
24
.YTQNOITPIRCSEDTRAPMETI
1 11938 SWITCH LIMIT A2B FURNAS 3SE3170 1
2D1711 CAP SCR #10-24X0.50 BTNHD SS 1
310972 CHAIN 0.105 (RM) 2607-21201 1
4C4956 NUT #10-24 HH NYLOC SS 1
6 0347 NUT 0.38-16 HH NYLOC 1
716495 PLATE 3515 SNATCH BLOCK 2
816494 SHEAVE 3515 5.25 DIA .25R/1.12 THK 1
919996 PIN TEAR DROP .75X2.88 1
10 0343 WASHER 0.31 USS FLAT ZINC 1
11 0484 CAP SCR 0.31-18 X 0.50 HHGR5 1
12 0352 WASHER 0.50 USS FLAT ZINC 6
13 5468 NUT 0.50-13 HHGR8 NYLOC 3
14 17006 WIRE ROPE 1/4 7X19 GAC 65FT 1
15 9263 PIN .38X3.00 QUICK RELEASE 1
17 25842 HOOK 3 TON SWIVEL CROSBY 1028618 1
18 27810 SPACER 3315 SNATCH BLOCK UHMW 2
19 16607 SPACER 3315 SNATCH BLOCK 1
20 33749 SCREW #10-24X1.75 SHGR8 ZINC 4
21 33081 COVER ANTI 2 BLOCK 1
22 35264PC WEIGHT ANTI 2 BLOCK 1
23 37850 CONNECTOR QUICK LINK 0.13 1
24 C0949 CAP SCR 0.38-16X3.00 HHGR5 1
25 0504 CAP SCR 0.50-13X3.00 HHGR5 3
PN 20002
Cable & Hook Assembly - PN 20002
