Operation
CDT Remote Feedback

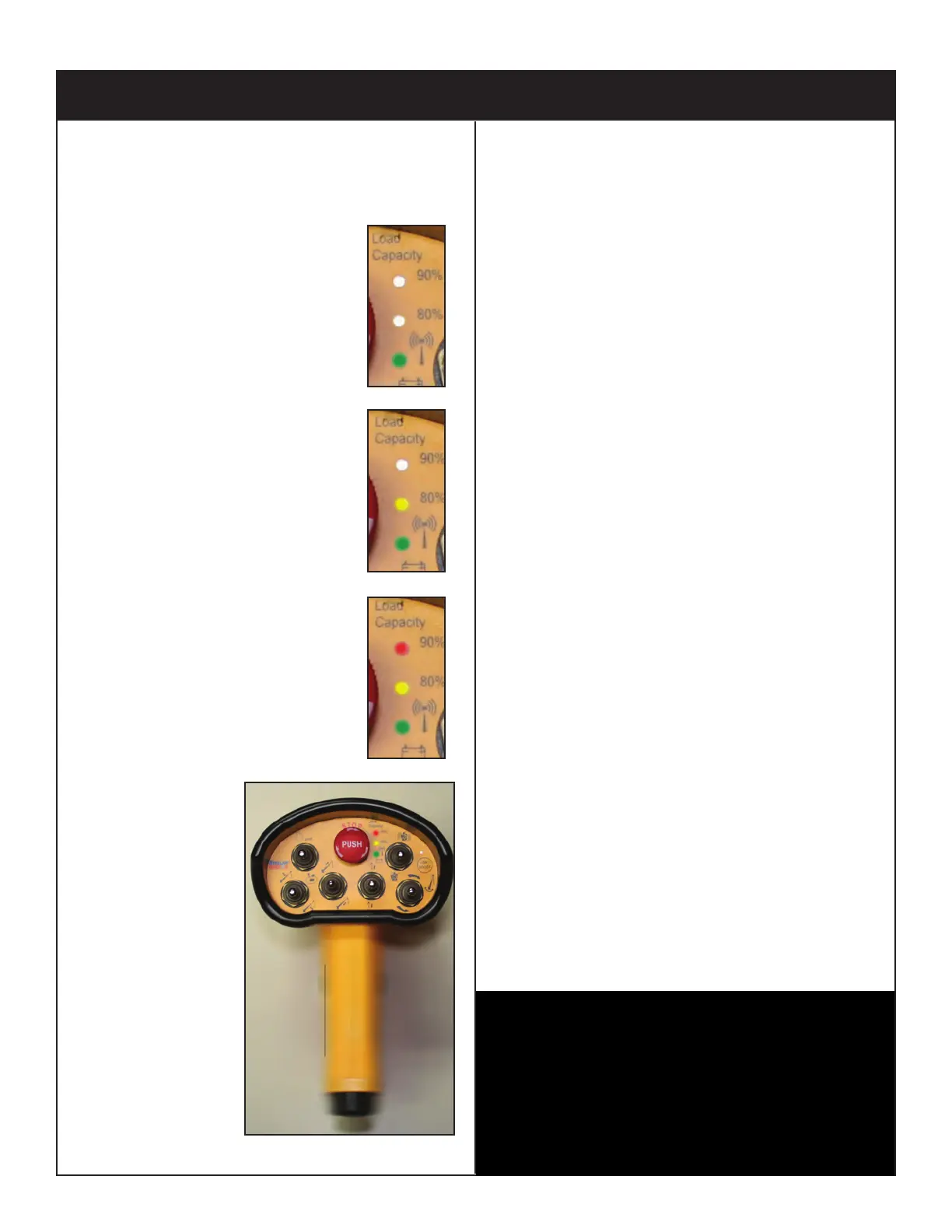

If the crane starts to approach full capacity
or an overload situation, the Stellar CDT
sensory feedback system will respond:
0-79% Capacity
LEDs: Green Steady
Vibration: None
System Function: Normal
80-89% Capacity
LEDs: Green Steady, Yellow
Flashing
Vibration: Short Pulsing
System Function: Normal
90-99% Capacity
LEDs: Green Steady, Yellow and
Red Flashing
Vibration: Long Pulsing
System Function: Normal
100% Capacity
LEDs: Green
Steady, Yellow
and Red
Alternate Flashing
Vibration: Long
Pulsing
System Function:
Overload
Shutdown.
When the crane reaches 100% capacity, an
overload shutdown will be initiated. The
operator will need to set the load down
and reposition the truck or activate the
Stellar CDT Boost Mode (If equipped).
Activating Boost Mode (If applicable)
Boost Mode allows the crane to operate at
118% of its rated capacity for 30 seconds.
This will give the operator adequate time to
move the crane out of the shutdown
condition without having to set the load
down and reposition the truck.
Follow the steps below to activate boost
mode:
1. Press and hold the Link/Boost Button for 5
seconds. This button is located on the
right side of the handheld controller. You
will know that boost mode is activated by
an indicator light located near the
boost/link button.
2. The crane will go from the ‘standard
mode’ to ‘boost mode’ for 30 seconds.
3. During this minute, the capacity of the
crane is increased to 118% of standard
capacity.
Note: Boost Mode can be reset multiple
times after a 15 second delay.
See the troubleshooting section of this
manual for information regarding
troubleshooting the Stellar® CDT Remote
System.
ATTENTION
If the 118% capacity boost is not
enough to temporarily suspend the
overload shutdown, the operator
will need to set the load down and
reposition the truck.
Radio Remote Feedback and Boost Mode
